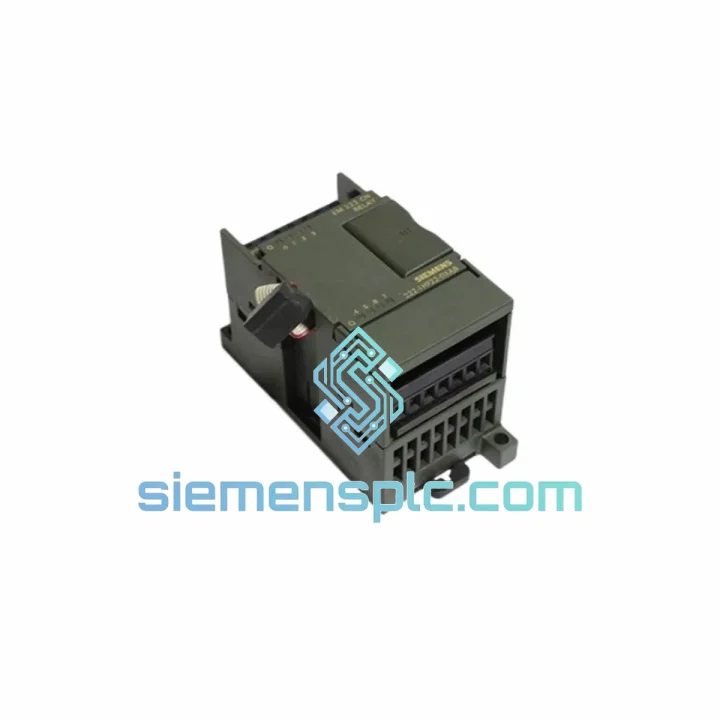

Siemens 6ES7222-1HF22-0XA8 Digital Output Module

6ES7222-1HF22-0XA8 Down? Every Minute of Downtime Has a Price Tag — We Ship Today

Your S7-200 line just tripped. The EM222 output module is dead. Maintenance is standing by, production is bleeding money, and your procurement team is scrambling. You don’t need a sales pitch — you need the part on a plane tonight. The Siemens 6ES7222-1HF22-0XA8 is in stock at our Xiamen warehouse. We cut the paperwork, pull the unit, and hand it to DHL the same day you order. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor taught me one thing: most EM222 failures are not random. They follow a pattern. Here’s what to check before you even pull the module, and what to watch when you drop the new one in.

Common Failure Signatures on the 6ES7222-1HF22-0XA8:

• SF LED solid red, outputs dead across all 8 channels: Classic internal transistor bank failure, usually triggered by a sustained overcurrent event — a shorted solenoid or a valve coil that welded closed. Don’t just swap the module; find and fix the load fault first or you’ll kill the replacement in under an hour.
• Intermittent output drop on channels Q0.0–Q0.3 only: Check the 24 VDC sensor supply rail. The EM222 draws from the CPU’s L+ terminal. If your CPU is also powering sensors, the rail can sag under load. Measure at the module connector under full load — anything below 20.4 V is a problem.
• Module recognized by CPU but outputs won’t switch: Nine times out of ten this is a wiring issue on the M terminal (common ground). Verify continuity between the module’s M and the field device ground. A floating M will block all transistor switching even though the module appears healthy in STEP 7 status.
• CPU reports I/O bus error after adding EM222: The S7-200 expansion bus is daisy-chained. If you’re adding this module to an existing chain, count your total expansion modules. CPU 224 supports up to 7 expansion modules; CPU 222 supports only 2. Exceeding the limit causes bus faults that look like hardware failures.

Step-by-Step Hot-Swap Replacement Procedure:

1. Power down the CPU and all field devices. The EM222 expansion connector is not hot-swappable. Attempting live removal risks damaging the CPU expansion bus interface — a far more expensive repair.
2. Photograph the wiring before disconnecting. The terminal block is removable. Pull it as a unit, label it, and set it aside. This saves 20 minutes on rewiring and eliminates transposition errors.
3. Inspect the expansion ribbon connector on both the CPU and the failed module. Look for bent pins, corrosion, or debris. A damaged connector on the CPU side means the new module will fail identically.
4. Seat the new 6ES7222-1HF22-0XA8 firmly. The side-mount expansion connector clicks into place. If it doesn’t click, don’t force it — check alignment. A partially seated module causes intermittent bus errors that are extremely difficult to diagnose.
5. Reconnect the terminal block. Power up the CPU. In STEP 7-Micro/WIN, go to PLC → Information → I/O Module Status. The EM222 should appear as configured with no fault bits set.
6. Force-test each output channel individually using the STEP 7 output force table before handing the machine back to production. Confirm field device response — don’t assume the wiring survived the fault event intact.
7. No firmware upload required. The EM222 carries no user-programmable firmware. The CPU manages all I/O mapping automatically. There are no DIP switches, no address jumpers, and no configuration tool needed for this module — it is purely plug-and-play within the S7-200 ecosystem.

Pro tip: If the replacement module shows the same fault within minutes of power-up, stop. The problem is upstream — overcurrent on the load side, a wiring short, or a failing CPU expansion bus. Swapping modules repeatedly without root-cause analysis is how a $200 repair turns into a $2,000 one.

Reliability in Harsh Conditions

The 6ES7222-1HF22-0XA8 was engineered for environments that would kill consumer-grade electronics in a week. The optocoupler isolation between the field side and the logic side isn’t just a spec on paper — it’s the reason this module survives when a solenoid coil dumps an inductive spike back into the output terminal. The transistor outputs are solid-state: no mechanical contacts to arc, no springs to fatigue, no contact resistance to drift over 10,000 switching cycles.

In food and beverage plants where washdown creates humidity spikes to 95% non-condensing, the IP20 housing keeps moisture off the PCB as long as the panel door stays closed — which is where it belongs during production. In steel mill auxiliary panels where ambient temperature runs 45–50 °C continuously, the module’s 55 °C upper operating limit gives you a real-world margin, not a theoretical one. Vibration resistance per IEC 68-2-6 means the module won’t develop intermittent connections on a press line or a compressor skid where the panel shakes at 10–57 Hz all day.

We store units in climate-controlled conditions at our Xiamen facility. Modules are not left on open shelves in uncontrolled warehouses. Every unit ships in original Siemens packaging with desiccant. What arrives at your site is in the same condition it left the factory.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This is not a coincidence. It means your emergency order moves fast.

Standard emergency shipment flow:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority. Tracking number issued within 4 hours of pickup.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days. These are real-world numbers from our shipment history, not carrier marketing copy.
• Documentation included as standard: Commercial invoice, packing list, certificate of origin, Siemens product datasheet. No extra charge, no waiting.
• Customs HS Code: 8537.10 — we pre-fill all export declarations. If your country requires additional documentation (Form E for ASEAN preferential tariff, EUR.1 for EU, or a specific import permit), tell us at order time and we handle it.
• Bulk orders: For quantities above 10 units or consolidated BOM orders, contact us for consolidated freight options. Sea freight from Xiamen to major ports in 7–14 days for non-urgent replenishment stock.

We’ve shipped to plant maintenance teams in Indonesia, Saudi Arabia, Germany, Brazil, and Nigeria — all on emergency timelines. The process works because we’ve done it hundreds of times and we don’t improvise on urgent orders.

Contact Information

When your line is down, don’t fill out a web form and wait 48 hours for a quote. Call us directly.

• 📧 Email: [email protected]
• 💬 WhatsApp: +86 18359268345
• 🌐 Web: siemensplc.com
