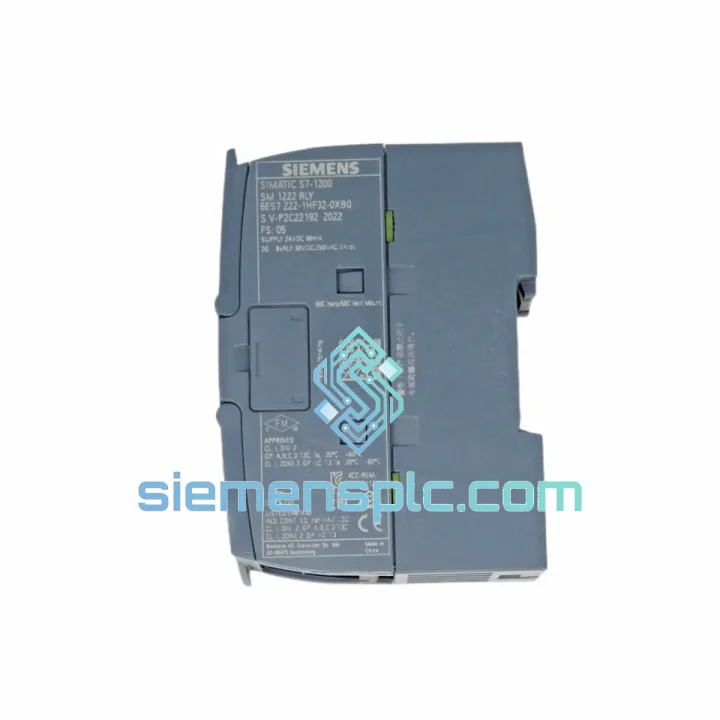

Siemens 6ES7222-1HF32-0XB0 Relay Output Module

Siemens 6ES7222-1HF32-0XB0 — Stop the Clock on Your Downtime

Every minute your line sits idle, you’re bleeding money. A failed relay output module on an S7-1200 rack doesn’t just halt one machine — it can cascade into a full production freeze. The Siemens 6ES7222-1HF32-0XB0 SM 1222 8DO Relay Output Module is the exact part you need, and we have it on the shelf in Xiamen right now. No lead-time negotiation. No waiting on distributor allocation. You call, we ship — same day.

This is not a refurbished unit. Not a grey-market pull. It is a 100% original Siemens SM 1222 series module, sourced through verified industrial supply channels, inspected before it leaves our warehouse, and packed for international express transit. Whether you’re in Southeast Asia, the Middle East, or Europe, DHL or FedEx will have it at your door before your maintenance window closes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 6ES7222-1HF32-0XB0 in the field is straightforward if you follow the sequence. Skip a step and you risk a CPU fault or a mis-addressed module that won’t come online.

Step 1 — Confirm the fault before you pull the module. In TIA Portal, open the Online & Diagnostics view for the CPU. Navigate to Diagnostics > Device diagnostics. A red X on the SM 1222 slot confirms the module has failed or lost communication. Common fault codes to look for:

• 0x0200 — Module missing or not responding. Power cycle the rack first; if it persists, the module is dead.
• 0x0201 — Module type mismatch. Someone may have swapped in a transistor output variant (1BF32) instead of the relay variant (1HF32). Check the label.
• 0x0203 — Internal module fault. No recovery possible — replace the unit.

Step 2 — Power down correctly. Remove 24 V DC field power from the output terminals first. Then remove the CPU supply. The SM 1222 has no internal fuse; live removal under load will arc the relay contacts and can damage the backplane connector.

Step 3 — Note the slot position. The S7-1200 uses automatic slot addressing — the CPU assigns I/O addresses based on physical position from left to right. If you reinstall the replacement in the same slot, TIA Portal will recognize it without a hardware configuration download. If the slot changes for any reason, you must download the updated hardware configuration to the CPU before going online.

Step 4 — Check firmware compatibility. The 6ES7222-1HF32-0XB0 (revision -0XB0) is compatible with all S7-1200 CPU firmware versions from V1.0 onward. No HSP update is required in TIA Portal. If your CPU is running firmware below V2.0, consider upgrading — several relay output diagnostic features are only available from V2.0 upward.

Step 5 — Verify relay output wiring before energizing. The SM 1222 8DO uses a common terminal (1M, 2M) shared across groups of 4 outputs. Confirm your field wiring matches the terminal diagram in the module’s front label. Reversed polarity on DC loads won’t damage the relay contact, but it will prevent the load from operating and waste your troubleshooting time.

Step 6 — Force outputs in TIA Portal for functional verification. Before handing back to operations, use the Watch and Force Tables to force each of the 8 outputs ON individually. Listen for the relay click and verify continuity with a multimeter across the output terminals. This takes four minutes and eliminates any callback risk.

Common field mistake: Technicians sometimes replace the SM 1222 relay module with the SM 1222 transistor variant (6ES7222-1BF32-0XB0) because it looks identical externally. The transistor version cannot switch AC loads and will fail silently on 230 V AC contactor coils. Always verify the middle characters of the part number: 1HF32 = relay, 1BF32 = transistor.

Reliability in Harsh Conditions

Industrial panels are not server rooms. The SM 1222 is engineered for environments that would destroy consumer-grade electronics within weeks. The relay contacts are rated for 10 million mechanical operations — at a switching rate of once per second, that’s over 115 days of continuous operation before the first wear threshold. Electrical life at full rated load (2 A resistive) is 100,000 operations, which in most process applications translates to years of service before contact erosion becomes a concern.

The module’s operating temperature ceiling of +55 °C covers the vast majority of industrial panel installations, including those in tropical climates without air conditioning. Internal conformal coating on the PCB provides resistance to condensation and airborne contaminants — a critical factor in food processing, coastal, and chemical plant environments where humidity regularly exceeds 90% RH.

Vibration resistance meets IEC 61131-2 requirements: 5–8.4 Hz at 3.5 mm amplitude, 8.4–150 Hz at 1 g. This covers standard DIN rail panel installations on machinery with significant mechanical vibration, including presses, compressors, and conveyor drive frames. The DIN rail latch mechanism is spring-loaded and does not loosen under sustained vibration — a failure mode common in cheaper third-party modules.

EMC immunity is tested to EN 61000-4 series standards, including 4 kV contact discharge and 8 kV air discharge (IEC 61000-4-2), and 10 V/m radiated immunity (IEC 61000-4-3). In environments with variable-frequency drives, welding equipment, or large motor starters nearby, this immunity level is the difference between stable operation and nuisance faults that waste hours of diagnostic time.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian, China — one of the most logistics-connected cities on the southeast coast, with direct access to Xiamen Gaoqi International Airport and major port facilities. This geography is not accidental. It puts us within one DHL or FedEx flight of every major industrial hub in Asia, the Middle East, and Europe.

Standard express timeline from order confirmation:

• Order cut-off: 15:00 CST. Orders confirmed before cut-off ship same business day.
• Southeast Asia (Singapore, Thailand, Vietnam, Indonesia): 2–3 business days via DHL Express or FedEx International Priority.
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via DHL Express.
• Europe (Germany, Netherlands, UK, Poland): 3–5 business days via FedEx International Priority or DHL Express.
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority.
• Australia & New Zealand: 3–5 business days via DHL Express.

Every shipment includes a full commercial invoice, packing list, and Siemens certificate of origin — the documentation your customs broker needs to clear the shipment without delay. For customers in countries with import duty exemptions on industrial automation components, we can structure the invoice accordingly. HS code for this module: 8537.10.

Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email. For urgent shipments, WhatsApp notification is available on request — you’ll know the moment your package is airborne.
