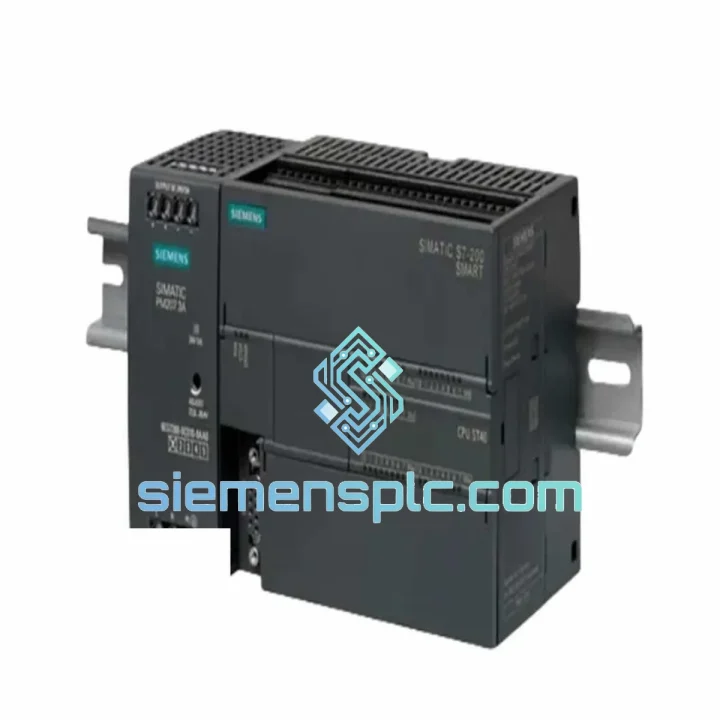

Siemens 6ES7223-1PM22-0XA8 Digital I/O Module – S7-200 SMART

Siemens 6ES7223-1PM22-0XA8 — 8-Channel Digital I/O Expansion Module for S7-200 SMART Control Systems

The 6ES7223-1PM22-0XA8 is a compact digital combination I/O expansion module within the SIMATIC S7-200 SMART product family. It provides 8 discrete 24 VDC inputs and 8 transistor-type 24 VDC source outputs on a single 45 mm DIN-rail body, extending the native I/O capacity of any S7-200 SMART CPU without additional bus couplers or communication overhead. The module connects directly to the CPU’s integrated expansion bus, transferring I/O data within the CPU scan cycle at backplane speeds — no fieldbus latency, no address mapping complexity.

In a control loop context, this module occupies the field interface layer: it receives discrete sensor signals (proximity switches, photoelectric sensors, pushbuttons, pressure switch contacts) on its input side, and drives actuator loads (solenoid valves, motor contactors, indicator lamps, relay coils) on its output side. Because the outputs are solid-state PNP transistors rather than relay contacts, switching response is sub-millisecond and mechanical wear is eliminated — a measurable advantage in high-cycle applications such as packaging indexers or pneumatic press sequences where output switching frequency can exceed 10 Hz continuously over multi-year service intervals.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The input circuit of the 6ES7223-1PM22-0XA8 uses a two-stage optical isolation barrier. Each input channel passes through a current-limiting resistor network before driving an optocoupler LED. The phototransistor output feeds a Schmitt-trigger threshold comparator, which eliminates signal bounce and provides defined switching hysteresis — typically 3 V between the ON threshold (≥15 V) and OFF threshold (≤5 V). This architecture rejects common-mode noise injected on long cable runs from field sensors, a frequent failure mode in environments with variable-frequency drives operating in the same cable tray.

On the output side, each channel uses a MOSFET power transistor with integrated freewheeling diode clamping. When an inductive load (solenoid coil, relay coil) is de-energized, the stored magnetic energy is dissipated through the clamp diode rather than appearing as a voltage spike on the 24 VDC bus. This protects adjacent modules and the CPU power supply from transient overvoltage events that would otherwise exceed the 36 V absolute maximum rating of the backplane logic ICs. The output stage also incorporates thermal shutdown and short-circuit current limiting — if output current exceeds approximately 1.5 A (double the rated 0.75 A), the driver enters a current-fold-back mode and asserts a diagnostic bit readable by the CPU program, enabling fault-state logic without nuisance tripping.

The backplane interface uses a proprietary Siemens serial expansion bus operating at 187.5 kbps. The module’s local ASIC latches input states at the start of each CPU scan and presents output states written by the CPU at the end of the scan — maintaining I/O consistency within a single program cycle. This deterministic behavior is essential for interlocked sequences where an output state must reflect the input conditions sampled in the same scan, not a previous one.

EMC performance is achieved through a combination of hardware measures: the PCB ground plane is split between the field-side (24 VDC) and logic-side (5 VDC) domains, with the isolation barrier forming the boundary. Ferrite beads on the backplane connector pins suppress high-frequency conducted emissions. The module housing is a flame-retardant thermoplastic with internal metal shielding clips that bond to the DIN rail ground, providing a low-impedance path for capacitively coupled RF interference to chassis earth — compliant with EN 61000-4-3 (radiated immunity, 10 V/m) and EN 61000-4-4 (EFT/Burst, 2 kV).

System Integration Benefits

• Zero-configuration bus attachment: The module is recognized automatically by the S7-200 SMART CPU during power-up enumeration. STEP 7-Micro/WIN SMART assigns I/O addresses sequentially based on physical slot position — no manual address assignment or DIP switch configuration required.
• Scalable I/O architecture: Up to 6 expansion modules can be chained from a single CPU, yielding a maximum of 48 additional digital I/O points per expansion chain. Mixed module types (analog, digital, thermocouple) are supported in any order.
• Deterministic scan-cycle I/O refresh: Input data is captured at the start of each CPU scan; output data is written at the end. This synchronous model eliminates mid-scan I/O state changes that could cause logic inconsistencies in interlocked sequences.
• Integrated diagnostic transparency: Short-circuit and overload conditions on output channels set status bits in the CPU’s I/O image table. The application program can read these bits and execute fault-handling routines — alarm annunciation, safe-state output forcing, or HMI notification — without external diagnostic hardware.
• High-cycle output endurance: Transistor outputs rated for >10 million switching operations eliminate the contact wear and arc erosion associated with relay output modules in high-frequency applications such as pneumatic valve cycling or conveyor diverter control.
• Broad sensor compatibility: Inputs accept both PNP (sourcing) and NPN (sinking) 2-wire and 3-wire sensors. The IEC Type 1/3 input specification ensures compatibility with the majority of industrial proximity sensors, photoelectric sensors, and limit switches without additional signal conditioning.
• Thermal operating margin: The 0–55 °C operating range covers unair-conditioned factory environments in tropical climates. Horizontal DIN-rail mounting is the standard orientation; vertical mounting is permissible with a 10 °C derating to 45 °C maximum.
• Backward revision compatibility: The -0XA8 hardware revision is fully backward-compatible with earlier -0XA0 production units. Replacement in existing installations requires no program modification, no re-addressing, and no firmware update to the CPU.
• Compact panel footprint: At 45 mm wide, the module occupies 30% less DIN-rail space than equivalent relay output expansion modules, reducing enclosure size and associated material costs in OEM panel builds.
• Unified programming environment: All S7-200 SMART expansion modules are configured and monitored within STEP 7-Micro/WIN SMART — a single software tool covering program editing, I/O configuration, online diagnostics, and data logging. No separate configuration utility is required for this module.

Quality Assurance & Global Logistics

Every 6ES7223-1PM22-0XA8 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and carries Siemens’ original factory packaging, holographic authenticity label, and production date code. Pre-shipment inspection covers visual integrity of the housing and connector block, label and date-code verification, and anti-static packaging with humidity indicator card.

Shipments originate from our warehouse in Xiamen, China. Standard international express delivery via DHL, FedEx, or UPS reaches most destinations in Southeast Asia within 3–5 business days, Europe and North America within 5–7 business days. For project-critical orders, same-day dispatch is available on confirmed in-stock units when orders are placed before 14:00 CST. Export documentation — commercial invoice, packing list, certificate of origin, and FORM E (ASEAN preferential tariff) — is prepared as standard for all international shipments. A 12-month warranty against manufacturing defects applies to all units; DOA claims are processed within 7 business days of confirmed inspection.
