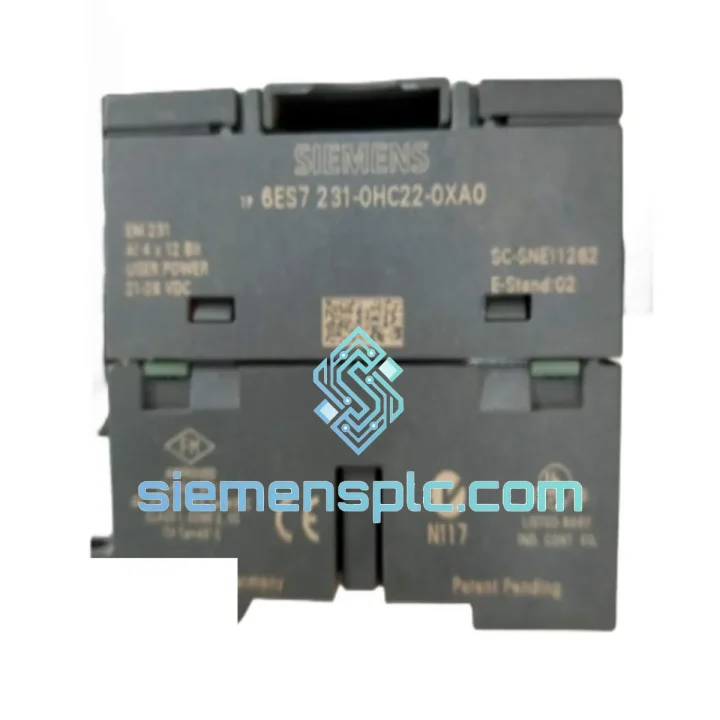

Siemens 6ES7231-0HC22-0XA0 Analog Input Module

6ES7231-0HC22-0XA0 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your S7-200 analog input channel just went dark. The process is halted. The shift supervisor is on your back. You’ve already pulled the EM 231 and confirmed it’s dead — now you need a replacement on-site before the next shift, not next week. That’s exactly why siemensplc.com stocks the Siemens 6ES7231-0HC22-0XA0 as a ready-to-ship unit, dispatched from Xiamen via DHL Express or FedEx International Priority. One call, one order, back online.

This is not a catalog listing. This is a live inventory position. If you’re reading this page, the module is available. We’ve handled emergency pulls for petrochemical plants in the Middle East, automotive lines in Southeast Asia, and water treatment facilities across Europe — all with the same urgency you’re facing right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on S7-200 systems, these are the failure modes and swap pitfalls that actually bite engineers on-site:

Common Failure Signatures on the EM 231:

• AIW value frozen at 0 or 32767: Classic sign of a dead input channel or broken field wiring. Before condemning the module, short the input terminals with a known 4–20 mA source and check AIW in the status chart. If it still reads rail-to-rail, the module is gone.
• Intermittent noise / erratic readings: Often caused by a failing optical isolator or degraded input filter capacitor — both are non-repairable in the field. Swap the module; don’t waste time chasing it with a scope.
• Module not recognized by CPU (no expansion bus communication): Check the ribbon cable connector on both ends first. If the connector is seated and the CPU still shows no EM in the system block, the module’s internal bus interface has failed.
• All channels reading identically: Multiplexer fault inside the ADC. Replace the module.

Replacement Configuration Checklist — Do This Before You Power Up:

• Input type DIP switches: The EM 231 uses a 6-position DIP switch bank on the module body to select input range per channel. This is the #1 missed step. If the switches are not set to match your field signal type (e.g., 4–20 mA vs. 0–10 V), your AIW values will be wrong or the channel will read zero. Photograph the old module’s switch positions before removal.
• Module address / slot position: The S7-200 assigns analog I/O addresses based on physical slot order from the CPU outward. If you’re inserting the EM 231 into the same slot, addresses are preserved. If the slot order changes, update your AIW/AQW references in the program — the CPU does not auto-remap.
• No firmware flashing required: The EM 231 carries no user-updatable firmware. Plug in, set DIP switches, power up — it’s live immediately.
• 24 VDC sensor supply: Verify your field transmitters are powered. The EM 231 does not supply loop power to 4–20 mA transmitters — that comes from an external 24 VDC source. A dead PSU on the sensor rail will look exactly like a dead module.
• Calibration: The EM 231 is factory-calibrated. No field calibration is required after swap. If your process readings drift slightly after replacement, check your field wiring impedance — the module input impedance is ≥ 10 MΩ (voltage) / 250 Ω (current).

Relevant Error Codes in STEP 7-Micro/WIN:

• SM1.3 (Overflow/Underflow): Input signal exceeds the configured range. Check DIP switch setting vs. actual field signal.
• Expansion I/O error in CPU diagnostic buffer: Module not communicating. Reseat ribbon cable or replace module.

Reliability in Harsh Conditions

The EM 231 was not designed for a climate-controlled server room. Siemens built this module for the floor — and it shows in the design choices. The optical isolation barrier between the field terminals and the logic bus is rated to withstand common-mode transients that would destroy unprotected ADC inputs. In practice, this means the module survives the kind of ground loops and inductive kick you get when a large motor starter shares a panel with your analog wiring.

The conformal coating on the PCB provides meaningful protection against condensation and airborne contaminants — relevant in food processing, chemical dosing, and coastal installations where humidity cycles daily. Operating range of 0–55 °C covers the vast majority of industrial enclosures, including those without active cooling in tropical climates.

Vibration resistance meets IEC 68-2-6 (sinusoidal) and IEC 68-2-27 (shock) standards. In practice, units mounted on DIN rail in compressor rooms and pump skids have run continuously for 8–12 years before failure — which is why when one finally dies, the plant has often been running the same S7-200 system for over a decade and needs an exact replacement, not a migration project.

Every unit we ship has been stored in controlled conditions — temperature-stable, anti-static packaging, away from magnetic fields. We do not sell modules that have been sitting in a humid warehouse for years. Shelf life matters for electrolytic components, and we take it seriously.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how a typical emergency order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority label generated within 2 hours of payment confirmation.
• Transit times (door-to-door from Xiamen):
  • Southeast Asia (SG, MY, TH, VN): 2–3 business days
  • Middle East (AE, SA, QA): 3–4 business days
  • Europe (DE, NL, PL, UK): 4–5 business days
  • North America (US, CA, MX): 4–6 business days
  • Australia / NZ: 4–5 business days
• Tracking: AWB number sent by email and WhatsApp within 1 hour of dispatch. Real-time tracking link included.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for customs clearance. HS Code: 8537.10.90. We handle export declaration — you handle import clearance at your end (we can advise on HS codes for your country).
• Packaging: Anti-static bag, foam-lined rigid box, outer carton with fragile labeling. The module arrives in the same condition it left.
• Bulk orders: For 5+ units, contact us for consolidated freight options. Sea freight available for non-urgent large-volume orders.

We’ve shipped to 60+ countries. If your country has import restrictions on industrial electronics, contact us before ordering — we’ll advise on the correct documentation to avoid customs holds.
