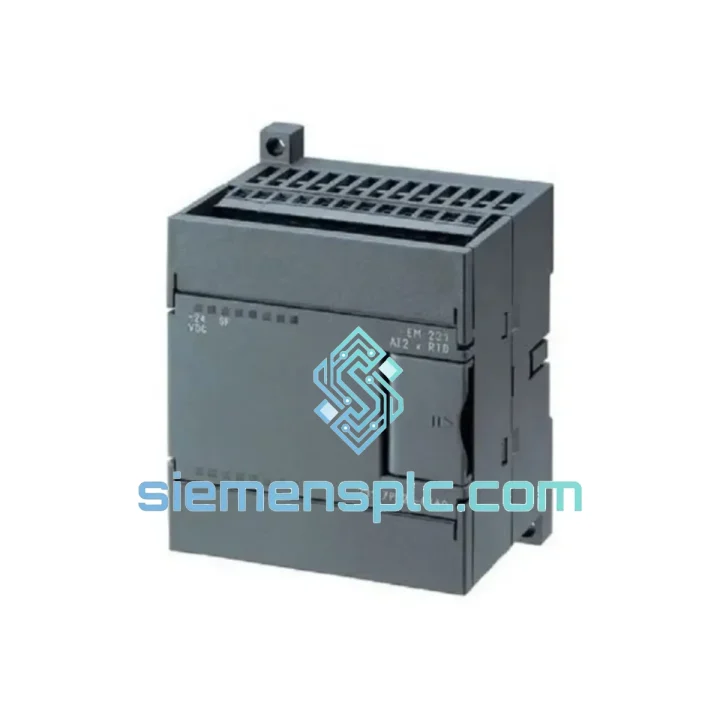

Siemens 6ES7231-7PB22-0XA0 PLC Analog Input Module

Siemens 6ES7231-7PB22-0XA0 RTD Analog Input Module — Stop the Clock on Your Downtime

Every minute a production line sits idle costs real money. When your S7-200 SMART system throws a fault on the RTD input channel and your temperature loop goes open, you don’t need a sales pitch — you need the part on your bench today. The Siemens 6ES7231-7PB22-0XA0 is stocked, tested, and ready to leave Xiamen on the next available DHL or FedEx flight. We’ve shipped this exact module to plants in Germany, Malaysia, Saudi Arabia, and Mexico — all on emergency timelines. We know what’s at stake.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. These are the failure modes and swap pitfalls that actually show up on site:

Common Fault Codes on S7-200 SMART with this module:

• AIW channel reads 32767 (0x7FFF): Overflow / open-circuit on RTD input. Check wiring continuity first — a broken lead or corroded terminal block connector is the most common culprit before condemning the module itself.
• AIW reads −32768 (0x8000): Underflow / short-circuit condition. Verify sensor resistance at the terminal; a shorted PT100 reads near 0 Ω and will trigger this.
• Intermittent readings drifting ±5°C: Ground loop interference. Confirm the RTD shield is grounded at one end only (typically the panel end). Floating shields on long cable runs pick up 50/60 Hz noise that overwhelms the module’s filter at 405 ms.
• Module not recognized after hot-swap: The S7-200 SMART expansion bus does not support true hot-swap. Always power down the CPU before removing or inserting expansion modules. After power-up, the CPU re-enumerates the expansion chain automatically — no address DIP switch setting is required on this module (address is assigned by physical slot position).
• Firmware mismatch warning in STEP 7-Micro/WIN SMART: Ensure your programming software is V2.4 or later. Older V2.2 builds have a known issue misreporting the module firmware version on the EM 231 RTD variant. Update the software, not the module.

Replacement Procedure (field-tested, 15-minute swap):

1. Document the current AIW channel configuration in STEP 7-Micro/WIN SMART (sensor type, temperature unit, filter frequency) before powering down — screenshot the module properties dialog.
2. De-energize the CPU and the 24 V DC supply rail. Wait 10 seconds for bus capacitors to discharge.
3. Label and photograph all RTD wiring at the terminal block before disconnecting. The 6ES7231-7PB22-0XA0 uses a removable terminal connector — pull it straight out without twisting.
4. Slide the module off the expansion bus connector. The replacement unit snaps into the same slot; physical position determines the logical address (AIW0/AIW2 or offset depending on preceding modules).
5. Reconnect the terminal block. Verify 3-wire RTD connections: terminal 1 = RTD+, terminal 2 = RTD sense, terminal 3 = RTD−. For 2-wire sensors, bridge terminals 1 and 2.
6. Power up. The CPU will auto-detect the new module. Re-open the module configuration in STEP 7-Micro/WIN SMART and confirm sensor type and filter settings match your documentation from Step 1.
7. Monitor AIW values for 2–3 minutes. Readings should stabilize within ±0.5°C of the reference thermometer at the sensor location.

Reliability in Harsh Conditions

Industrial environments don’t care about lab specs. The 6ES7231-7PB22-0XA0 is built to operate where conditions are genuinely hostile:

• Vibration: Rated to IEC 60068-2-6 — 10–57 Hz at 0.075 mm displacement, 57–150 Hz at 1g. The DIN-rail latch mechanism maintains positive contact under continuous machine vibration typical of compressor rooms and press lines.
• Thermal cycling: Operates continuously at 55°C ambient without derating. The optical isolation barrier prevents thermal runaway from field-side heat sources from propagating to the logic circuitry.
• Humidity and condensation: Rated to 95% RH non-condensing per IEC 60068-2-30. The conformal coating on the PCB provides a barrier against moisture ingress in humid tropical or coastal plant environments.
• EMI/RFI immunity: Compliant with EN 61000-4 series. The module’s internal filtering suppresses conducted interference from variable-frequency drives (VFDs) and contactors sharing the same panel — a common source of phantom RTD readings in motor control centers.
• ESD protection: All I/O lines are protected to IEC 61000-4-2 Level 3. Field technicians can connect and disconnect RTD wiring without powering down the sensor circuit, without risk of ESD damage to the input stage.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx gateway hub for southern China. This geography is not accidental — it was chosen specifically to support emergency industrial shipments.

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders after 14:00 ship the following morning.
• DHL Express Worldwide: Xiamen to Frankfurt, Dubai, Singapore, or Houston in 2–4 business days door-to-door. Real-time tracking from pickup to delivery.
• FedEx International Priority: Alternative routing for destinations where FedEx has stronger last-mile coverage (e.g., remote industrial sites in North America, Australia, and the Middle East).
• Export documentation: Commercial invoice, packing list, and country-of-origin certificate prepared same day. HS Code 8538.90 applies to this module — pre-cleared for most destinations without additional licensing.
• Customs clearance support: We provide proforma invoices and technical descriptions formatted for customs brokers. For EU imports, we can declare under EORI-compatible documentation to accelerate clearance.
• Emergency freight: For genuine production-stop situations, contact us via WhatsApp for a direct conversation about charter courier options and airport-to-airport freight.
