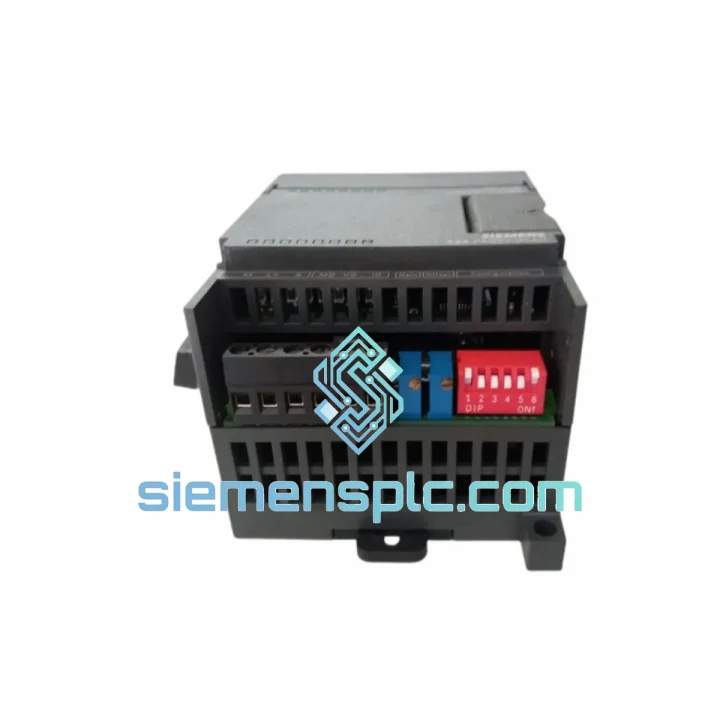

Siemens 6ES7235-0KD22-0XA0 Analog I/O Module

6ES7235-0KD22-0XA0 EM 235 — Stop the Bleed: Every Hour of Downtime Costs You More Than This Module

Your S7-200 system is down. The EM 235 analog card has failed — and the process line is standing still. You’ve already pulled the diagnostics, confirmed the fault, and now you need a replacement unit in hand, not a lead-time quote. That’s exactly why we stock the Siemens 6ES7235-0KD22-0XA0 in Xiamen, ready to ship same day via DHL or FedEx International Priority. No waiting on distributor allocation. No back-and-forth on availability. One call, one unit, one shipment.

We’ve handled enough emergency callouts to know that the EM 235 is one of the most failure-prone expansion modules in the S7-200 family — not because it’s poorly designed, but because it sits at the intersection of field wiring, analog signal noise, and 24 V DC bus stress. When it goes, it goes fast, and the window to recover is narrow.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of EM 235 swap-outs in the field, here’s what actually matters when you’re under pressure:

1. DIP Switch Configuration — Do This First
The EM 235 uses a 6-position DIP switch bank (SW1) to set input range and mode. This is the single most common cause of post-replacement signal errors. Before you power up, match the switch positions to your original module’s configuration. If you don’t have the original settings documented, check the STEP 7-Micro/WIN project file — the analog input configuration block will tell you the expected range. Common factory defaults are 0–10 V unipolar, but most process applications run 4–20 mA. Mismatch here will give you a flat zero or a pegged full-scale reading on every channel.

2. Module Addressing — No Manual Configuration Required
Unlike some third-party expansion cards, the EM 235 uses automatic I/O addressing based on its physical slot position on the expansion bus. Slot 0 (first module after CPU) maps to AIW0/AQW0. Slot 1 maps to AIW8/AQW4, and so on. If you’re replacing a failed unit in an existing rack, the address mapping is preserved as long as the slot position doesn’t change. No firmware flashing, no address jumpers.

3. Common Fault Codes to Know
— SF LED solid red on CPU after module swap: Usually a wiring fault on the analog input terminals or a DIP switch mismatch. Check terminal connections and switch positions before assuming the replacement unit is defective.
— AIW reads 32767 (7FFF hex) or −32768 (8000 hex): Open circuit on the input channel. Verify field wiring continuity and transmitter power supply.
— Output channel AQW0 stuck at 0: Confirm the CPU is in RUN mode and the output is being written by the program. Also check that the output load impedance is within spec (voltage mode: ≥5 kΩ; current mode: ≤500 Ω).
— Intermittent analog drift or noise: Ground loop issue. Verify that the analog signal common (M terminal) is connected at one point only. Floating commons on multi-transmitter loops are a frequent culprit.

4. Bus Connector Inspection
Before installing the replacement module, inspect the expansion bus connector on both the CPU and the new module. Bent or oxidized pins on the bus connector are a known failure mode in high-humidity environments. Clean with isopropyl alcohol and a fine brush if needed. Never force the connector — misalignment will damage the bus interface on the CPU.

5. Power Budget Check
The EM 235 draws up to 60 mA from the 24 V DC bus. If your CPU is already running multiple expansion modules, verify the total current draw doesn’t exceed the CPU’s expansion bus current limit (CPU 224: 280 mA; CPU 226: 400 mA). Exceeding this will cause random resets and intermittent faults across all modules.

Reliability in Harsh Conditions

The S7-200 EM 235 was engineered for industrial environments where consumer-grade electronics simply don’t survive. The module’s internal design accounts for the realities of factory floors: vibration from heavy machinery, thermal cycling between cold startups and sustained full-load operation, and the corrosive humidity common in coastal and chemical processing facilities.

The 500 V AC galvanic isolation barrier between the field-side analog terminals and the logic-side bus is not just a spec number — it’s what keeps a ground fault on a 4–20 mA loop from taking out your CPU. In applications where field wiring runs alongside high-voltage power cables, this isolation is the difference between a module replacement and a full CPU replacement.

Operating temperature range of 0 °C to +55 °C covers the vast majority of industrial panel environments. For installations in unheated enclosures in cold climates, the −40 °C storage rating means the module survives winter shutdowns without internal condensation damage. The IP20 rating is appropriate for panel-mounted use — ensure the enclosure itself provides the environmental protection required by your installation.

Vibration and shock resistance meets IEC 61131-2 requirements: 10–57 Hz at 0.075 mm amplitude, 57–150 Hz at 1 g. In practice, this means the module handles the vibration environment of most machine tool and conveyor applications without mechanical fatigue on the internal PCB or connector assemblies.

Units supplied from our Xiamen stock are stored in climate-controlled conditions with anti-static packaging. Long-term storage in uncontrolled environments is a known cause of electrolytic capacitor degradation in analog modules — our inventory rotation policy ensures you receive a unit with full remaining service life.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport handles direct cargo connections to major DHL and FedEx hubs, which means your shipment enters the express network without domestic relay delays.

Standard dispatch process:
Order confirmed before 14:00 CST → same-day packaging and handover to carrier. DHL Express and FedEx International Priority are our primary carriers for urgent shipments. Transit times to most destinations: Southeast Asia 1–2 business days, Europe 3–5 business days, North America 4–6 business days, Middle East 3–4 business days.

Every shipment includes a commercial invoice, packing list, and certificate of origin — the documentation set required for customs clearance in most jurisdictions. For EU imports, we can provide the necessary declarations for CE-marked goods. For US imports, HTS classification and country of origin documentation are included as standard.

Bulk orders (5+ units) are consolidated and shipped on a single AWB to minimize brokerage fees. For orders requiring split shipment across multiple destinations, contact us directly to arrange multi-leg logistics coordination.

Track your shipment in real time via DHL or FedEx tracking number, provided by email within 2 hours of dispatch. If your shipment is time-critical, request a specific flight booking — we can arrange priority cargo handling for same-day uplift on most routes.
