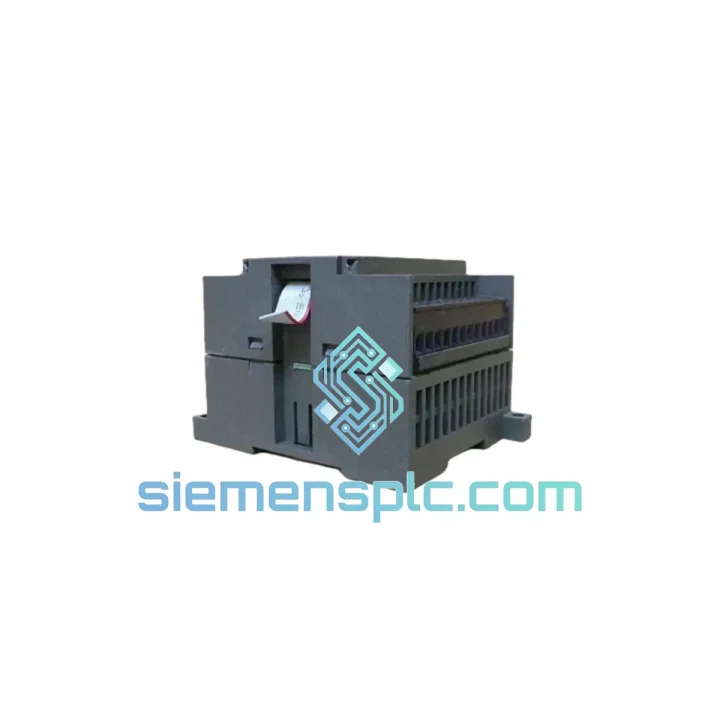

Siemens 6ES7253-1AA22-0XA0 PLC Positioning Module

6ES7253-1AA22-0XA0 EM 253 — Stop the Bleed: Get Your Axis Back Online Before the Next Shift

Your packaging line is down. The HMI is throwing a positioning fault. The stepper axis won’t home. Every minute of unplanned downtime on a motion-critical line costs real money — and the clock is running. The Siemens 6ES7253-1AA22-0XA0 EM 253 Position Control Module is in stock in Xiamen right now. We ship same day via DHL Express. You can have a replacement module on your bench within 24–72 hours, anywhere in the world.

This is not a catalog listing. This is a field-ready spare. We’ve handled emergency calls from plant engineers in Germany, Thailand, Mexico, and Saudi Arabia — all with the same problem: a dead EM 253 and a production manager breathing down their neck. We know what you need and we move fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on S7-200 positioning systems teach you the same failure patterns. Here’s what to check before you pull the module — and what to do when you do pull it.

Common fault signatures pointing to a failed EM 253:

• CPU RUN LED solid, but axis refuses to execute motion commands — EM 253 internal processor has locked up. Power cycle alone won’t fix it; the module needs replacement.
• STEP 7-Micro/WIN reports “Module not recognized” or expansion bus error on slot occupied by EM 253 — check expansion cable first (6ES7290-6AA20-0XA0), then assume module failure if cable is intact.
• Axis homes erratically or overshoots reference point — verify home switch wiring and input filter settings in the Position Control Wizard before condemning the module. If wiring checks out, the EM 253 input circuit is suspect.
• Pulse output present on oscilloscope but drive does not respond — confirm P/D vs CW/CCW mode matches drive configuration. Mismatch here is the #1 commissioning error on EM 253 replacements.
• Module runs warm to the touch and faults intermittently — check 24 VDC supply quality. EM 253 is sensitive to ripple; use a SITOP-class supply, not a generic switching PSU.

Replacement procedure — field checklist:

• Power down the entire S7-200 rack. The EM 253 does not support hot-swap.
• Document the existing Position Control Wizard configuration before removal — screenshot or export the project from Micro/WIN. The replacement module has no memory of the previous setup.
• The EM 253 has no DIP switches or address jumpers. Module addressing is automatic via expansion bus slot position — slot order matters. Ensure the replacement occupies the identical physical slot as the failed unit.
• After installation, re-run the Position Control Wizard. Do not assume the existing CPU program will auto-configure the new module — always re-validate axis parameters (max speed, acceleration ramp, reference point offset).
• Perform a manual jog test at low speed before enabling automatic cycles. Confirm limit switch inputs are recognized by the module before running a homing sequence.
• If the CPU was running firmware older than V2.01, verify compatibility. The 6ES7253-1AA22-0XA0 (order suffix -0XA0) corresponds to a specific hardware revision — confirm your Micro/WIN version supports it.

Reliability in Harsh Conditions

The EM 253 was engineered for the factory floor, not a server room. Siemens designed this module to operate continuously in environments that would kill consumer-grade electronics within weeks.

Operating temperature range covers 0°C to +55°C ambient — standard for panel-mounted automation hardware in non-air-conditioned production buildings in Southeast Asia and the Middle East. The module’s conformal-coated PCB provides baseline protection against humidity and condensation, which is critical in coastal manufacturing facilities where relative humidity regularly exceeds 80%.

Vibration resistance meets IEC 61131-2 requirements for Class II industrial equipment — the same standard applied to equipment mounted on machine frames subject to motor and conveyor vibration. In textile and printing applications where the entire machine frame vibrates at 50–100 Hz during operation, the EM 253’s connector locking mechanism and rigid bus interface prevent the intermittent contact failures that plague modules with loose edge connectors.

The module’s internal power regulation is designed to tolerate the voltage sags and transients common on factory distribution panels — particularly during large motor starts on shared circuits. Pair it with a SITOP PSU for maximum immunity. Units sourced from us are inspected for capacitor condition and connector integrity before shipment, ensuring the replacement you receive performs identically to a factory-fresh module.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. This is not a drop-ship operation. Stock is physically on our shelves.

Typical transit times from Xiamen:

• Southeast Asia (Thailand, Vietnam, Malaysia, Indonesia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via FedEx International Priority
• Europe (Germany, Poland, Netherlands, UK): 3–4 business days via DHL Express Worldwide
• Americas (USA, Mexico, Brazil): 3–5 business days via FedEx International Priority
• South Asia (India, Pakistan, Bangladesh): 2–3 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin — all required for customs clearance. For urgent orders, we can prepare export documentation within 2 hours of payment confirmation. We have handled emergency air freight for plant shutdowns where the customer needed the module on-site within 36 hours — it is achievable from Xiamen.

ESD-safe anti-static packaging is standard. The module is foam-cushioned inside a rigid outer carton rated for air freight handling. We do not reuse packaging from other shipments.
