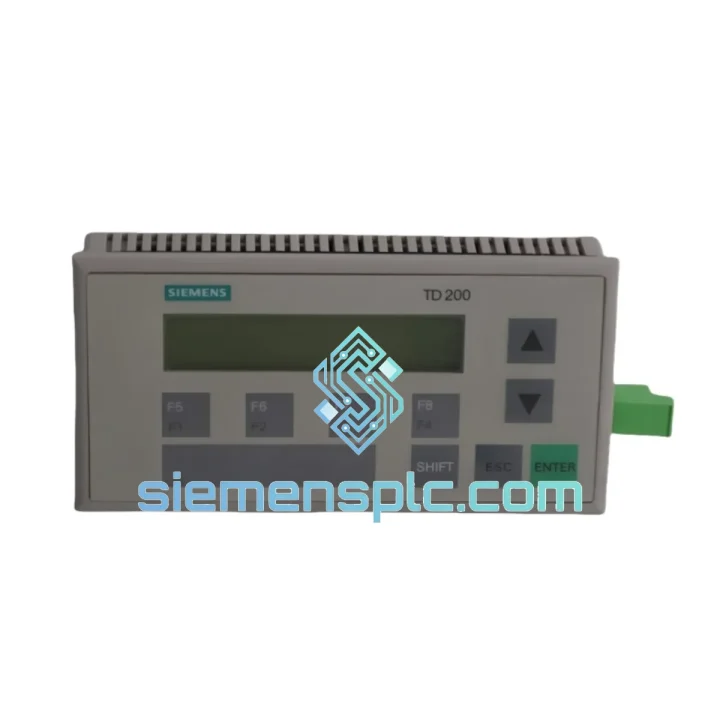

Siemens 6ES7272-0AA30-0YA1 TD 200 Text Display — Local Operator Interface for SIMATIC S7-200 Micro PLC Systems

In compact automation cells where a full-scale SCADA terminal is neither justified nor practical, the operator interface layer is often the weakest link in the diagnostic chain. The Siemens 6ES7272-0AA30-0YA1 TD 200 Text Display addresses this gap with a purpose-built, panel-mounted HMI that integrates directly into the SIMATIC S7-200 PPI communication bus. It delivers real-time process messaging, alarm acknowledgment, and parameter write capability at the machine level — without requiring a PC, a separate HMI controller, or an additional power supply rail.

The TD 200 occupies a specific and well-defined role in the S7-200 control architecture: it acts as a passive PPI slave device on the RS-485 network, polled by the CPU at configurable intervals. The CPU writes message trigger bits to a reserved V-memory block (TD 200 parameter block), and the display unit reads those bits, maps them to pre-configured text strings stored in its internal EEPROM, and renders the appropriate message on the 2-line × 20-character LCD. This architecture keeps the CPU scan cycle impact minimal — the PPI polling overhead is bounded and does not interfere with the deterministic ladder logic execution cycle.

For maintenance engineers managing legacy S7-200 installations across food processing, water treatment, packaging, and general manufacturing, the 6ES7272-0AA30-0YA1 remains the correct and only compatible text display for this platform. Its continued availability as a genuine spare part is operationally significant: replacing a failed TD 200 with a non-compatible HMI would require CPU port reconfiguration, software changes, and panel rework — all avoidable with a direct replacement unit.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7272-0AA30-0YA1 is architecturally a PPI slave device with an embedded microcontroller managing three concurrent tasks: LCD rendering, keypad scanning, and PPI frame processing. Understanding its internal logic clarifies both its performance envelope and its failure modes.

PPI Communication Layer: The TD 200 communicates over the RS-485 physical layer using Siemens’ proprietary PPI protocol — a token-passing, master-slave variant of the MPI protocol stack. The S7-200 CPU acts as the sole PPI master; the TD 200 holds a fixed node address (default: 1) and responds only when polled. The CPU writes process data and message trigger flags into a contiguous V-memory block (the TD 200 parameter block, typically 256 bytes), and the TD 200 reads this block at each poll cycle. This memory-mapped approach means the CPU program interacts with the display through standard bit-set/reset instructions — no special communication function blocks are required, and the PPI overhead is deterministic and bounded to the configured baud rate (9.6 or 19.2 kbps).

EEPROM Message Storage: All 80 configurable text messages are stored in the TD 200’s internal EEPROM during the STEP 7-Micro/WIN configuration download. This non-volatile storage means the display retains its message library through power cycles without requiring re-download from the CPU — a critical characteristic for field replacement scenarios where the engineering laptop may not be on-site.

EMC Design: The TD 200 enclosure is constructed with a conductive bezel and internal shielding plane referenced to the RS-485 cable shield ground. The RS-485 transceiver incorporates TVS diode protection on both differential lines, providing surge immunity consistent with IEC 61000-4-5 Level 2 (±1 kV line-to-line). The LCD driver circuitry is filtered to suppress conducted emissions on the CPU port power lines, preventing noise injection back into the S7-200 CPU’s internal power bus.

Keypad Debounce and Function Key Logic: The 8 function keys are scanned by the embedded microcontroller at a 20 ms interval with hardware debounce filtering. Key press events are written to designated bits in the TD 200 parameter block in V-memory, where the CPU ladder program can read them as standard digital inputs. This architecture allows function keys to trigger any programmable action within the CPU — setpoint changes, mode switches, alarm resets — without any dedicated HMI programming environment beyond STEP 7-Micro/WIN.

Revision -0YA1 vs. Earlier Variants: The -0YA1 hardware revision introduced improved EEPROM endurance (rated write cycles increased from 100,000 to 1,000,000) and a revised LCD controller with extended operating temperature tolerance at the upper boundary. The PPI protocol implementation and V-memory parameter block structure are fully backward-compatible with -0XA0 and -0XA8 units — no software changes are required when substituting revisions.

System Integration Benefits

• Zero additional power wiring: The TD 200 draws ≤ 60 mA directly from the S7-200 CPU communication port, eliminating the need for a dedicated 24 VDC branch circuit to the HMI — reducing panel wiring complexity and potential ground loop sources.
• Deterministic scan cycle impact: PPI polling is handled asynchronously by the CPU’s communication co-processor, not the main scan cycle. The TD 200 parameter block read/write operations do not add measurable latency to the ladder logic execution cycle, preserving the CPU’s real-time response characteristics.
• 80-message alarm library without SCADA dependency: Maintenance staff can read plain-language alarm and status messages directly at the machine panel without launching STEP 7-Micro/WIN or connecting a PC — reducing mean time to diagnosis in unattended or remote installations.
• Operator parameter write without engineering access: Function keys mapped to V-memory bits allow authorized operators to adjust setpoints, acknowledge alarms, or switch operating modes within CPU-enforced limits — without exposing the PLC program to unauthorized modification.
• IP65 front panel for harsh environments: The sealed front bezel withstands wash-down procedures, airborne particulate, and water jet exposure per IEC 60529 IP65 — suitable for food processing, chemical dosing, and outdoor enclosure applications without additional protective covers.
• EEPROM-resident message library survives power loss: Message configuration is retained in non-volatile memory independent of the CPU program backup battery — the display is fully operational immediately on power restoration without any re-initialization sequence.
• Direct drop-in replacement for all TD 200 revisions: The -0YA1 is electrically and mechanically interchangeable with -0XA0 and -0XA8 units. Panel cutout dimensions, PPI wiring, and V-memory parameter block structure are identical — field replacement requires no panel rework or software modification.
• FM Class I Division 2 certification: The TD 200 carries FM approval for use in hazardous locations classified as Class I, Division 2 (Groups A, B, C, D) — extending its applicability to oil and gas auxiliary panels, chemical plant skids, and other potentially explosive atmospheres where full Ex-rated equipment is not mandated.
• Compatible with all S7-200 CPU variants: Operates with CPU 221, 222, 224, 224XP, and 226 across all firmware versions — no CPU firmware upgrade required for TD 200 integration.
• Configurable display language: Message text is entered as free-form ASCII strings in STEP 7-Micro/WIN, supporting any Latin-character language — enabling localized operator interfaces for international OEM deployments without hardware changes.

Quality Assurance & Global Logistics

Every Siemens 6ES7272-0AA30-0YA1 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol aligned with IEC 62402 obsolescence management guidelines for legacy industrial components.

Authenticity Verification: Part markings, date codes, firmware version labels, and housing mold geometry are cross-referenced against Siemens AG original documentation and known-good reference units. Components exhibiting inconsistencies in label typography, connector plating, or PCB silkscreen are quarantined and excluded from stock.

Functional Verification: Units are powered via a calibrated S7-200 CPU port simulator and subjected to a communication handshake test confirming PPI node address response, V-memory read/write integrity, LCD segment activation across all character positions, and function key scan output. Test records are retained for 24 months.

Packaging: Each unit is individually sealed in anti-static PE bag with desiccant sachet, placed in custom-cut EPE foam insert within a double-wall corrugated carton. Packaging meets ISTA 2A transport simulation requirements for air and sea freight.

Export Documentation: Shipments include commercial invoice, packing list with part number and batch reference, certificate of origin (Xiamen, China), and — where required — CITES/dual-use export compliance declaration. HS Code: 8537.10 (boards, panels, consoles for electric control).

Logistics: Standard dispatch within 2 business days of order confirmation. Air freight to major industrial hubs: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days, Middle East 4–5 days. DHL Express, FedEx International Priority, and UPS Worldwide Express available. Sea freight consolidation available for bulk orders exceeding 20 units.

Warranty: 12 months from dispatch date covering manufacturing defects and functional failure under normal operating conditions. Warranty claims processed within 5 business days of receipt of returned unit with failure description.
