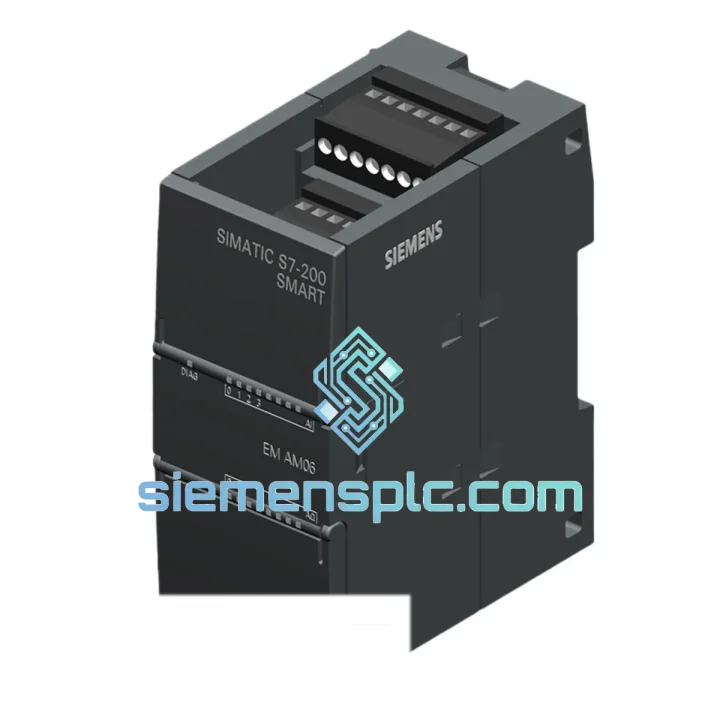

Siemens 6ES7288-3AM06-0AA0 Analog I/O Module

6ES7288-3AM06-0AA0 – Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your line is down. Every minute the S7-200 SMART CPU sits without its analog expansion module, you’re bleeding production output. The 6ES7288-3AM06-0AA0 (AM06) is the exact module you need — 2 analog inputs, 1 analog output, 12-bit resolution, direct bus plug-in. We stock it. We ship it. DHL Express from Xiamen, door to your panel, typically 3–5 business days worldwide.

No substitutes. No clones. Genuine Siemens OEM hardware with original packaging and traceable batch codes. This is the part that gets your process loop back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the old module: Power down the CPU and all field-side 24 V supplies. The AM06 does not support hot-swap — inserting or removing under power risks corrupting the CPU’s expansion bus and can damage the ADC front-end. This is the single most common cause of “new module not recognized” calls we get.

Common fault codes and what they actually mean:

• SM1.3 (Analog I/O Error bit set) — The CPU has lost communication with the expansion module. First check: is the expansion bus ribbon connector fully seated? A partial connection on either the CPU side or the module side will throw this bit. Re-seat, power cycle, check again before assuming the module is dead.
• AIW value stuck at 32767 or −32768 — Open-circuit or broken wire on the AI input. The AM06 drives the ADC to full-scale on an open input. Verify field wiring continuity before condemning the module.
• AQW write has no effect on field device — Confirm the AO channel is configured for the correct signal type (voltage vs. current) in STEP 7-Micro/WIN SMART. A mismatch between software config and field wiring (e.g., current loop wired but voltage mode selected) will produce zero or erratic output.
• Noisy AIW readings (±50–200 counts jitter) — Almost always a grounding or shielding issue, not a module fault. Verify shield is grounded at one end only, and that the 24 V field supply is not shared with VFD output circuits.

Replacement procedure (field-verified):

1. Export and save the current STEP 7-Micro/WIN SMART project before touching hardware.
2. Power down CPU and 24 V field supply. Wait 10 seconds for capacitors to discharge.
3. Disconnect all field wiring from the AM06 terminal block — photograph the wiring first.
4. Release the DIN rail latch and slide the module off the expansion bus connector.
5. Seat the replacement 6ES7288-3AM06-0AA0 firmly until the bus connector clicks. No address switches or DIP settings required — the S7-200 SMART uses automatic slot-based addressing. The CPU assigns AIW/AQW addresses based on module position from left to right.
6. Reconnect field wiring per your photograph. Restore power.
7. In STEP 7-Micro/WIN SMART, open the System Block → Expansion Modules tab and verify the AM06 appears in the correct slot with the correct signal type configuration. Download the System Block if any changes were made.
8. Monitor AIW values in a Status Chart during first power-on. Confirm readings are within expected engineering range before releasing the line.

Firmware note: The AM06 carries embedded firmware that is not field-upgradeable. If you are replacing a module that failed after a CPU firmware update, verify the CPU firmware version is compatible with the AM06 hardware revision. Check the Siemens compatibility matrix in the S7-200 SMART system manual (A5E03822230).

Reliability in Harsh Conditions

The 6ES7288-3AM06-0AA0 is built to operate where office-grade electronics fail. The conformal-coated PCB resists condensation and airborne contaminants — a real concern in food processing, chemical, and coastal manufacturing environments where humidity swings are routine. The optical isolation barrier between field terminals and logic bus is rated to withstand the common-mode transients generated by VFD switching, motor contactors, and inductive load switching that are endemic to industrial panels.

Vibration resistance meets IEC 61131-2 requirements: 10–57 Hz at 0.075 mm displacement, 57–150 Hz at 1 g. In practice, this means the module survives on DIN rail inside a panel mounted directly to a press frame or compressor skid without the micro-fractures in solder joints that plague cheaper analog modules after 12–18 months of continuous vibration exposure.

Operating temperature ceiling of 55 °C is meaningful in non-air-conditioned enclosures in tropical climates. We have seen AM06 modules running continuously for 7+ years in textile mill panels in Southeast Asia — environments with 40 °C ambient, high humidity, and cotton fiber contamination — without analog drift or communication faults. That is the baseline you are buying.

Storage temperature range of −40 °C to +70 °C means modules held in unheated warehouses in northern China or Canada arrive at installation sites without cold-soak damage to electrolytic capacitors or connector contacts.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here is exactly what happens after you place your order:

• Order confirmed before 14:00 CST: Same-day dispatch. Module is picked, inspected, packed in anti-static foam with original Siemens carton, and handed to DHL/FedEx courier the same afternoon.
• Tracking number: Emailed within 2 hours of handover. You can monitor shipment in real time from Xiamen to your door.
• Transit times (DHL Express): Southeast Asia 1–3 days | Europe 3–5 days | North America 4–6 days | Middle East 3–5 days | Australia 3–5 days. Times are business days, customs clearance dependent.
• Export documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. HS Code 8537.10 applies. We can provide a formal Siemens datasheet and ECCN classification letter for customs pre-clearance on request.
• Bulk orders: For quantities above 5 units or combined shipments, we can consolidate and ship via FedEx International Priority or arrange sea freight with full insurance. Lead time and freight cost quoted within 4 hours of inquiry.
• Emergency freight: If your plant is down and standard express is not fast enough, contact us directly on WhatsApp. We have arranged next-flight-out courier shipments for critical outages — it costs more, but it gets your line running.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
