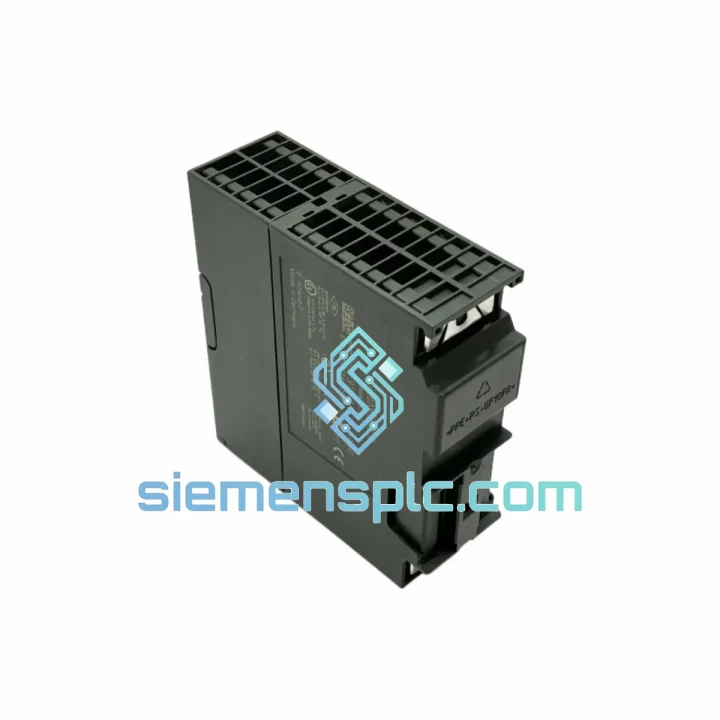

Siemens 6ES7312-1AE14-0AB0 PLC CPU Module – SIMATIC S7-300

Siemens 6ES7312-1AE14-0AB0 CPU312 — Compact Standard CPU for SIMATIC S7-300 Distributed Control Architectures

The Siemens 6ES7312-1AE14-0AB0 is a single-slot standard CPU designed for the SIMATIC S7-300 modular PLC platform. Occupying a 40 mm-wide slot on the S7-300 DIN-rail mounting rack, this CPU serves as the central processing and program execution unit for small-to-medium scale discrete and process automation tasks. Its architecture is optimized for deterministic scan-cycle execution, with a binary instruction processing time of 0.1 ms per 1,000 instructions — a figure that directly governs the achievable control loop update rate in time-critical applications such as conveyor sequencing, press control, and pump station management.

Unlike CPU modules with integrated I/O, the 6ES7312-1AE14-0AB0 relies entirely on the S7-300 backplane bus for I/O expansion, communicating with signal modules (SMs), function modules (FMs), and communication processors (CPs) via the P-bus (peripheral bus) and K-bus (communication bus) embedded in the rack. The P-bus handles high-speed I/O data exchange at the hardware level, while the K-bus manages inter-module configuration and diagnostic data. This separation of data paths prevents I/O throughput from being degraded by diagnostic polling — a design principle that maintains scan-cycle consistency under fault conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture: The S7-300 rack integrates two parallel bus systems. The P-bus (peripheral bus) is a parallel 8-bit data bus operating at TTL logic levels, dedicated to high-speed cyclic I/O data transfer between the CPU and signal modules. The K-bus (communication bus) is a serial bus used for acyclic parameter assignment, module identification, and diagnostic data retrieval. The CPU312 arbitrates both buses within each scan cycle: P-bus data is read and written during the I/O update phase, while K-bus transactions are handled asynchronously in the background task layer. This dual-bus topology ensures that a diagnostic event on one SM does not introduce jitter into the I/O update phase of other modules.

EMC Design and Shielding: The 6ES7312-1AE14-0AB0 housing is constructed from a zinc die-cast front frame with an integrated EMC shielding gasket that mates with the rack’s grounded backplane. Internal PCB layers include a dedicated ground plane between the logic and power layers, reducing radiated emissions and improving immunity to conducted interference per EN 61000-4-4 (EFT/Burst, 2 kV) and EN 61000-4-5 (Surge, 1 kV). The MPI interface driver circuit incorporates galvanic isolation via optocouplers, preventing ground loop currents from propagating into the CPU logic domain — a critical design feature in installations where the programming device and PLC share different ground potentials.

Memory Architecture: Work memory (32 KB RAM) is battery-backed via the rack’s integrated backup capacitor, retaining the program and data blocks during a brief power interruption without requiring an external battery. The load memory (64 KB integrated RAM) stores the offline program image and is supplemented by the SIMATIC Micro Memory Card (MMC) slot, which accepts cards up to 8 MB for extended program storage and recipe data. The MMC also functions as the program transfer medium, enabling CPU replacement without a programming device — a significant advantage in field maintenance scenarios.

Watchdog and Fault Handling: The CPU implements a hardware watchdog timer that triggers a STOP transition if the operating system fails to reset it within the configured cycle monitoring time (default: 150 ms, configurable 1–6,000 ms). A separate I/O access error handler allows the user program to respond to module faults via OB122 (I/O access error) and OB85 (program cycle error), enabling graceful degradation rather than uncontrolled shutdown. The diagnostic buffer stores the last 100 events with timestamps, accessible via STEP 7 or TIA Portal without interrupting the running program.

System Integration Benefits

• Deterministic Scan Cycle: The 0.1 ms/1,000-instruction processing rate allows engineers to calculate worst-case cycle times with precision, enabling reliable design of time-critical interlocks and safety-adjacent sequences without over-specifying hardware.
• Single-Slot Footprint: At 40 mm width, the CPU312 consumes the minimum possible rack space in the S7-300 form factor, leaving maximum slots available for I/O expansion — particularly valuable in compact control panels with constrained DIN-rail depth.
• MPI Network Topology: The integrated MPI port supports multi-master network configurations with up to 32 nodes, allowing simultaneous connection of a programming device, HMI panel (e.g., SIMATIC TP/OP series), and a second CPU for coordinated multi-axis or multi-zone control without additional CP modules.
• Diagnostic Transparency: The 100-event diagnostic buffer with millisecond-resolution timestamps enables post-mortem fault analysis without external data logging hardware. Events include module insertion/removal, power supply faults, program errors, and forced I/O states.
• MMC-Based Program Transfer: CPU replacement in the field requires only the transfer of the MMC card — no laptop, no programming cable, no STEP 7 license at the machine. This reduces mean time to repair (MTTR) in distributed plant environments where programming devices are not always available on-site.
• Scalable I/O via Standard SMs: The CPU312 is compatible with the full range of S7-300 signal modules, including high-density 32-channel digital I/O, thermocouple/RTD analog inputs, and high-speed counter modules (FM350), allowing the same CPU to serve applications from simple on/off control to closed-loop PID regulation.
• TIA Portal Compatibility: While natively programmed in SIMATIC STEP 7 V5.x, the 6ES7312-1AE14-0AB0 is supported in TIA Portal via the STEP 7 Professional package with legacy device support, enabling integration into modern engineering workflows without hardware replacement.
• ATEX Zone 2 Suitability: The module carries ATEX Category 3G certification, permitting installation in Zone 2 hazardous areas (locations where explosive gas atmospheres are not likely to occur in normal operation but may occur in abnormal conditions) when installed in an appropriately rated enclosure — extending its applicability to petrochemical, gas processing, and solvent handling facilities.

Quality Assurance & Global Logistics

Every 6ES7312-1AE14-0AB0 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and subjected to a structured pre-shipment inspection protocol. Visual inspection covers label integrity (MLFB barcode, firmware version marking, date code), housing condition (no cracks, deformed connectors, or evidence of rework), and connector pin alignment on the backplane interface. Functional verification includes power-on boot sequence confirmation, LED status check (SF, BF, DC5V, FRCE, RUN, STOP), and MPI communication handshake test using a calibrated PC adapter.

Units are packed individually in anti-static ESD shielding bags (per ANSI/ESD S541), placed in foam-lined inner cartons, and sealed in corrugated outer cartons rated for international air freight handling. Each shipment includes a commercial invoice, packing list, and certificate of origin. HS code 8537.10 is applied for customs classification. Export documentation for dual-use compliance is prepared upon request for regulated destination countries.

Logistics from our Xiamen, China facility: DHL Express and FedEx International Priority typically deliver within 3–5 business days to Europe, North America, and Southeast Asia. UPS Worldwide Expedited is available as an alternative carrier. Sea freight consolidation is available for bulk orders of 10+ units with lead times of 18–25 days to major ports. All shipments are fully insured and tracked from dispatch to delivery confirmation.

A 12-month warranty covers manufacturing defects and DOA (Dead on Arrival) units. Warranty claims are processed within 5 business days of receipt of the returned unit at our Xiamen facility. Replacement units are dispatched by express courier at no additional freight cost to the buyer.
