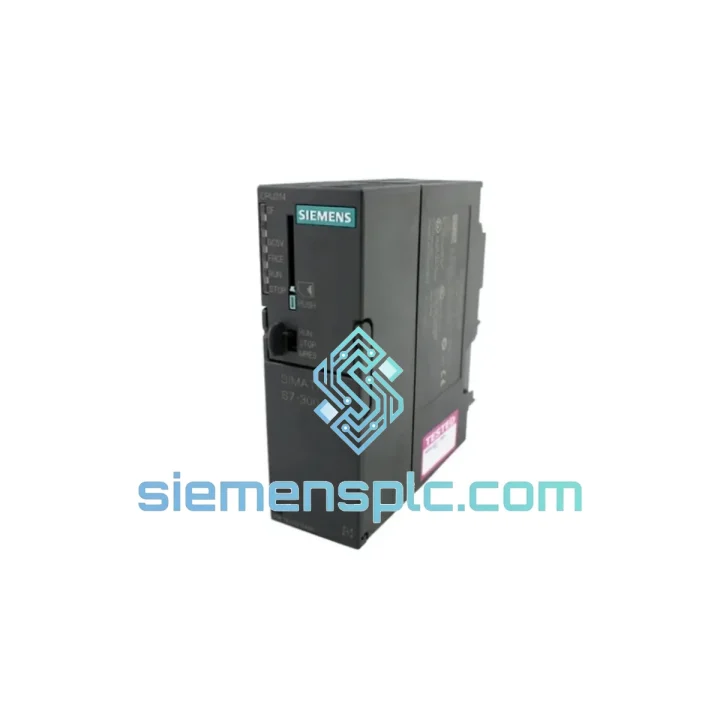

Siemens 6ES7314-1AG13-0AB0 PLC CPU Module

6ES7314-1AG13-0AB0 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your S7-300 rack just threw a CPU fault. The line is stopped. Maintenance is on the phone. You already know the part number: 6ES7314-1AG13-0AB0. What you need now is not a datasheet — you need the module in your hands, seated in the rack, and the line back up before the shift supervisor walks over.

We stock the Siemens 6ES7314-1AG13-0AB0 CPU 314 in Xiamen and ship same-day via DHL Express and FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive delivery within 2–4 business days. No waiting on Siemens distribution lead times. No minimum order quantity. One unit ships just as fast as ten.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Step 1 — Confirm the fault before pulling the CPU. A blinking red SF LED combined with a solid red BF LED almost always points to a hardware fault on the CPU itself, not a field wiring issue. Check the diagnostic buffer in STEP 7 (PLC → Module Information → Diagnostic Buffer) before you touch anything. If you see event ID 0x2521 (internal CPU error) or 0x2522 (watchdog timeout), the CPU is the culprit. If you see 0x3501 (I/O access error), check your SM modules first — a shorted output card can drag the CPU into STOP.

Step 2 — Back up the MMC before removal. The 6ES7314-1AG13-0AB0 stores its program on the Micro Memory Card (MMC), not in internal flash. Before you pull the CPU, use STEP 7 to upload the current program from the MMC to your PG/PC. If the CPU is completely dead and won’t communicate, the MMC itself is usually intact — transfer it directly to the replacement unit. The MMC is not CPU-locked; it will boot in any compatible S7-300 CPU.

Step 3 — No DIP switches on this module. Unlike older S5 hardware, the CPU 314 has no physical address switches. Slot addressing is handled automatically by the S7-300 backplane bus. When you seat the replacement CPU in slot 2 (the mandatory CPU slot on the central rack), it will self-identify its rack and slot position. No manual addressing required.

Step 4 — Firmware compatibility check. The AG13 revision runs firmware V3.3. If you are replacing an older AG10 (V2.6) or AF10 (V2.0) unit, your existing STEP 7 HW Config will flag a mismatch. Open HW Config, delete the old CPU entry in slot 2, insert the 6ES7314-1AG13-0AB0 from the hardware catalog, and re-download the configuration. The user program in the MMC does not need to be recompiled — only the hardware configuration changes.

Step 5 — MPI address retention. The MPI node address is stored in the CPU’s non-volatile memory, not on the MMC. After inserting the replacement unit, verify the MPI address matches your network (default is node 2). Set it via STEP 7: PLC → Edit MPI Address. If your HMI or SCADA polls a specific MPI node, a mismatch will cause immediate communication loss even after the CPU goes to RUN.

Common fault codes to know:

• SF LED solid red, CPU in STOP — Check diagnostic buffer. Most likely a configuration download is required after CPU swap.
• FRCE LED on — Force table is active from a previous session. Clear all forced I/O before going to RUN.
• BF LED blinking — MPI bus fault. Check cable termination resistors at both ends of the MPI segment.
• MMC not recognized — Reseat the card. If still unrecognized, format the MMC in STEP 7 and re-download the program.

Reliability in Harsh Conditions

The S7-300 platform was engineered for the factory floor, not the server room. The 6ES7314-1AG13-0AB0 is rated to operate continuously at 60 °C ambient without derating — relevant in poorly ventilated control cabinets in foundries, cement plants, and outdoor enclosures in tropical climates. The backplane bus connectors use gold-plated contacts with a rated insertion cycle life exceeding 100 mating operations, maintaining signal integrity even in high-vibration environments such as press lines and compressor skids.

Humidity tolerance up to 95 % non-condensing means the module survives the daily temperature swings common in coastal and equatorial installations where condensation inside panels is a recurring problem. The conformal coating on the PCB provides an additional barrier against airborne contaminants — metallic dust, oil mist, and chemical vapors that are present in machining, chemical processing, and food production environments.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal, 10–58 Hz, 0.075 mm amplitude; 58–500 Hz, 1 g). Shock resistance is validated to IEC 60068-2-27 (15 g, 11 ms half-sine). These figures are not marketing claims — they are the same test parameters Siemens uses for qualification of all S7-300 modules, and they reflect the real-world demands of automotive stamping lines and heavy machinery where the CPU rack is mounted directly on the machine frame.

Every unit we ship has been stored in a climate-controlled warehouse and handled under ESD-safe protocols per IEC 61340-5-1. Anti-static bags, foam inserts, and double-wall cartons are standard — not optional upgrades.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Orders confirmed before 15:00 CST ship the same business day. Orders confirmed after 15:00 ship the following morning.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam, Indonesia) — 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait) — 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands, Poland, Italy) — 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico) — 3–5 business days via FedEx International Priority
• South Asia (India, Pakistan, Bangladesh) — 3–4 business days via DHL Express
• Australia & New Zealand — 3–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin. FORM E (ASEAN preferential tariff) is available on request. For regulated industries requiring import documentation, we provide full traceability records on request. Shipment tracking numbers are sent via email and WhatsApp within 2 hours of dispatch.

For orders requiring customs clearance support, our logistics team has handled industrial automation hardware exports to over 60 countries and can advise on HS code classification (8537.10 for PLC modules), declared value documentation, and courier-specific import requirements for your destination country.
