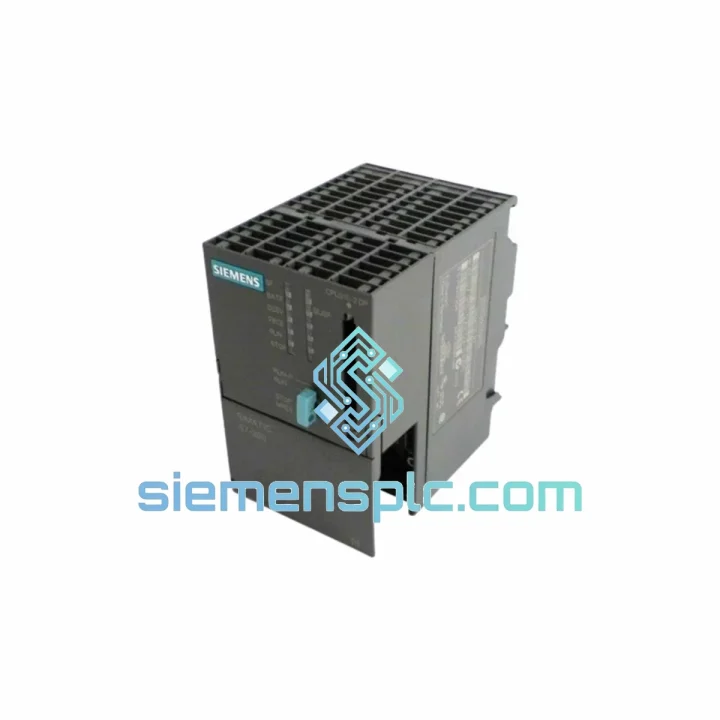

Siemens 6ES7315-2AF03-0AB0 PLC CPU Module – SIMATIC S7-300

Siemens 6ES7315-2AF03-0AB0 CPU 315-2 DP — Backbone Processing Node for PROFIBUS-DP Distributed Control Architectures

The 6ES7315-2AF03-0AB0 is a mid-range central processing unit within the SIMATIC S7-300 series, positioned to handle control tasks that exceed the capacity of compact CPUs while remaining within the cost envelope of large-scale S7-400 deployments. Its defining hardware characteristic is the integrated dual-role PROFIBUS-DP interface, which allows the CPU to operate concurrently as a DP master — polling distributed I/O slaves — and as a DP slave subordinate to a higher-level supervisory controller. This dual-role capability eliminates the need for a dedicated CP 342-5 communication processor in hierarchical network topologies, reducing both rack space consumption and inter-module latency on the backplane bus.

With 128 KB of work memory (RAM) and an integrated 96 KB load memory supplemented by a Micro Memory Card (MMC) slot, the CPU accommodates programs of substantial complexity — multi-loop PID cascades, recipe management blocks, and structured function block libraries — without the memory fragmentation issues that constrain smaller S7-300 variants. Binary instruction processing at 0.3 ms per 1,000 instructions delivers deterministic scan-cycle performance across the full operating temperature range of 0 °C to +60 °C, a specification that holds without derating under continuous industrial duty.

The MPI port (187.5 kbps) provides a dedicated programming and HMI channel, keeping diagnostic traffic isolated from the PROFIBUS-DP process data bus. This separation is architecturally significant: HMI polling, online monitoring, and firmware updates via STEP 7 or TIA Portal do not compete for bandwidth with time-critical I/O cycles on the DP network. The result is a predictable, jitter-free control loop even during active engineering sessions on a live system.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7315-2AF03-0AB0 is built on the S7-300 backplane bus architecture, where the CPU communicates with I/O modules via a parallel P-bus (process data) and a serial K-bus (configuration and diagnostic data). The P-bus operates at a fixed internal clock rate, ensuring that analog and digital module data is transferred to the CPU’s process image within a single scan cycle — a design that eliminates the asynchronous data-age uncertainty common in systems relying on serial fieldbus for local I/O.

The PROFIBUS-DP interface is implemented via a dedicated ASIC (Application-Specific Integrated Circuit) that handles the DP protocol stack independently of the main CPU core. This hardware offload means that DP bus management — token passing, slave polling, error detection, and retry sequencing — consumes zero CPU instruction cycles. The main processor remains fully available for user program execution, maintaining scan-cycle determinism even when the DP network is operating at maximum slave count and 12 Mbps baud rate.

EMC hardening on this module follows Siemens’ standard S7-300 design rules: all signal lines on the PCB are routed with controlled impedance, the backplane connector uses a shielded multi-point ground scheme, and the housing is constructed from die-cast zinc alloy with continuous conductive gaskets at all seams. This construction achieves compliance with IEC 61000-4-4 (electrical fast transient / burst, 2 kV) and IEC 61000-4-5 (surge immunity, 1 kV line-to-line) without external filtering components — a meaningful advantage in environments with variable-frequency drives, contactors, and high-current switching loads operating in close proximity.

The MMC interface uses a non-volatile flash memory card as the load memory medium. Unlike battery-backed SRAM solutions used in earlier S7-300 generations, the MMC retains program code and data blocks without any power source, eliminating the battery-replacement maintenance cycle and the risk of program loss from battery depletion. The CPU copies the program from MMC to work RAM on each power-up, a process that completes in under 3 seconds for typical program sizes, minimizing restart time after planned or unplanned power interruptions.

System Integration Benefits

• Deterministic scan-cycle execution: The hardware-offloaded PROFIBUS-DP ASIC ensures that DP bus management does not introduce variable latency into the CPU scan cycle. Control loops with 10 ms cycle-time requirements remain stable across full DP network load conditions.
• Hierarchical network participation: Simultaneous DP master and DP slave operation allows the 6ES7315-2AF03-0AB0 to occupy an intermediate tier in a three-level automation pyramid — receiving setpoints from an S7-400 or SCADA host while independently managing a local DP slave network of up to 124 nodes.
• Diagnostic transparency: The CPU generates structured diagnostic data for each DP slave, accessible via SFC 13 (DPNRM_DG) and readable by any STEP 7 or TIA Portal engineering station. Fault localization to the individual slave and channel level reduces mean time to repair (MTTR) without requiring physical inspection of the field device.
• Isolated programming channel: The MPI port provides a dedicated path for STEP 7 / TIA Portal connections, HMI variable access, and S7 routing. Engineering traffic on MPI does not share bandwidth with PROFIBUS-DP process data, preserving I/O update rates during online program modifications.
• Scalable I/O addressing: With 2,048 bytes of digital and 512 bytes of analog I/O address space, the CPU supports expansion to multi-rack configurations via IM 360/361 interface modules, accommodating plant sections that grow incrementally without requiring a CPU upgrade.
• Program portability: Programs developed in STEP 7 V5.x are directly executable on this CPU and can be imported into TIA Portal V13+ via the migration wizard, protecting existing engineering investment when upgrading the programming environment.
• Battery-free program retention: MMC-based load memory eliminates scheduled battery replacement, reducing preventive maintenance overhead in installations where panel access is restricted or infrequent.
• Standardized spare-parts ecosystem: The S7-300 platform has been in production since 1994. Replacement modules, racks, power supplies, and interface modules remain available through global distribution channels, providing a long-term spare-parts horizon that is critical for plant assets with 15–25 year operational lifespans.

Quality Assurance & Global Logistics

Every 6ES7315-2AF03-0AB0 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Physical inspection covers housing integrity, connector pin condition, label authenticity, and firmware version cross-referenced against Siemens factory records. Each unit is powered on and subjected to an MPI communication handshake test to confirm processor and interface functionality prior to packaging.

Packaging follows IEC 60068-2-27 shock and IEC 60068-2-64 vibration handling guidelines: the module is placed in a conductive anti-static bag with a humidity indicator card, cushioned within a double-wall corrugated carton rated for international air freight. Units destined for destinations outside China are shipped via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include a commercial invoice, packing list, and certificate of origin for customs clearance. Expedited customs brokerage support is available on request for time-critical project deliveries.

The 12-month warranty covers defects in materials and workmanship under normal operating conditions as defined by Siemens’ published environmental specifications. Warranty claims are processed with a target replacement dispatch of 5 business days from confirmed fault diagnosis. Units returned under warranty are inspected and, where applicable, repaired to factory specification before redeployment.
