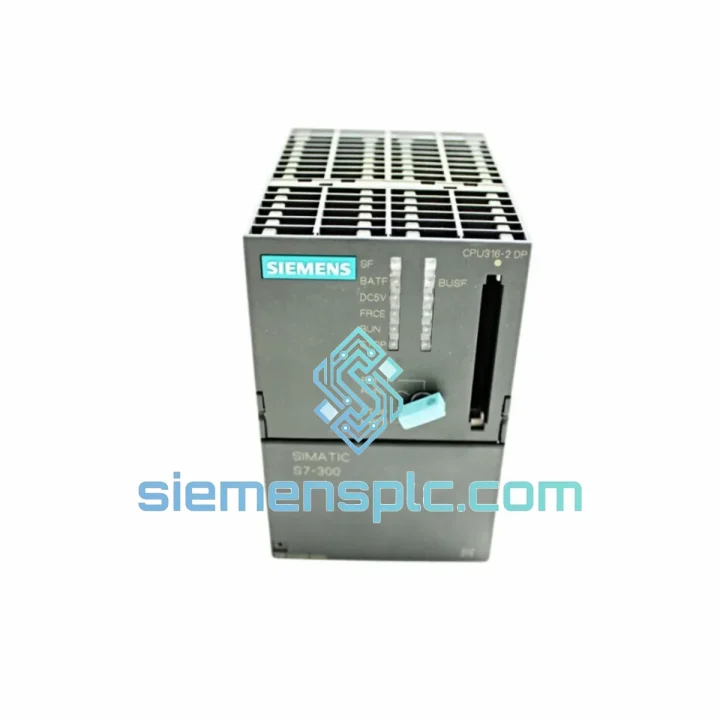

6ES7316-2AG00-0AB0 CPU 316-2DP — Stop the Clock on Your Downtime

Your line is stopped. Every minute costs real money — labor standing idle, production targets slipping, customer commitments at risk. The Siemens 6ES7316-2AG00-0AB0 CPU 316-2DP is on our shelf in Xiamen right now. We ship same day via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive within 48–72 hours of dispatch. This is not a lead-time quote — this is a ready-to-ship unit.

We have handled hundreds of emergency CPU replacements across automotive, petrochemical, food processing, and water treatment plants. We know what you need: the right part, fast, with zero ambiguity about authenticity. That is exactly what we deliver.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a CPU 316-2DP is not plug-and-play if you skip the checklist. Here is what catches engineers off guard on-site:

1. MMC Program Backup — Do This First
Before pulling the failed CPU, confirm whether the program resides on the Micro Memory Card (MMC) or only in RAM. If the MMC is present and the program was saved to it, the card is your recovery path. Remove the MMC from the defective unit before racking the replacement. Insert it into the new CPU before powering on — the CPU will auto-load the program on first boot.

2. MPI Address Conflict
The default MPI address on a new CPU 316-2DP is node 2. If your network already has a device at address 2, you will get a communication fault immediately after startup. Connect via PG/PC before integrating into the live network and set the MPI address to match the original CPU’s configuration. Check your STEP 7 hardware config or the original CPU’s diagnostic buffer if you have access.

3. PROFIBUS-DP Master Configuration
The DP master configuration is stored in the STEP 7 hardware config and downloaded to the CPU. After replacement, you must download the full hardware configuration from your programming station — not just the program blocks. Failure to do this results in the DP master not initializing and all remote I/O going offline. Symptom: BF LED on, all DP slaves showing fault.

4. Firmware Version Mismatch
The 6ES7316-2AG00-0AB0 has had multiple firmware revisions. If your STEP 7 project was compiled against a specific firmware version and the replacement unit carries a different version, you may see compatibility warnings or unexpected behavior on certain SFCs. Check the firmware version via STEP 7 → PLC → Module Information → General tab. Our units are supplied with firmware verified against the most common field-deployed versions.

5. Common Fault Codes to Know

• SF LED solid red — Hardware fault or configuration mismatch. Check diagnostic buffer in STEP 7 (PLC → Module Information → Diagnostic Buffer).
• BF LED flashing — PROFIBUS-DP bus fault. Check cable termination resistors at both ends of the DP segment. Verify all slave addresses are unique and match the hardware config.
• STOP mode after download — Likely a memory card issue or program block mismatch. Perform a memory reset (MRES) and re-download the full project.
• CPU not recognized by STEP 7 — MPI address conflict or wrong baud rate on the PC adapter. Default MPI baud is 187.5 kbps; confirm your PC adapter matches.

6. Battery / Capacitor Backup
The CPU 316-2AG00 uses an internal backup capacitor (no external battery required) to retain the real-time clock and RAM contents during brief power interruptions. After extended storage or a dead unit, the capacitor may be discharged. Allow the replacement CPU to power up for at least 30 minutes before relying on RTC accuracy.

Reliability in Harsh Conditions

The SIMATIC S7-300 platform was engineered for the factory floor, not the server room. The CPU 316-2AG00-0AB0 carries IEC 61131-2 compliance and has been validated against the environmental stresses that end industrial electronics prematurely.

Vibration & Mechanical Shock: Rated to IEC 60068-2-6 (sinusoidal vibration, 10–58 Hz, 0.075 mm amplitude; 58–150 Hz, 1g) and IEC 60068-2-27 (shock, 15g, 11 ms half-sine). This means the CPU survives the constant vibration of press lines, compressor rooms, and mobile equipment enclosures without connector fatigue or PCB cracking.

Thermal Cycling: Operational from 0 °C to +60 °C with storage down to −40 °C. The conformal coating on the PCB prevents condensation-induced short circuits when the panel heats up and cools down through daily production cycles. In high-ambient installations (foundries, cement plants), ensure the control cabinet maintains airflow — the CPU does not have an active fan, relying on convection through the rack.

EMC Immunity: Compliant with EN 61000-6-2 (industrial immunity) covering electrostatic discharge (ESD), radiated RF immunity, electrical fast transient (EFT/burst), and conducted disturbances. In environments with large VFDs, welding equipment, or high-current switching, this matters — the CPU will not reset or corrupt data from nearby electrical noise when properly grounded and installed per SIEMENS installation guidelines.

Humidity: Rated for 10–95% relative humidity, non-condensing. For coastal or tropical installations where humidity regularly exceeds this, cabinet dehumidifiers or sealed enclosures with desiccant packs are recommended — this applies to all S7-300 hardware, not just the CPU.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. Here is how we move parts to your site:

Order Cutoff: Orders confirmed and paid before 14:00 CST are dispatched same business day. Orders after cutoff ship next morning.

Carrier Options:

• DHL Express Worldwide — Typical transit: 1–3 business days to Southeast Asia, Middle East, Europe, and North America. Door-to-door with real-time tracking.
• FedEx International Priority — Alternative for destinations where FedEx has stronger coverage. Same transit window as DHL.
• SF Express International — Cost-effective option for non-urgent shipments to select Asian destinations.

Export Documentation: We prepare commercial invoice, packing list, and certificate of origin for all international shipments. HS Code: 8537.10 (Boards, panels, consoles for electric control). For customers requiring formal customs clearance support (DDP terms), contact us before placing the order.

Packaging: Each CPU is individually packed in anti-static foam with a humidity indicator card, sealed in a moisture-barrier bag, and placed in a double-wall corrugated carton. The unit arrives at your site in the same condition it left our shelf.

Tracking: Tracking numbers are sent via email within 2 hours of dispatch. WhatsApp updates available for urgent shipments on request.
