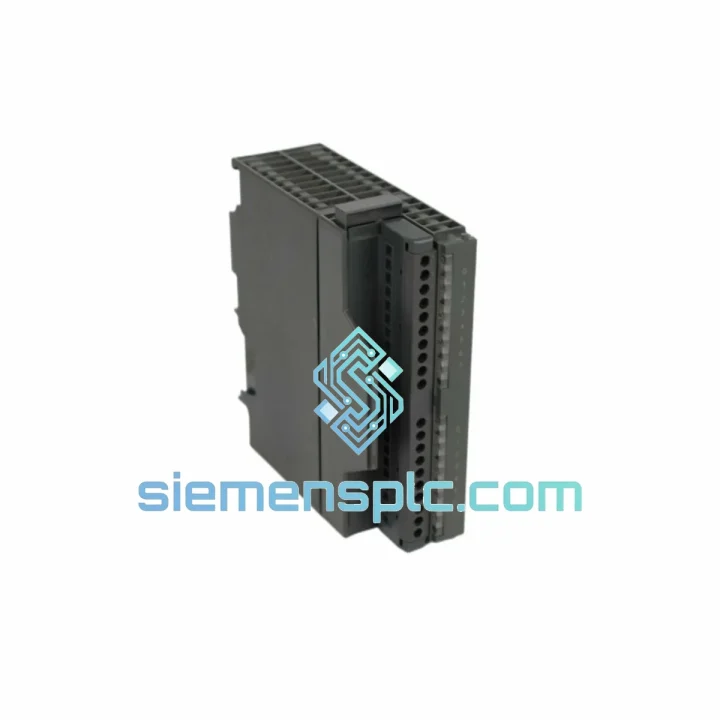

Siemens 6ES7321-1BH82-0AA0 Digital Input Module

6ES7321-1BH82-0AA0 — Stop the Bleed: Every Hour of Downtime Has a Price Tag

Your S7-300 rack just lost a digital input module. The line is down. Maintenance is on the phone. The shift supervisor is standing behind you. You already know the part number — 6ES7321-1BH82-0AA0 — and you need it now, not in three weeks from a slow distributor. We stock it in Xiamen, it ships today, and it lands at your door via DHL Express before your next scheduled maintenance window closes.

This is not a catalog listing. This is a field-ready replacement module, tested, verified, and packed for transit. The SM 321 16DI 24VDC is the backbone of discrete signal acquisition in tens of thousands of S7-300 installations worldwide. When it fails — and after years of 24/7 operation in harsh environments, it eventually will — the only question is how fast you can get a replacement on the rail.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of S7-300 field failures, these are the patterns that show up again and again with the SM 321 16DI:

Fault Code SF (Red LED on module): This is the first thing you see. SF lights up when the module detects an internal hardware fault or a configuration mismatch. Before you condemn the module, open STEP 7 or TIA Portal, go to the hardware diagnostics, and read the interrupt buffer. Nine times out of ten, the SF is caused by a wiring short on one of the 16 input channels — a field cable that has chafed against a grounded enclosure panel. Isolate channels one by one using the diagnostic buffer address to pinpoint the offending channel before pulling the module.

No address assignment needed — but slot position matters: Unlike some third-party I/O systems, the S7-300 SM 321 does not use DIP switches or rotary encoders for addressing. The module address is determined entirely by its physical slot position in the rack. Slot 4 = default start address 0, Slot 5 = 4, and so on, incrementing by 4 bytes per slot. If you are swapping a module from Slot 6 to Slot 5 during a rack rebuild, update your hardware configuration in STEP 7 accordingly — otherwise your process image will be reading the wrong byte offsets and your program logic will behave erratically.

Firmware revision check before substitution: The -1BH82 suffix denotes a specific hardware revision. If you are replacing an older -1BH01 or -1BH02 variant, the module is functionally compatible but verify your STEP 7 hardware catalog is updated to recognize the -1BH82 revision. In TIA Portal, the module is listed under the SM 321 family and will be auto-recognized. In STEP 7 Classic, you may need to install the latest HSP (Hardware Support Package) from Siemens if your catalog predates the -1BH82 release.

Front connector transfer: The 20-pin front connector (6ES7392-1AM00-0AA0) is field-wired and can be unplugged from the failed module and plugged directly into the replacement without rewiring. This is the single biggest time-saver in an emergency swap — your field wiring stays intact. Confirm the connector locking tab clicks into place on the new module before powering up.

Input signal not recognized after replacement: If channels read 0 after a hot swap, check that the CPU is in RUN mode and that the process image update is active for the relevant rack. On distributed racks connected via IM 360/361 interface modules, also verify the IM link is healthy — a flashing BF LED on the IM indicates a broken backplane bus connection, not a module fault.

Wet or contaminated environments: If the failed module shows signs of moisture ingress or corrosion on the backplane connector pins, clean the rack slot contacts with isopropyl alcohol (IPA 99%) before inserting the replacement. Contaminated contacts cause intermittent SF faults that are notoriously difficult to trace without physical inspection.

Reliability in Harsh Conditions

The SM 321 6ES7321-1BH82-0AA0 was not designed for a climate-controlled server room. It was built for the floor — the actual production floor, where ambient temperatures swing, coolant mist drifts across open panels, and VFDs inject conducted noise into every cable run in the cabinet.

The optocoupler isolation stage between the field terminals and the backplane bus provides galvanic separation rated to withstand transient spikes that would destroy unprotected logic inputs. In automotive body shops where resistance welders fire continuously, this isolation is not a nice-to-have — it is what keeps your CPU alive. The module’s EMC design meets EN 61000-4 immunity standards for conducted and radiated interference, which means it holds its signal integrity even when a 75 kW drive starts and stops on the same cabinet bus bar.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal, 10–58 Hz, 0.075 mm amplitude; 58–500 Hz, 1g). In applications mounted on vibrating machinery — compressor skids, press frames, conveyor drive housings — the module’s DIN rail mounting clip and backplane connector maintain contact without the micro-fretting failures that plague cheaper alternatives. The operating temperature ceiling of 60 °C covers the vast majority of industrial panel installations without forced cooling, and the storage rating of −40 °C means modules shipped to cold-climate sites in northern Canada or Siberia arrive ready to install without thermal conditioning.

Every unit we ship from Xiamen is powered up, channel-tested with a calibrated 24 VDC source, and inspected for connector integrity before it goes into ESD-safe packaging. We do not ship untested stock.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It means your emergency order moves fast.

Standard dispatch timeline: order confirmed before 14:00 CST → same-day handover to DHL Express or FedEx International Priority. For most destinations in Europe, North America, Southeast Asia, and the Middle East, transit time is 3–5 business days door-to-door. Australia and South America typically run 5–7 business days. We provide full AWB tracking within 12 hours of dispatch.

For customers in the EU, we can ship DDP (Delivered Duty Paid) via our European logistics partner, eliminating customs clearance delays on your end. For customers in countries with complex import requirements — India, Brazil, Indonesia — we work with established customs brokers and can provide all required commercial documentation: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10 for PLC modules).

Packaging is double-wall corrugated carton with anti-static foam insert. The module is individually bagged in an ESD-shielding bag before foam enclosure. Drop-test certified to ISTA 2A standards. We have shipped to offshore platforms, desert mining sites, and Arctic substations — the module arrives in the same condition it left our warehouse.
