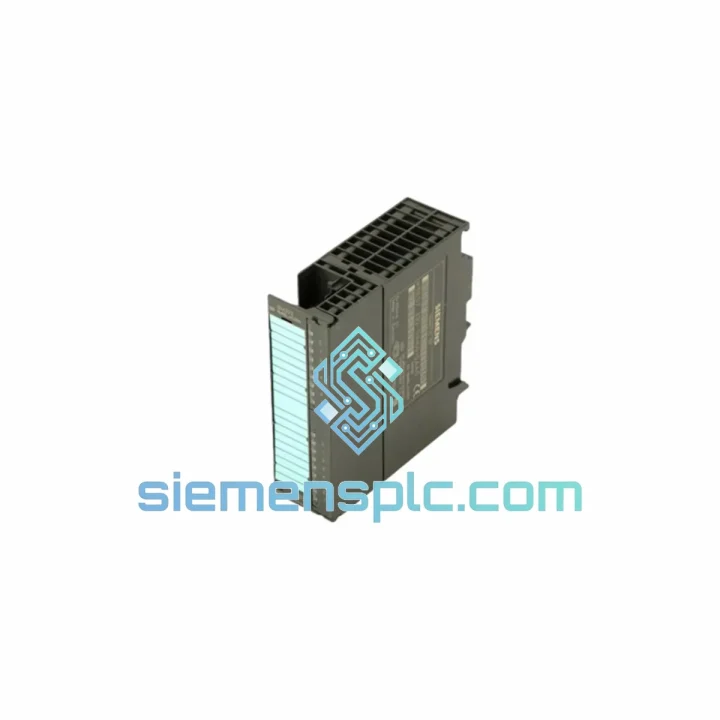

Siemens 6ES7322-1HH00-0AA0 Digital Output Module – SIMATIC S7-300

Siemens 6ES7322-1HH00-0AA0 SM322 — 16-Channel Transistor Output Module in the S7-300 Discrete Control Architecture

The 6ES7322-1HH00-0AA0 is a signal module (SM 322) belonging to the SIMATIC S7-300 modular PLC family. Its primary function within a control loop is to convert binary process commands issued by the CPU into switched 24 VDC sourcing signals that drive field actuators — solenoid valves, motor contactors, indicator lamps, and relay coils — with deterministic timing and per-channel electrical isolation. Sixteen independent PNP transistor outputs are packed into a 40 mm-wide housing, giving system designers a channel density of 0.4 outputs per millimeter of rack width, a figure that directly reduces cabinet footprint and wiring harness complexity in high-I/O-count installations.

Unlike relay-based output modules, the transistor architecture of the SM 322 eliminates mechanical wear, reduces switching latency to the sub-millisecond range, and supports switching frequencies that relay contacts cannot sustain. Each output channel is individually monitored for short-circuit and overload conditions; fault states are reported to the CPU via diagnostic interrupt, enabling the application program to execute fault-handling routines without operator intervention. This closed-loop diagnostic transparency is the defining characteristic that separates the SM 322 from generic I/O expansion hardware.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optocoupler Isolation Architecture. Each of the 16 output channels passes through a dedicated optocoupler stage that galvanically separates the 5 VDC backplane logic domain from the 24 VDC field domain. The isolation barrier sustains 500 VAC test voltage, which suppresses common-mode transients generated by inductive switching — motor contactors and solenoid valves produce back-EMF spikes that can reach several hundred volts in microseconds. The optocoupler clamps these transients before they can propagate to the CPU backplane, protecting the entire rack from field-side disturbances without requiring external surge suppressors on every output terminal.

PNP Transistor Output Stage and Current Sourcing Topology. The output transistors operate in sourcing (PNP) configuration: the module supplies current from the 24 VDC load supply to the actuator, with the return path through the actuator’s own ground. This topology is the standard for European industrial wiring practice and is directly compatible with IEC 61131-2 Type 1 and Type 3 input circuits on downstream devices. The transistor’s saturation voltage drop of ≤ 1.2 V at 0.5 A ensures that actuators rated for 24 VDC receive adequate drive voltage even at the lower end of the permissible supply range (18 VDC).

Per-Channel Electronic Short-Circuit Protection. An integrated current-sensing circuit monitors each output independently. When load current exceeds the protection threshold (typically 1.5–2× rated current), the transistor is switched off within microseconds and a fault bit is set in the module’s diagnostic data record. The CPU reads this record via the backplane bus and can trigger a diagnostic interrupt (OB82) to execute application-level fault handling. After the short-circuit condition is cleared, the output resets automatically — no manual intervention or module replacement is required for transient faults. This self-recovery behavior is critical in unattended remote installations.

EMC Design and Conducted Emission Suppression. The module’s PCB layout routes high-frequency switching currents through a controlled impedance path with decoupling capacitors placed at the transistor drain nodes. Ferrite beads on the backplane bus lines attenuate conducted emissions in the 1–30 MHz range. The metal housing provides shielding against radiated emissions and contributes to the module’s compliance with IEC 61000-4-3 (radiated immunity at 10 V/m). In cabinet installations with variable-frequency drives or high-current bus bars, this inherent EMC hardening reduces the need for additional shielding measures.

Backplane Bus Protocol and Cycle Time Contribution. The SM 322 communicates with the CPU via the S7-300 parallel backplane bus, which transfers I/O data in a single bus cycle. The module’s output data (16 bits) is written by the CPU during the output phase of the scan cycle with a transfer latency of approximately 0.1 ms. This deterministic latency is independent of the number of modules installed on the rack, because the S7-300 backplane uses a fixed-slot addressing scheme rather than a token-passing or arbitration protocol. The result is a predictable worst-case output response time that system designers can incorporate directly into their control loop timing budgets.

System Integration Benefits

• Deterministic Output Latency: Fixed backplane addressing delivers a consistent ≤ 0.1 ms write latency from CPU output image to physical terminal, enabling precise timing in high-speed sorting, labeling, and positioning sequences where output jitter directly affects product quality.
• Diagnostic Interrupt Support (OB82): Per-channel fault detection triggers OB82 in the CPU, allowing the application program to log fault timestamps, isolate the affected output, and continue production on remaining channels — reducing unplanned downtime without requiring a full machine stop.
• TIA Portal and STEP 7 Compatibility: The module is catalogued in both TIA Portal V13+ and STEP 7 V5.x hardware configuration tools. GSD-free integration means no additional driver installation; the hardware catalog entry includes pre-configured diagnostic address assignments.
• Mixed-Rack Flexibility: S7-300 racks support up to 8 signal modules per rack in any combination of digital and analog types. The SM 322 occupies a single slot and draws only 50 mA from the 5 VDC backplane supply, leaving ample current budget for co-installed analog or communication modules.
• Front Connector Wiring Retention: The 20-pin front connector (6ES7392-1AJ00-0AA0 screw-type or 6ES7392-1BJ00-0AA0 spring-type) retains its field wiring when the module is replaced. Module swap during maintenance does not require rewiring, reducing MTTR to the time needed to seat the replacement module and re-download configuration.
• Inductive Load Suppression: The output stage includes internal freewheeling diode circuitry for inductive loads, eliminating the need for external flyback diodes on solenoid valve coils and relay coils. This simplifies field wiring and reduces the component count in the terminal box.
• Status LED per Channel: Each output channel has a dedicated green LED that reflects the logical output state as written by the CPU. During commissioning, engineers can verify actuator wiring by forcing individual outputs in STEP 7 / TIA Portal monitor mode and observing both the LED and the physical actuator response simultaneously.
• Extended Temperature Range for Vertical Mounting: The module is rated to 40 °C in vertical rack orientation and 60 °C in horizontal orientation, accommodating both standard DIN-rail cabinet layouts and space-constrained vertical panel installations without derating the output current.
• Long-Term Spare Parts Availability: The 6ES7322-1HH00-0AA0 is part of Siemens’ industrial lifecycle management program, with committed spare parts availability extending well beyond the standard product phase-out date. This is a material consideration for plant operators who must maintain installed base equipment for 15–20 year asset lifecycles.

Quality Assurance & Global Logistics

Every 6ES7322-1HH00-0AA0 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and carries full Siemens original packaging with factory label, date code, and batch traceability. Incoming inspection at our Xiamen facility covers three checkpoints: physical and label authenticity verification against Siemens security features; functional power-on test confirming backplane communication and LED status; and electrostatic discharge (ESD) packaging inspection with humidity indicator card validation.

We do not supply refurbished, remarked, or grey-market components. Documentation packages — including certificate of conformity and test records — are available on request for regulated industries such as pharmaceutical, nuclear, and rail.

Shipments originate from Xiamen, China, with access to major international freight forwarders and express courier networks (DHL, FedEx, UPS). Standard export documentation (commercial invoice, packing list, country of origin certificate) is prepared for each shipment. For urgent plant-shutdown requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Typical transit times: 3–5 business days to Southeast Asia; 5–7 days to Europe and the Middle East; 7–10 days to the Americas. All shipments are insured against transit damage.
