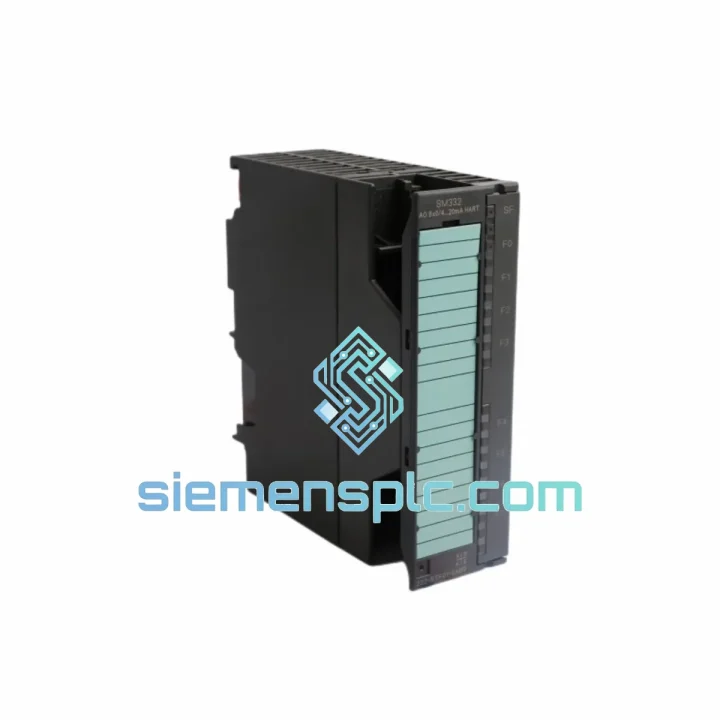

Siemens 6ES7332-8TF01-0AB0 Analog Output Module – SIMATIC S7-300 SM 332

Siemens 6ES7332-8TF01-0AB0 SM 332 — 8-Channel Analog Output Module for SIMATIC S7-300 Process Control

The Siemens 6ES7332-8TF01-0AB0 is a signal module (SM 332) belonging to the SIMATIC S7-300 modular PLC family. It provides eight independently configurable analog output channels capable of driving both voltage and current loads, making it a direct interface between the S7-300 CPU’s control logic and field-level actuators such as control valves, variable-frequency drives, electro-pneumatic positioners, and proportional hydraulic valves. Each channel can be parameterized individually via STEP 7 or TIA Portal without hardware jumpers, eliminating the need for manual reconfiguration when process requirements change.

In a closed-loop control architecture, the 6ES7332-8TF01-0AB0 occupies the output stage of the control chain. The CPU executes the PID algorithm or custom control logic, writes a 16-bit word to the module’s process image output (PIQ), and the module converts that digital value to a calibrated analog signal within one bus cycle. The module’s internal D/A converter delivers 13-bit resolution (including sign bit), which translates to a theoretical step size of approximately 1.22 mV on a ±10 V range or 2.44 µA on a ±20 mA range — sufficient for the vast majority of continuous process control loops in chemical, energy, and manufacturing sectors.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

D/A Conversion Architecture: The 6ES7332-8TF01-0AB0 employs a successive-approximation D/A converter topology with an internal reference voltage source. The 13-bit data word received from the backplane bus is latched into an output register, then converted to an analog voltage or current by the module’s internal signal conditioning circuitry. A dedicated output amplifier stage drives the field terminal with low output impedance for voltage mode (typically < 0.1 Ω) or a precision current source topology for current mode, ensuring stable output even with varying load impedance within the rated range.

Backplane Bus Interface and Cycle Synchronization: The module interfaces with the S7-300 backplane bus via the standard P-bus (peripheral bus) connector. Data transfer is initiated by the CPU’s I/O update cycle. The module’s internal microcontroller handles bus protocol decoding, register mapping, and D/A trigger sequencing. Because all eight channels share a single bus transaction window, the total update latency for all channels is bounded at ≤ 6.4 ms — a deterministic figure that allows control engineers to account for output lag in PID tuning calculations.

EMC Design and Shielding: The module’s PCB layout follows Siemens’ internal EMC design guidelines for industrial environments. The analog output stage is physically separated from the digital logic section by a ground plane partition, reducing capacitive coupling of high-frequency switching noise into the analog signal path. The front connector accepts shielded cables, and the module’s housing provides a shield termination point. This design supports operation in environments with conducted disturbances up to 2 kV (IEC 61000-4-4, burst) and radiated immunity per EN 55011 Class A.

Parameterization Without Hardware Jumpers: Unlike earlier-generation analog modules that required physical jumper settings to select voltage or current output mode, the 6ES7332-8TF01-0AB0 is fully software-parameterized. Channel type, output range, and diagnostic enable/disable are all configured via the hardware configuration tool in STEP 7 or TIA Portal and downloaded to the CPU. This eliminates the risk of jumper misconfiguration during maintenance and allows remote reconfiguration without physical access to the module.

Diagnostic and Fault Reporting Logic: The module continuously monitors each current output channel for wire-break conditions by detecting output current below a threshold (typically < 1 mA in 4–20 mA mode). Short-circuit conditions on voltage outputs are detected by monitoring output current against a maximum threshold. Fault states are reported to the CPU via the diagnostic interrupt mechanism (if enabled in parameterization), allowing the user program to execute fault-handling routines without polling. The group error LED (SF) on the module front panel provides a local visual indicator for maintenance personnel.

System Integration Benefits

• Zero-configuration bus integration: The module plugs directly into any S7-300 mounting rail slot and is automatically recognized by the CPU during startup. No additional bus termination or address switches are required — the slot position determines the logical address, which is assigned in the hardware configuration.
• Software-defined channel configuration: Each of the eight channels can be independently set to voltage or current output mode, with output range selectable from six standard options. Configuration changes take effect after a CPU download, with no physical intervention on the module.
• Deterministic output update timing: The module’s conversion time of ≤ 0.8 ms per channel and ≤ 6.4 ms for all eight channels provides a predictable output latency that can be incorporated into control loop timing analysis. This is essential for cascade control loops where output settling time affects inner-loop stability.
• Integrated diagnostic transparency: Wire-break and short-circuit faults are reported directly to the CPU diagnostic buffer and can trigger diagnostic interrupts (OB82). This allows the user program to implement structured fault responses — such as switching to a safe output value or activating an alarm — without requiring external monitoring hardware.
• Consistent signal accuracy across temperature range: The module’s internal reference and output amplifier are temperature-compensated, maintaining output accuracy within ±0.1% of full scale across the 0–60 °C operating range. This eliminates the need for periodic field calibration in stable industrial environments.
• Compatibility with standard field wiring: The front connector accepts standard 0.25–1.5 mm² conductors. Current output channels are compatible with 2-wire and 4-wire transmitter wiring conventions. Voltage output channels can drive high-impedance loads such as chart recorders, HMI analog inputs, and data acquisition systems.
• Scalable multi-module configurations: Up to 8 SM 332 modules can be installed in a single S7-300 rack (subject to rack power budget), providing up to 64 analog output channels per rack. For larger systems, distributed I/O via ET 200M with IM 153 interface modules allows the same SM 332 modules to be deployed remotely over PROFIBUS DP, maintaining identical parameterization and diagnostic behavior.
• TIA Portal and STEP 7 native support: The module is included in the hardware catalogs of both STEP 7 V5.x and TIA Portal V13 and above. GSD files are not required for S7-300 native rack installation. Module parameters, I/O addresses, and diagnostic settings are managed within the same project environment as the CPU and other modules, reducing engineering overhead.
• Safe-state output behavior on CPU stop: When the CPU transitions to STOP mode, the module’s outputs can be configured to hold their last value or substitute a defined safe value (e.g., 0 mA or 0 V). This behavior is parameterized in the hardware configuration and ensures that field actuators respond predictably during CPU faults or planned stops.
• Long-term spare parts availability: The S7-300 platform has been in production since 1994 and Siemens has committed to spare parts availability through established lifecycle management programs. The 6ES7332-8TF01-0AB0 is a standard catalog item with documented replacement and migration paths to ET 200SP and S7-1500 for future system upgrades.

Quality Assurance & Global Logistics

Every unit of the 6ES7332-8TF01-0AB0 supplied by siemensplc.com is sourced as genuine Siemens original hardware. Incoming units undergo a structured inspection process: label authenticity verification against Siemens factory markings, packaging integrity check, date code and batch traceability review, and a functional pre-shipment check where applicable. Original Siemens factory packaging is preserved wherever available. Certificate of Conformance (COC) and traceability documentation are available upon request for quality-critical procurement processes.

Logistics operations are based in Xiamen, China, a major international trade hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and EMS international postal services. Standard in-stock orders are processed and dispatched within 1–2 business days. Express delivery to major industrial centers in Europe, North America, Southeast Asia, and the Middle East typically achieves transit times of 3–7 business days via DHL or FedEx. All shipments include tracking numbers provided within 24 hours of dispatch. Export documentation — including commercial invoice, packing list, and HS code declaration — is prepared in compliance with Chinese customs regulations and destination country import requirements.

A 12-month warranty applies from the date of shipment. Warranty coverage includes verified manufacturing defects and functional failures under normal operating conditions as specified in the Siemens product datasheet. Units exhibiting non-conformance within the warranty period are eligible for replacement or credit, subject to return inspection. Expedited replacement stock is maintained for critical-path procurement situations.
