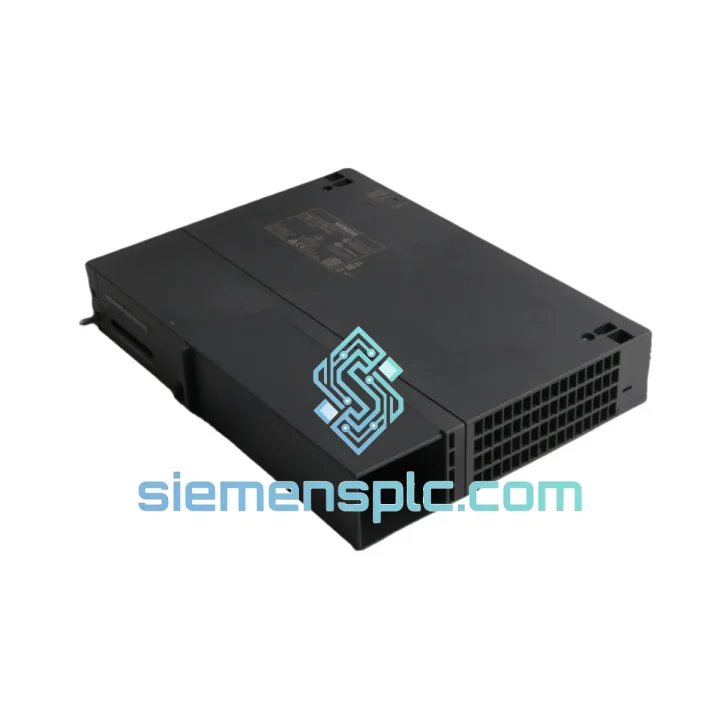

Siemens 6ES7417-5HT06-0AB0 PLC CPU Module – SIMATIC S7-400H

Siemens 6ES7417-5HT06-0AB0 — Hot-Standby Redundant CPU at the Core of High-Availability Control Architectures

The 6ES7417-5HT06-0AB0 is the highest-specification CPU within Siemens’ SIMATIC S7-400H fault-tolerant controller family. Designed for process industries where unplanned downtime carries measurable financial and safety consequences, this module operates as one half of a synchronized CPU pair. Both CPUs execute identical user programs in parallel; the standby unit shadows the master’s process image in real time, enabling a bumpless switchover in under 1 ms upon detection of a master fault — without interrupting field I/O communication or active PROFIBUS DP cycles.

The module occupies a single slot in the dedicated UR2-H rack (6ES7400-2JA00-0AA0) and couples to its redundancy partner via two fiber-optic or copper synchronization links (6ES7960-1AA06-0XA0 / 6ES7960-1AB06-0XA0). The synchronization protocol operates at the backplane bus level, transferring delta process-image data every scan cycle to maintain state parity between both CPUs. This architecture eliminates the single point of failure inherent in standard S7-400 configurations while preserving full compatibility with the existing S7-400 I/O module ecosystem.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture and Scan-Cycle Synchronization
The S7-400H backplane bus operates at a parallel data width of 16 bits with a cycle time that scales with program complexity. The 6ES7417-5HT06-0AB0 implements a deterministic synchronization protocol over the two dedicated sync links: at the end of each OB1 scan cycle, the master CPU transmits a compressed delta of modified process-image registers to the standby CPU. The standby applies this delta before acknowledging readiness for the next cycle. If the acknowledgment does not arrive within the configured watchdog window (typically 10–100 ms, application-dependent), the standby promotes itself to master status and resumes I/O communication without issuing a STOP command to field devices.

EMC Design and Electrical Isolation
The module’s I/O bus interface incorporates transformer-coupled galvanic isolation between the backplane logic domain (5 V DC) and the 24 V DC supply rail. This isolation barrier presents a minimum 500 V AC withstand voltage, suppressing conducted interference from inductive load switching on the same cabinet bus. The PCB layout routes high-frequency clock lines with controlled impedance traces and ground-plane stitching vias at 2.5 mm intervals to limit radiated emissions below EN 61000-6-4 Class A limits. Ferrite bead filters on the MPI/DP interface lines attenuate common-mode noise above 10 MHz, which is particularly relevant in environments with variable-frequency drives operating in the same panel.

Redundancy Arbitration Logic
The arbitration state machine within each CPU maintains three internal states: MASTER, STANDBY, and SOLO. Transition from STANDBY to MASTER is triggered by any of the following: loss of sync link heartbeat, CPU hardware fault signal on the master, or operator-initiated switchover via SFC 90 (H_CTRL). The arbitration logic includes a split-brain prevention mechanism: if both CPUs simultaneously assert MASTER status (e.g., due to a transient sync link interruption), the CPU with the lower rack address yields to STANDBY within 50 ms, preventing conflicting I/O write commands. This deterministic tie-breaking behavior is implemented in firmware and does not require external arbitration hardware.

Memory Subsystem
The 30 MB work memory is implemented as battery-backed SRAM with a data retention time exceeding 10 years at 25 °C under nominal battery conditions. The memory is partitioned into a code segment (OB, FC, FB, DB blocks) and a data segment (instance DBs, process image, retentive markers). The partition boundary is configurable in STEP 7 hardware configuration, allowing engineers to allocate up to 20 MB to data-intensive applications such as recipe management or historian buffering. The integrated load memory interface supports SIMATIC Memory Cards up to 64 MB for project archiving and firmware update without rack removal.

System Integration Benefits

• Zero-Downtime Switchover: The sub-1 ms bumpless failover preserves active PROFIBUS DP token-ring timing, preventing slave timeout faults that would otherwise trigger field device safe-state transitions.
• Full S7-400 I/O Compatibility: All standard SM 421/422/431/432 signal modules operate without modification in H-system racks, protecting existing I/O infrastructure investments during CPU upgrades.
• Deterministic Scan-Cycle Execution: The 0.1 µs binary instruction throughput supports scan cycles below 5 ms for programs up to 10,000 instructions, meeting the timing requirements of fast-loop PID control in compressor surge protection applications.
• Integrated PROFIBUS DP Master: The onboard 12 Mbit/s DP interface eliminates the need for a CP 342-5 communication processor in single-network topologies, reducing rack slot consumption and inter-module latency by one bus arbitration cycle.
• ATEX Zone 2 Certification: Factory-certified for use in explosive atmospheres (gas group IIC, temperature class T4), enabling direct deployment in petrochemical processing units without additional enclosure engineering.
• Diagnostic Transparency: The CPU populates the S7 diagnostic buffer with timestamped entries (1 ms resolution) for all system events including sync link interruptions, memory parity errors, and I/O module removal, enabling root-cause analysis without external data loggers.
• TIA Portal and STEP 7 Dual Support: Compatibility with both engineering environments allows brownfield integration into existing STEP 7 projects while providing a migration path to TIA Portal V17+ for future IIoT connectivity via OPC UA server on CP 443-1 Advanced.
• Scalable Redundancy Topology: The H-system supports mixed-mode operation where non-critical I/O subsystems connect to standard S7-400 racks via PROFIBUS DP, while safety-critical loops use F-modules (SIL 2/3) within the H-rack — all managed from a single CPU project.
• Long-Term Spare Parts Availability: Siemens maintains production and spare-parts supply for the S7-400H platform through its published lifecycle roadmap, with extended support contracts available beyond standard product phase-out dates.
• Retentive Data Integrity: Battery-backed SRAM retains process counters, recipe parameters, and PID tuning values across power cycles and CPU switchovers, eliminating re-initialization sequences that would interrupt continuous process flows.

Quality Assurance & Global Logistics

Every 6ES7417-5HT06-0AB0 unit dispatched from our Xiamen warehouse is sourced directly from Siemens-authorized distribution channels. Each module arrives in its original Siemens ESD-safe packaging with the factory serial number label and firmware version sticker intact. Prior to shipment, our technical team performs a power-on functional test: the CPU is seated in a test rack, powered via a PS 407, and brought to RUN state with a diagnostic program that verifies work memory integrity (full read/write cycle across all 30 MB), MPI/DP interface communication at 12 Mbit/s, and sync link handshake with a paired CPU. Units that do not pass all test criteria are quarantined and returned to the supplier.

Shipment from Xiamen, China reaches major industrial hubs on the following typical transit schedules: Southeast Asia 2–4 business days (DHL Express), Europe 3–5 business days (FedEx International Priority), North America 4–6 business days (UPS Worldwide Express), Middle East and South Asia 3–5 business days. DDP (Delivered Duty Paid) terms are available for EU, US, and AU destinations, eliminating customs clearance complexity for procurement teams. All shipments include a commercial invoice with HS Code 8537.10 pre-declared, a packing list with serial numbers, and a certificate of conformity. Export documentation for dual-use goods is prepared in compliance with Chinese export control regulations and EU Regulation 2021/821 where applicable.

A 12-month warranty covers all units against manufacturing defects and premature component failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with advance replacement available for customers with active service agreements.
