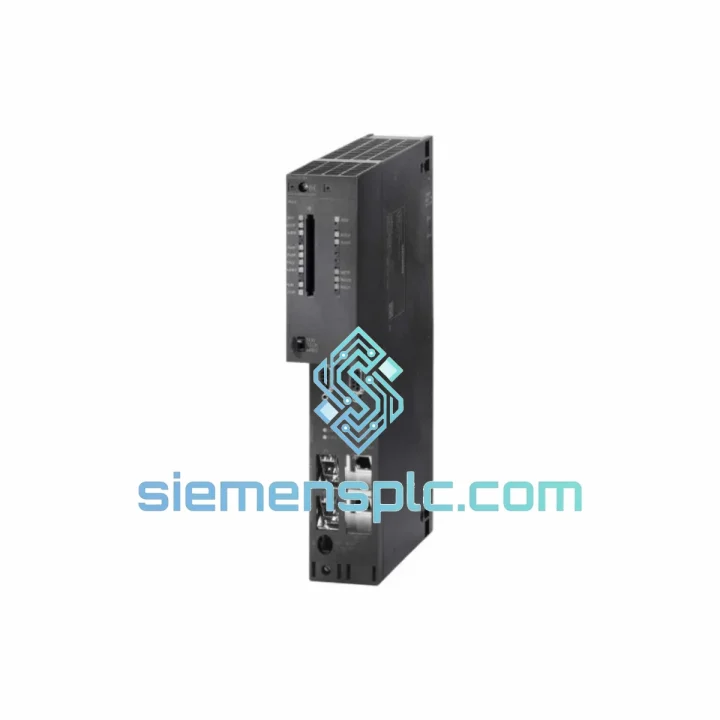

Siemens 6ES7412-5HK06-0AB0 PLC CPU Module – SIMATIC S7-400H

Siemens 6ES7412-5HK06-0AB0 CPU412-5H PN/DP — Fault-Tolerant Redundant Processor for Continuous-Process Control

In process-critical installations where an unplanned controller outage carries measurable financial and safety consequences, the architecture of the central processing unit determines the operational floor of the entire control system. The Siemens 6ES7412-5HK06-0AB0 is the CPU412-5H PN/DP processor module within the SIMATIC S7-400H fault-tolerant platform. It is designed to operate exclusively in a paired H-system configuration, where two physically independent CPU modules execute identical control programs in lock-step synchronization, with automatic bumpless switchover to the standby unit upon detection of any hardware or firmware fault in the active CPU. The switchover time is deterministic and sub-100 ms under standard H-sync fiber-optic link conditions, ensuring that the process control loop is not interrupted at the application layer.

The 6ES7412-5HK06-0AB0 carries the HK06 hardware revision designation, corresponding to firmware V6.0. This revision introduced measurable improvements to the H-synchronization protocol — specifically, reduced synchronization frame latency and enhanced PROFINET IO diagnostic reporting, which allows maintenance engineers to identify degraded-link conditions before they escalate to a switchover event. The module integrates two distinct communication interfaces on a single hardware carrier: one PROFINET IO interface with an embedded 2-port managed switch (supporting MRP ring topology for media redundancy), and one combined MPI/PROFIBUS-DP interface operating at up to 12 Mbit/s. This dual-interface architecture eliminates the need for a dedicated communication processor (CP) module in the majority of distributed I/O topologies, reducing rack slot consumption and simplifying the hardware bill of materials.

The CPU’s working memory is 512 KB, with program and data memory partitioned independently. Instruction cycle performance is rated at 0.06 µs per binary logic operation and 0.12 µs per fixed-point arithmetic operation, placing it in the entry-level tier of the S7-400H family while still providing sufficient throughput for control loops with scan times in the 10–50 ms range. The module draws its operating power from the S7-400 backplane bus, requiring no external 24 VDC supply connection at the module level. Operating temperature range is 0 °C to +60 °C, with storage rated to −40 °C / +70 °C, consistent with IEC 61131-2 environmental class requirements for industrial panel installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7412-5HK06-0AB0 implements a dual-CPU arbitration architecture in which both the active and standby processors execute the same OB/FB/FC program cycle simultaneously. State synchronization is achieved via a dedicated fiber-optic H-sync link rather than through the shared backplane bus, which is a deliberate design decision: isolating the synchronization channel from the I/O data bus prevents a backplane communication anomaly from corrupting the synchronization state machine. The fiber-optic medium also provides galvanic isolation between the two CPU racks, which is significant in installations where the two redundant racks are physically separated — a common practice in high-availability substations and offshore platforms where a single physical event (fire, flooding) must not disable both controllers simultaneously.

The H-sync protocol operates at the firmware level below the STEP 7 operating system scheduler. At each OB1 scan cycle boundary, the active CPU transmits a synchronization frame containing the current process image output (PIO) snapshot and internal flag states to the standby CPU. The standby CPU validates this frame against its own independently computed PIO. If the two images diverge beyond a configurable tolerance threshold — indicating a computation fault in one of the CPUs — the H-system fault management logic initiates a controlled switchover. This divergence-detection mechanism is fundamentally different from a simple heartbeat watchdog: it validates computational correctness, not merely processor liveness.

From an EMC perspective, the module’s backplane connector uses a shielded multi-layer PCB trace layout with differential signaling on the high-speed bus lines. The S7-400 rack’s backplane bus operates at a fixed clock rate with deterministic arbitration, meaning that I/O module access latency is bounded and does not exhibit the jitter characteristics of shared-medium bus architectures. This determinism is essential for the H-sync protocol, as variable scan cycle times would complicate the synchronization frame timing and increase the probability of false divergence detections.

The integrated PROFINET IO controller supports IRT (Isochronous Real-Time) mode with a minimum send clock of 250 µs, enabling time-synchronized motion control applications where applicable. The MRP (Media Redundancy Protocol) capability of the 2-port switch allows the CPU to participate in a ring topology with a switchover time of <200 ms (MRP) or <1 ms (MRPD — Media Redundancy for Planned Duplication), providing network-level redundancy independent of the CPU-level H-system redundancy.

System Integration Benefits

• Bumpless Process Continuity: The H-system switchover mechanism transfers control to the standby CPU without generating a process image discontinuity. Output modules do not see a dropout pulse during switchover, which is critical for analog output loops driving control valves or variable-speed drives.
• Online Program Modification: The CPU supports STEP 7 online change (OLC) and TIA Portal online modification while the H-system is in redundant operation. Program blocks can be downloaded to the active CPU, which then synchronizes the updated program to the standby CPU without interrupting the scan cycle.
• Integrated Dual-Protocol Communication: The coexistence of PROFINET IO and PROFIBUS-DP on a single module allows the 6ES7412-5HK06-0AB0 to serve as the master for both modern PROFINET-based ET 200SP/MP distributed I/O and legacy PROFIBUS-DP field devices (transmitters, drives, valve positioners) without requiring a CP 443 communication processor.
• Deterministic Scan Cycle: The S7-400 backplane bus uses a time-sliced arbitration scheme that guarantees each I/O module a fixed access window per scan cycle. This eliminates bus contention-induced scan time variability, which is a prerequisite for stable PID loop execution in fast process applications.
• Transparent System Diagnostics: The module populates the SIMATIC diagnostic buffer with structured fault records including timestamp, fault class, module address, and fault code. These records are accessible via STEP 7 online diagnostics, TIA Portal, SIMATIC IT, or OPC UA without requiring a separate diagnostic gateway.
• Scalable I/O Capacity: With support for up to 131,072 digital and 4,096 analog I/O points, the CPU can address large distributed I/O networks spanning multiple ET 200 remote stations across PROFINET and PROFIBUS segments simultaneously.
• Safety System Upgrade Path: The S7-400H platform supports a migration path to S7-400F/FH (fail-safe) operation by adding F-capable I/O modules and activating the F-runtime license. This allows an existing H-system installation to be upgraded to SIL 2/3 capability without replacing the CPU hardware.
• Long-Term Spare Parts Availability: Siemens has maintained the S7-400H platform under its long-term availability program. Replacement modules, memory cards, and H-sync components remain available through authorized channels, protecting the capital investment in existing installations over a 10–15 year operational horizon.

Quality Assurance & Global Logistics

Every 6ES7412-5HK06-0AB0 unit supplied by siemensplc.com is sourced from verified Siemens-authorized distribution channels. Upon receipt, each module undergoes a structured incoming inspection protocol: label authenticity verification against Siemens holographic security features, housing and connector integrity check, firmware version confirmation via STEP 7 online identification, and ESD packaging integrity assessment. Units that do not pass all inspection criteria are quarantined and not offered for sale.

Packaging for international shipment uses anti-static ESD bags with humidity indicator cards, enclosed in high-density polyethylene foam-lined cartons rated for air freight handling per ISTA 2A test protocol. Export documentation provided as standard includes commercial invoice, packing list, certificate of origin (China), and Siemens product datasheet. HS code 8537.10 is applied for customs classification. Shipments originate from our warehouse in Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Express available as carrier options. Transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days, Middle East 4–5 business days. All shipments include full tracking and are covered by carrier insurance. A 12-month warranty against manufacturing defects applies to all new units, with RMA processing handled directly from Xiamen.
