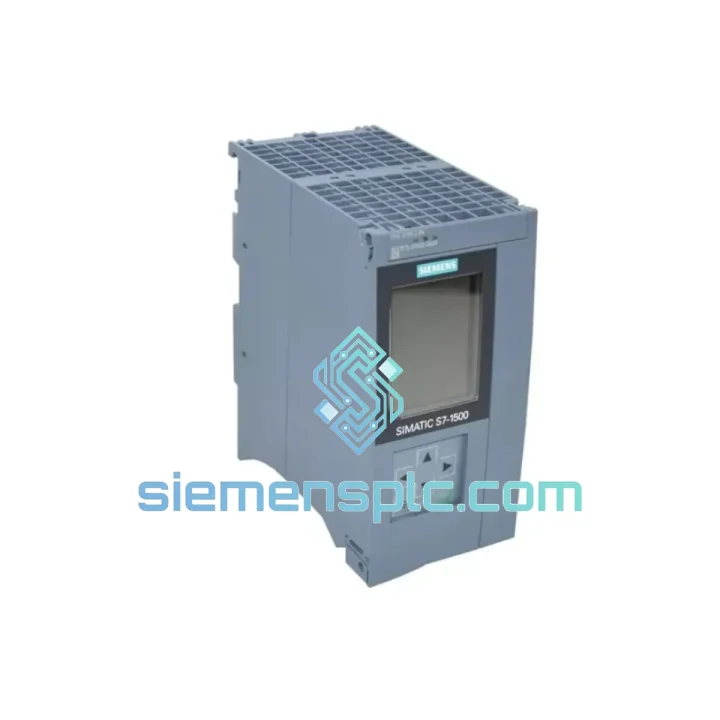

Siemens 6ES7515-2TN03-0AB0 PLC CPU Module – SIMATIC S7-1500

6ES7515-2TN03-0AB0 CPU 1515TF-2 PN: Integrated Fail-Safe and Motion Control on a Single Backplane Node

The Siemens 6ES7515-2TN03-0AB0 is the CPU 1515TF-2 PN within the SIMATIC S7-1500 product line — a controller that consolidates standard automation logic, IEC 62061 SIL 2 / ISO 13849 PLe Cat. 4 functional safety, and up to 30 coordinated motion axes into one backplane slot. Its 1 ns bit-processing time and 3 MB program / 20 MB data work memory place it at the upper tier of the S7-1500 range, making it the preferred selection for machine builders and plant engineers who need deterministic cycle performance without the cost and wiring overhead of a separate safety controller.

Unlike architectures that route safety signals through a gateway or co-processor, the TF variant executes F-programs natively within the same CPU runtime. PROFIsafe frames travel over the same PROFINET IRT fabric used by standard I/O, eliminating the latency penalty of a secondary safety bus. This architectural decision has measurable consequences for system design: cabinet footprint shrinks, inter-controller synchronization jitter is eliminated, and the TIA Portal project remains a single engineering artifact rather than two parallel projects that must be kept in version lock-step.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture and Cycle Determinism
The S7-1500 backplane bus operates as a synchronous serial bus with a fixed slot-scan cycle. The CPU 1515TF-2 PN acts as the bus master, polling each I/O module in a deterministic sequence every program cycle. Because the bus arbitration is handled in dedicated silicon rather than in firmware, the inter-module communication latency is fixed and does not scale with the number of installed modules — a property that distinguishes the S7-1500 backplane from earlier S7-300/400 designs where bus cycle time was a function of module count. For the 6ES7515-2TN03-0AB0, the backplane bus bandwidth is sufficient to sustain full data exchange with up to 32 local I/O modules within a single OB1 cycle without introducing measurable jitter into the motion interpolation clock.

Dual-Channel Safety Execution Model
The TF designation indicates that the CPU contains two independent processing channels for F-program execution, cross-checking results before writing to F-I/O outputs. This 1oo2D (one-out-of-two with diagnostics) internal architecture is what allows the device to achieve SIL 2 / PLe without external voter hardware. The F-runtime is isolated from the standard runtime at the memory management level: F-data blocks are write-protected against standard OBs, and any attempt by a non-F program element to write to an F-DB triggers a safety-relevant fault that forces the F-runtime into a defined safe state. This memory partitioning is enforced in hardware, not solely by the operating system.

PROFINET IRT and Isochronous Motion Synchronization
The two PROFINET ports support Isochronous Real-Time (IRT) communication with a minimum send clock of 250 µs. In IRT mode, the switch fabric reserves dedicated time slots for IRT frames, preventing standard TCP/IP traffic from interfering with motion-critical data. The CPU 1515TF-2 PN uses this mechanism to synchronize the interpolation cycle of its technology objects with the actual position feedback arriving from SINAMICS drives or encoder modules. The result is a closed-loop position control chain where the transport delay between the CPU interpolator and the drive setpoint register is bounded to within ±1 µs — a prerequisite for multi-axis electronic gearing and cam synchronization applications.

EMC Design and Noise Immunity
The module housing is a die-cast zinc alloy frame with continuous EMC gaskets on all mating surfaces. Signal lines on the internal PCB are routed with controlled impedance and ground-plane shielding between the backplane bus connector and the PROFINET PHY. The 24 V DC supply input incorporates an integrated transient voltage suppressor (TVS) rated to absorb 1 kV / 1 µs pulses per IEC 61000-4-5, and the PROFINET ports include common-mode chokes and isolation transformers rated to 1.5 kV. These measures allow the CPU to operate without additional external filtering in environments with variable-frequency drives, contactors, and welding equipment sharing the same cabinet ground bus.

Integrated LCD Diagnostics Interface
The front-panel LCD is not a cosmetic feature — it provides direct access to IP address configuration, module diagnostics, firmware version display, and force table status without requiring a connected engineering station. In commissioning scenarios where TIA Portal access is unavailable, a technician can use the LCD navigation keys to assign a temporary IP address, read the last 10 diagnostic buffer entries, and confirm the CPU operating mode. This reduces mean time to repair (MTTR) in field service situations.

System Integration Benefits

• Single-Controller Safety Architecture: F-programs and standard programs share one CPU, one TIA Portal project, and one PROFINET network. No inter-controller safety handshake protocol is required, removing a class of integration faults that commonly appear in dual-controller safety architectures during firmware update cycles.
• Native OPC UA Server: The CPU 1515TF-2 PN exposes process data and diagnostic information via an embedded OPC UA server (no additional CP module required). MES and SCADA systems can subscribe to data nodes at configurable publish intervals down to 100 ms, enabling real-time production monitoring without polling overhead on the PROFINET bus.
• Technology Object Scalability: The 30-axis technology object capacity covers the majority of multi-axis machine configurations — rotary indexers, gantry systems, flying shears, and winding machines — without requiring a motion co-processor. Axis types include speed axis, positioning axis, synchronous axis, external encoder, and output cam, all configured within TIA Portal’s Motion Control wizard.
• Distributed Safety I/O Flexibility: PROFIsafe F-I/O can be distributed across ET 200SP F-modules, ET 200MP F-modules, and SINAMICS drives with integrated STO/SS1/SS2 functions. No dedicated safety gateway or F-link module is needed between the CPU and the F-devices, reducing BOM cost and eliminating a potential single point of failure in the safety communication path.
• Diagnostic Transparency via STEP 7 Diagnostic Buffer: The CPU maintains a circular diagnostic buffer with up to 3,200 entries, each timestamped to 1 ms resolution using the integrated real-time clock. Entries include module faults, communication errors, F-runtime events, and user-defined diagnostic messages from program blocks. This buffer is accessible via TIA Portal, the LCD, and OPC UA simultaneously.
• Firmware Cybersecurity Features (V3.0+): The firmware implements role-based access control with up to 4 user levels, encrypted communication for TIA Portal connections (TLS 1.2), and integrity protection for the SIMATIC Memory Card content. These features address IEC 62443-3-3 requirements for industrial network security without requiring a separate security appliance.
• Seamless SINAMICS Drive Integration: When paired with SINAMICS S120 or G120 drives via PROFINET IRT, the CPU 1515TF-2 PN exchanges drive control words, setpoints, and actual values within the same IRT send clock as the motion interpolation cycle. Drive parameter access via PROFIDRIVE acyclic channel is available from standard function blocks in the TIA Portal drive library, eliminating custom communication programming.
• Hot-Swap Compatible I/O Modules: S7-1500 I/O modules on the local backplane support removal and insertion under power (RIUP) for non-safety modules. The CPU manages the bus reconfiguration automatically and logs the event to the diagnostic buffer, allowing maintenance personnel to replace a failed I/O module without stopping the entire machine cycle — a significant advantage in continuous-process applications.

Quality Assurance & Global Logistics

Every 6ES7515-2TN03-0AB0 unit supplied by siemensplc.com is sourced through verified channels and subjected to a structured incoming inspection protocol before dispatch:

• Label and Hologram Authentication: The Siemens product label, 2D DataMatrix code, and holographic security seal are verified against Siemens’ published authentication specifications. Units with tampered or missing seals are quarantined and not offered for sale.
• Firmware Version Confirmation: Each CPU is powered on and the firmware version is read from the LCD and cross-referenced against the order number to confirm the correct hardware revision is being shipped.
• Original Packaging Integrity: Where factory-sealed packaging is intact, it is not opened. Units are shipped in anti-static bags inside foam-lined export cartons rated for air freight vibration per ISTA 2A.
• 12-Month Warranty: All units carry a 12-month warranty against manufacturing defects from the date of delivery. Warranty claims are processed with a target response time of 48 hours and replacement unit dispatch within 5 business days.

Logistics operations are based in Xiamen, China (Fujian Province), with direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port for sea freight. Standard dispatch lead time for in-stock units is 1–3 business days. Express air freight options (DHL Express, FedEx International Priority, UPS Worldwide Express) are available to most destinations with transit times of 3–7 business days. Export documentation — including commercial invoice, packing list, certificate of origin, and HS 8537.10 customs declaration — is prepared for every international shipment. For project orders requiring multiple line items or phased delivery schedules, a dedicated logistics coordinator is assigned to manage the shipment plan.
