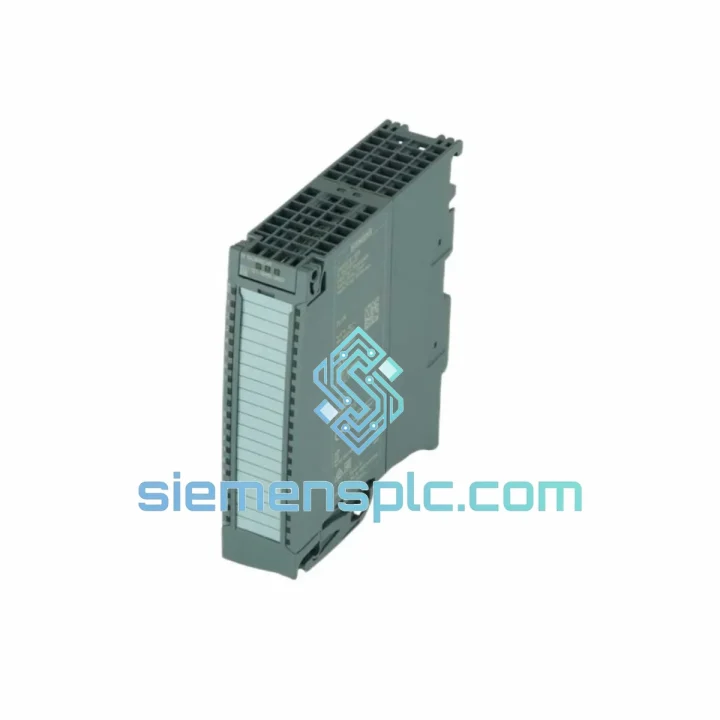

Siemens 6ES7521-1BH00-0AB0 Digital Input Module

6ES7521-1BH00-0AB0 — Every Hour of Downtime Costs You Money. We Ship Today.

Your S7-1500 rack just threw a fault. The line is stopped. Maintenance is standing by. You’ve already pulled the 6ES7521-1BH00-0AB0 and confirmed it’s the culprit — now you need a replacement on-site before the next shift, not next week. We stock this module in Xiamen and dispatch same-day via DHL Express or FedEx Priority. Most destinations in Southeast Asia receive within 24–48 hours. Europe and North America within 3–5 business days. No middlemen, no delays, no excuses.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed 6ES7521-1BH00-0AB0:

• TIA Portal diagnostic buffer shows “Module removed or not responding” or “I/O access error” on the DI slot — this is almost always a dead backplane connector or failed ASIC on the module itself, not a CPU issue.
• Channels reading stuck HIGH or stuck LOW across all 16 inputs simultaneously, even with field wiring disconnected — internal input buffer failure, replace the module.
• Intermittent hardware interrupt storms (OB40 called continuously) with no corresponding field signal change — check for EMI first, but if shielding is intact, the interrupt logic on the module is suspect.
• SF LED solid red with no specific channel fault in diagnostics — firmware mismatch between module hardware revision and TIA Portal hardware catalog. See firmware note below.

Step-by-step hot-swap replacement procedure:

1. Inhibit the slot in TIA Portal (Online → Module → Inhibit) or set the CPU to STOP if the process permits. Never pull a live module on a running safety-rated rack without authorization.
2. Label and photograph all field wiring before disconnecting the front connector. The 40-pin front connector on the -1BH00-0AB0 is keyed but wiring errors still happen under pressure.
3. Release the front connector by pressing the orange locking lever downward, then pull the connector body straight out. Do not twist.
4. Slide the module out of the rail slot. The backplane bus connector disengages automatically. Inspect the gold contacts on the replacement unit before insertion — any oxidation or bent pins must be addressed.
5. Insert the replacement module and press firmly until the locking tab clicks. Reconnect the front connector.
6. Firmware check: The -0AB0 hardware revision ships with firmware V2.0. If your TIA Portal project was created with an older hardware catalog entry (-0AA0 revision), update the catalog and re-download the hardware configuration. Mismatched firmware will cause the SF LED to stay red even with correct wiring.
7. No address switch or DIP switch configuration required — the S7-1500 system uses automatic slot addressing via the backplane. The module self-identifies its slot position on power-up. No manual address setting needed, unlike legacy S7-300 modules.
8. Verify diagnostics in TIA Portal Online view. All 16 channels should show green. Trigger a test input on each channel group to confirm signal acquisition before returning the line to production.

Firmware compatibility matrix:

• TIA Portal V13 SP1 → Firmware V1.0 minimum
• TIA Portal V14 and above → Firmware V2.0 recommended (matches -0AB0 hardware revision)
• If replacing -0AA0 with -0AB0: update hardware catalog in TIA Portal, compile, and re-download HW config. No PLC program changes required.

Reliability in Harsh Conditions

The 6ES7521-1BH00-0AB0 is not a office-grade component. It is built to operate continuously in environments that would kill consumer electronics within weeks. The module’s conformal-coated PCB resists condensation and airborne contaminants common in food processing, chemical, and coastal industrial facilities. Vibration resistance is validated to IEC 60068-2-6 (sinusoidal, 5–150 Hz, 1g) and IEC 60068-2-27 (shock, 15g / 11 ms), covering the mechanical stress profiles of press lines, compressor rooms, and mobile equipment enclosures.

Operating temperature range of 0 °C to +60 °C covers the vast majority of panel installations worldwide. For installations in unheated outdoor enclosures in northern climates, pair with a panel heater and verify ambient stays above 0 °C at the module face. The IP20 rating means the module relies on the enclosure for environmental protection — ensure your cabinet door seals are intact if the installation is in a dusty or wet area.

The optocoupler-isolated input stage provides 500 V AC galvanic isolation between field wiring and the backplane bus, protecting the CPU from voltage transients induced by inductive loads switching on the same 24 V DC rail. In high-noise environments (VFD-heavy panels, large contactors), this isolation is the difference between a stable system and unexplained CPU faults.

Mean Time Between Failures (MTBF) for the S7-1500 DI module family exceeds 500,000 hours under rated conditions. In practice, failures are almost always caused by external factors: sustained overvoltage on input channels, reverse polarity wiring, or physical damage during panel work — not intrinsic component failure. A module that has failed in service should be inspected for burn marks on the front connector pins before assuming the replacement will survive the same environment.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected cities in Southeast China, with direct access to Xiamen Gaoqi International Airport and major freight forwarder hubs. This geography is not accidental: it allows us to reach most of Asia within 24–48 hours and Europe or North America within 3–5 business days on express services.

Standard shipping workflow for urgent orders:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Order confirmed after 14:00 CST: Next business day dispatch. We will notify you of the cutoff status when you contact us.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.
• Customs documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared for all shipments. For EU destinations, EORI-compliant documentation included. For US destinations, EEI filing handled where required.
• Packaging: ESD-safe anti-static bag, foam-lined carton, and outer corrugated box. Module is secured against movement to prevent backplane connector damage in transit.
• Insurance: Full declared-value cargo insurance available on request. Recommended for orders above USD 500.

Destinations we ship to regularly: Singapore, Malaysia, Thailand, Vietnam, Indonesia, Philippines, India, South Korea, Japan, Germany, Netherlands, Poland, Czech Republic, United Kingdom, United States, Canada, Mexico, Brazil, Australia, UAE, Saudi Arabia, South Africa. If your country is not listed, contact us — we ship to 120+ countries.
