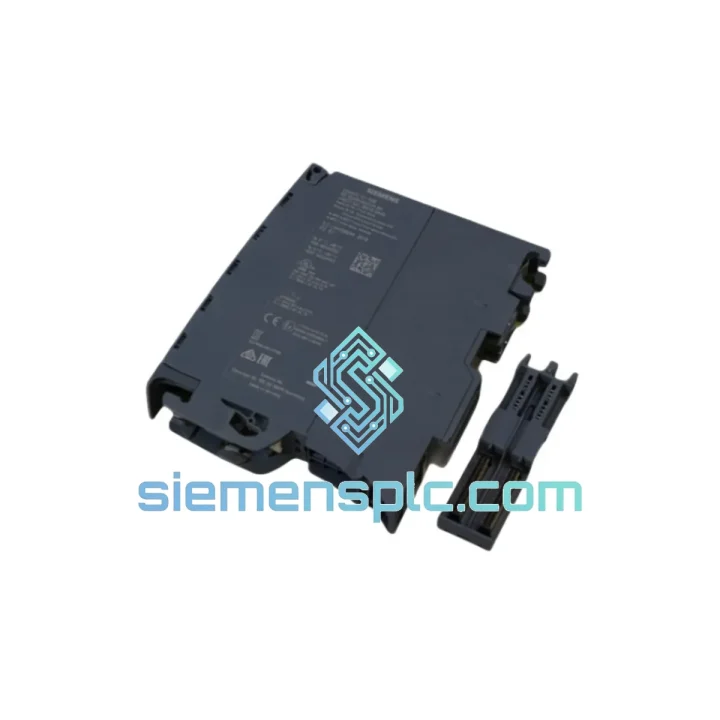

Siemens 6ES7522-1BH10-0AA0 Digital Output Module – S7-1500

Siemens 6ES7522-1BH10-0AA0 — 16-Channel Transistor Output Module for SIMATIC S7-1500 Discrete Control Loops

The 6ES7522-1BH10-0AA0 is a 16-channel sourcing (PNP) transistor digital output module belonging to the SIMATIC S7-1500 peripheral I/O family. Each channel delivers a switched 24 VDC signal at up to 0.5 A continuous current, with an aggregate module current ceiling of 4 A. The module occupies a 35 mm slot on the S7-1500 or ET 200MP backplane and communicates with the CPU exclusively over the high-speed U-connector backplane bus — a parallel, synchronous interface that transfers I/O data within a single CPU scan cycle, eliminating the latency penalty associated with fieldbus-coupled remote I/O in time-critical discrete sequences.

In a control loop context, this module sits at the actuator boundary: it receives binary command words from the CPU’s process image output (PIO) table and converts them into galvanically isolated 24 VDC switching events. The transistor output stage — rather than a relay — provides sub-millisecond switching response (typ. <0.5 ms ON, <0.5 ms OFF under resistive load), which is essential for solenoid valve sequencing in pneumatic motion systems where dwell-time accuracy directly affects positional repeatability. The absence of mechanical contacts also eliminates contact bounce and extends service life to >10⁷ switching cycles under rated conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The output stage of the 6ES7522-1BH10-0AA0 is built around a monolithic high-side driver IC per channel group, integrating the power MOSFET switch, current-sense resistor, and protection logic on a single die. This architecture has three direct engineering consequences.

Electronic Short-Circuit Protection with Auto-Reset: When load current exceeds the 0.5 A threshold — due to a wiring fault or actuator failure — the driver IC clamps the output within microseconds and asserts a diagnostic bit in the module’s status word. The CPU reads this fault flag in the next scan cycle via the backplane bus and can execute a configurable retry sequence or latch the fault for operator acknowledgment. Unlike fuse-based protection, the electronic trip resets automatically once the fault condition clears, avoiding manual intervention on the panel.

EMC Design and Conducted Emission Suppression: The module’s PCB layout routes the 24 VDC load supply and return conductors as tightly coupled differential pairs, minimizing the loop area that acts as an antenna for radiated emissions. Transient suppression diodes (TVS) clamp inductive kickback from solenoid coils to within the MOSFET’s avalanche rating, and a common-mode choke on the L+ input attenuates conducted disturbances from the field wiring back into the backplane supply rail. The result is compliance with IEC 61000-4-4 (electrical fast transient, 2 kV) and IEC 61000-4-5 (surge, 1 kV line-to-line) without external filtering components.

Backplane Bus Arbitration and Cycle-Synchronous Output Update: The U-connector backplane bus operates as a time-division multiplexed parallel bus. The CPU’s I/O controller arbitrates bus access in a fixed priority scheme: system data (diagnostics, module status) is transferred first, followed by process image data. For the DQ module, the output register is written in a single atomic bus transaction at the end of each CPU output phase, ensuring all 16 channels switch within the same bus clock edge — a property critical for coordinated multi-axis valve sequencing where inter-channel skew must remain below 1 ms.

Isochronous Mode Operation: When the hosting CPU operates in isochronous mode with PROFINET IRT, the DQ module’s output latch is updated synchronously with the PROFINET send clock (configurable from 250 µs to 4 ms). This eliminates jitter in the output switching event relative to the network cycle, enabling deterministic actuator control in servo-pneumatic and coordinated motion applications where output timing variance directly affects product quality.

System Integration Benefits

• Per-Channel Diagnostic Transparency: Wire-break and short-circuit faults are individually addressable in the TIA Portal diagnostic buffer, allowing maintenance personnel to isolate a single failed field device without removing the module or interrupting adjacent channels.
• Configurable Substitute Values: Each of the 16 channels can be independently configured to hold its last valid state, switch to 0, or switch to 1 upon CPU STOP or communication loss — enabling application-specific safe-state logic without additional safety relays.
• Hot-Swap Module Replacement: The S7-1500 backplane supports module removal and insertion under power. Replacement of a failed 6ES7522-1BH10-0AA0 does not require a rack power-down, reducing mean time to repair (MTTR) in 24/7 production environments.
• Isochronous Real-Time Output Synchronization: Integration with PROFINET IRT reduces output jitter to <1 µs relative to the network cycle, supporting deterministic control of pneumatic actuators in high-speed packaging and assembly applications.
• Push-In Terminal Wiring Technology: The 40-pin front connector (ordered separately: 6ES7592-1AM00-0XB0) uses tool-free push-in terminals for conductors up to 1.5 mm², reducing field wiring time by approximately 40 % compared to screw-terminal alternatives and eliminating loose-screw failures in high-vibration installations.
• Compact 35 mm Slot Width: The module’s narrow profile allows up to 31 I/O modules per S7-1500 rack (CPU-dependent), maximizing I/O density in space-constrained control cabinets without requiring distributed I/O expansion.
• TIA Portal Integrated Engineering: Hardware configuration, channel parameterization, diagnostic monitoring, and firmware update are all performed within a single TIA Portal project, eliminating the need for separate configuration tools and reducing engineering overhead across multi-module installations.
• ATEX Zone 2 Approval: The module carries ATEX II 3G certification, permitting installation in Zone 2 hazardous areas (gas group IIC, temperature class T4) without additional intrinsic safety barriers for the backplane side — simplifying cabinet design in petrochemical and offshore applications.
• Scalable Redundancy Architecture: When paired with an S7-1500R/H redundant CPU, the module participates in the system’s bumpless switchover mechanism. Output states are mirrored across both CPUs, and a primary CPU failure results in output continuity within one PROFINET cycle (<4 ms typical).

Quality Assurance & Global Logistics

Every 6ES7522-1BH10-0AA0 unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification protocol. Authenticity is confirmed by cross-referencing the module’s holographic label, production date code, and embedded firmware version string against Siemens factory records. Each unit is then subjected to a functional output cycle test: all 16 channels are switched under a 0.4 A resistive load, and the resulting current waveforms are logged to verify that switching times and leakage currents fall within datasheet limits. Units that fail any parameter are quarantined and not released for sale.

Packaging follows IEC 61340-5-1 ESD control requirements: modules are sealed in conductive anti-static bags, cushioned with 25 mm polyethylene foam, and placed in double-wall corrugated cartons rated for 32 ECT. Batch numbers and serial numbers are recorded in our traceability database and retained for a minimum of five years, supporting warranty claims and customs audit requirements.

Logistics from Xiamen, China to major industrial hubs are handled via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe and North America. Export documentation — commercial invoice, packing list, certificate of origin, and HS Code 8537.10 classification — is prepared for every international shipment. For project orders requiring consolidated freight or bonded warehouse staging, contact our logistics team for a tailored delivery schedule.

A 12-month warranty against manufacturing defects is provided from the date of dispatch. Warranty claims are processed within 5 business days of receipt of the returned unit at our Xiamen facility, with replacement or credit issued upon confirmation of the defect.
