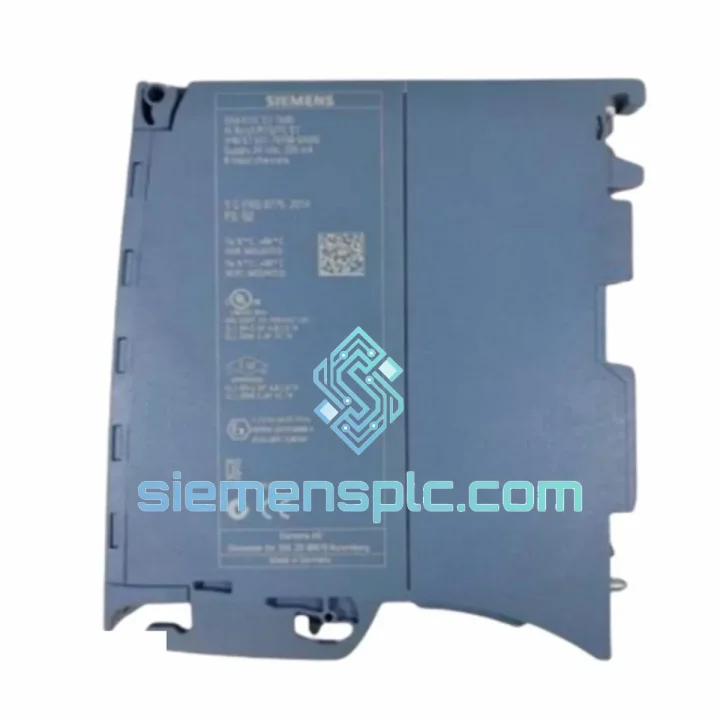

Siemens 6ES7531-7KF00-0AB0 Analog Input Module – SIMATIC S7-1500

Siemens 6ES7531-7KF00-0AB0 — 8-Channel Universal Analog Input Module for SIMATIC S7-1500 / ET 200MP

The 6ES7531-7KF00-0AB0 occupies a well-defined position in the SIMATIC S7-1500 I/O architecture: it serves as the primary analog signal acquisition node between field instrumentation and the CPU’s process image. Each of its eight channels accepts voltage, current, resistance temperature detector (RTD), or thermocouple (TC) signals independently, without hardware range-selection jumpers. This single-module universality directly reduces cabinet slot count, spare-parts SKU proliferation, and commissioning time in mixed-sensor installations.

Within the control loop, the module performs three distinct functions: signal conditioning (filtering, scaling, linearization), analog-to-digital conversion at 16-bit resolution, and diagnostic event generation. The converted process values are written to the CPU’s input process image (PI) each scan cycle via the S7-1500 backplane bus, which operates at a sustained throughput of up to 400 MB/s. This architecture ensures that analog data latency is bounded and predictable — a prerequisite for closed-loop PID control with sub-100 ms response requirements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Sigma-Delta A/D Conversion Architecture. The 6ES7531-7KF00-0AB0 employs a sigma-delta (ΣΔ) converter topology rather than successive-approximation (SAR). This choice is deliberate: ΣΔ converters achieve high effective number of bits (ENOB) at low-to-moderate sampling rates by oversampling and digital decimation filtering. The result is inherent rejection of power-line interference — the module’s selectable integration times (16.7 ms for 60 Hz, 20 ms for 50 Hz) align the decimation filter’s notch frequency with the local mains frequency, attenuating conducted noise by >60 dB at the fundamental and harmonics. This is particularly relevant in motor-drive-dense cabinets where 50/60 Hz common-mode noise is unavoidable.

Per-Channel Multiplexing and Linearization. An internal analog multiplexer sequences through all active channels, feeding a single high-precision ΣΔ front-end. The module’s embedded microcontroller applies Callendar-Van Dusen linearization for Pt/Ni RTDs and ITS-90 polynomial correction for all supported thermocouple types. Cold-junction compensation (CJC) for TC inputs uses an on-board NTC thermistor at the front connector terminal block, with the CJC value accessible as a diagnostic parameter in TIA Portal. This eliminates the need for external isothermal terminal blocks in most installations.

EMC Design and Galvanic Isolation. The backplane bus interface is galvanically isolated from the field-side analog circuitry via a DC/DC converter and optocoupler barrier. This isolation breaks ground loops between the field instrument commons and the CPU rack ground, a common source of measurement offset in long cable runs. The module’s PCB layout follows IEC 61000-4 series test requirements: differential-mode filters on each input pair suppress fast transients (EFT, IEC 61000-4-4, Level 3) and surge events (IEC 61000-4-5, Level 2) without degrading DC accuracy. Shielded cable termination is handled at the front connector’s integrated shield clamp, providing a low-impedance path to PE without routing shield current through the signal ground.

4-Wire RTD Excitation and Lead Compensation. For 4-wire RTD configurations, the module sources a precision constant current (typically 1 mA for Pt100) from an internal regulated source, measuring the voltage drop across the sensor element exclusively. In 3-wire mode, the module applies automatic lead-resistance compensation by measuring the lead resistance on the third wire and subtracting it from the total measured resistance. 2-wire mode is supported for non-critical temperature loops where lead resistance is negligible or pre-characterized.

Isochronous Mode (PROFINET IRT). When the S7-1500 CPU operates in isochronous real-time (IRT) mode over PROFINET, the 6ES7531-7KF00-0AB0 can be synchronized to the global PROFINET clock. Analog sampling is triggered at a fixed phase offset relative to the IRT cycle, ensuring that all analog values in the process image correspond to the same physical time instant. This is essential for coordinated multi-axis control and process analytics where temporal correlation between analog channels across multiple modules is required.

System Integration Benefits

• Single-Module Mixed-Signal Handling: All eight channels accept voltage, current, RTD, or TC without hardware modification. A single MLFB covers the majority of analog input scenarios in a typical process cabinet, reducing procurement complexity and spare-parts holding costs.
• Deterministic Data Latency: The module’s cycle time is configurable and bounded. At 13.6 ms (all 8 channels, 50 Hz rejection), the worst-case analog data age is known at design time, enabling accurate dead-time compensation in PID tuning.
• Integrated Wire-Break and Overflow Detection: Open-circuit detection on current inputs (4–20 mA) and RTD/TC inputs generates a diagnostic interrupt to the CPU without polling. The TIA Portal alarm system surfaces these events with channel-level granularity, reducing fault isolation time from minutes to seconds.
• TIA Portal Parameter Assignment: All channel parameters — input type, range, filter time, overflow response, diagnostic enable — are configured in software. No physical DIP switches or jumpers exist on the module. Configuration data is stored in the CPU project and automatically downloaded to a replacement module, eliminating manual reconfiguration after hardware swap.
• Hot-Swap Under Power: With appropriate system configuration, the module supports removal and insertion under voltage (RIUP). The CPU detects the module absence, generates a diagnostic event, and resumes normal operation upon reinsertion and parameter download — without a full rack power cycle.
• ET 200MP Distributed I/O Compatibility: The module is fully interchangeable between S7-1500 central racks and ET 200MP remote I/O stations using the IM 155-5 PN or IM 155-5 DP interface module. This allows the same hardware to serve both centralized and distributed topologies within a single project.
• Firmware Field Upgrade: Module firmware is updatable via TIA Portal without physical access to the module. This ensures compatibility with future CPU firmware releases and access to new diagnostic features without hardware replacement.
• Scalable Channel Density: Multiple 6ES7531-7KF00-0AB0 modules can be installed in the same rack. The S7-1500 backplane supports up to 32 I/O modules per CPU, allowing analog channel counts to scale linearly with process requirements without architectural changes.

Quality Assurance & Global Logistics

Every 6ES7531-7KF00-0AB0 unit supplied through siemensplc.com is sourced as genuine Siemens factory-produced hardware. Each unit carries the Siemens MLFB label with full traceability to the production batch. Incoming inspection at our Xiamen facility includes: MLFB barcode cross-verification against the order, holographic authenticity label check, firmware version confirmation via TIA Portal online diagnostics, and a functional power-on test verifying supply current draw within specification.

Original Siemens packaging — including the anti-static inner bag, foam insert, and outer carton with factory seals — is preserved intact through the inspection process. Certificate of Conformity (CoC) and incoming test records are available upon request for projects requiring full material traceability documentation.

Shipment from Xiamen, China is executed via DHL Express (standard), FedEx International Priority, or UPS Worldwide Expedited depending on destination and urgency. Export documentation — commercial invoice, packing list, Certificate of Origin (Form E for ASEAN, EUR.1 for EU where applicable) — is prepared as standard. For volume orders, sea freight consolidation via Xiamen Port is available with typical transit times of 18–25 days to European ports and 14–18 days to Southeast Asian ports. All shipments are insured against transit damage. The 12-month warranty covers manufacturing defects and is supported by our technical team in Xiamen.
