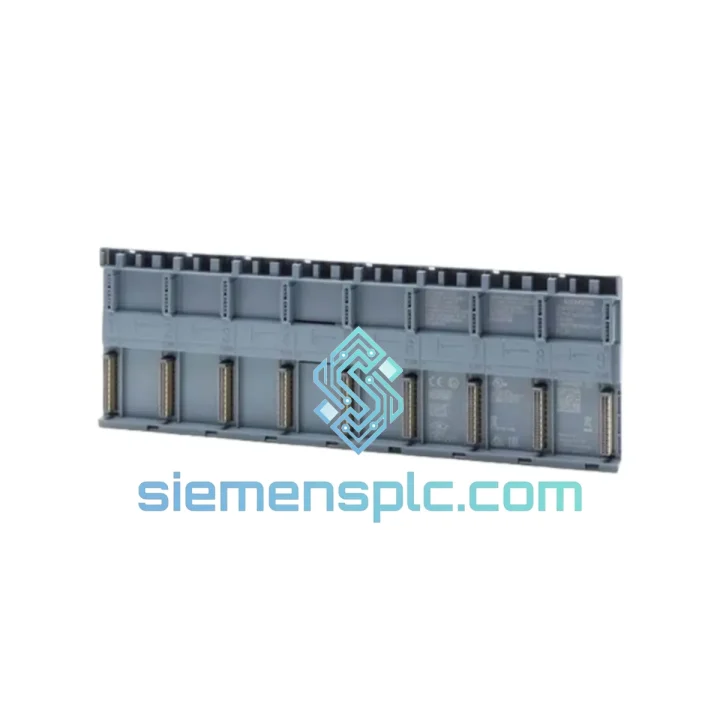

Siemens 6ES7590-0BH00-0AA0 PLC Backplane Module – SIMATIC S7-1500

Siemens 6ES7590-0BH00-0AA0 — S7-1500 System Bus Backplane Module: Structural Role in High-Speed Control Architectures

The 6ES7590-0BH00-0AA0 is a system bus backplane component within the SIMATIC S7-1500 modular rack architecture. Its function is not peripheral — it is the physical and electrical substrate through which every module in the rack exchanges data with the CPU. Without a correctly specified and fully functional backplane bus element, the deterministic timing guarantees that define S7-1500 performance collapse entirely. This module provides the mechanical mounting interface and internal bus connectivity required for rack expansion, enabling engineers to extend the S7-1500 chassis beyond the base configuration while preserving the high-speed synchronous data transfer that the platform is engineered to deliver.

In discrete manufacturing environments — automotive body shops, semiconductor fab lines, pharmaceutical batch reactors — the S7-1500 CPU communicates with I/O modules across the backplane at cycle times as low as 1 ms. The backplane bus operates at a sustained internal bandwidth that supports simultaneous data exchange across all slots without arbitration latency visible at the application layer. The 6ES7590-0BH00-0AA0 is the structural element that makes this possible in expanded rack configurations. It is not a firmware-configurable device; it has no software footprint in TIA Portal. Its role is purely architectural — but architecturally, it is non-negotiable.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The S7-1500 backplane bus architecture departs fundamentally from the parallel bus designs used in legacy S7-300 and S7-400 systems. Rather than a shared parallel data bus where all modules contend for bandwidth, the S7-1500 employs a serial, time-division multiplexed internal bus with dedicated slot addressing. Each module slot is assigned a fixed time slot within the bus cycle, eliminating collision-based arbitration and guaranteeing deterministic access latency regardless of rack population density.

The 6ES7590-0BH00-0AA0 provides the physical bus connector bridge that extends this serial bus topology across rack segments. The connector geometry is precision-machined to maintain controlled impedance across the bus interface — a critical requirement given that the S7-1500 internal bus operates at signal frequencies where impedance discontinuities would introduce reflections measurable as data integrity errors. The gold-plated contact surfaces resist oxidation-induced contact resistance drift, which in high-cycle industrial environments (thermal cycling, vibration) is a primary failure mode for backplane connectors of lesser specification.

From an EMC standpoint, the S7-1500 rack assembly — with the backplane module correctly seated — forms a Faraday cage segment around the internal bus conductors. The module’s housing contributes to the shielding continuity of the rack, attenuating radiated emissions from the high-frequency bus signals and simultaneously providing immunity against externally coupled interference. In environments with variable-frequency drives, arc welders, or high-current switching equipment operating in proximity, this shielding architecture is the difference between deterministic bus operation and sporadic communication faults that are notoriously difficult to diagnose.

The mechanical locking mechanism of the 6ES7590-0BH00-0AA0 provides a defined insertion force profile and a positive retention force that prevents micro-movement of the bus connector under vibration. Micro-movement at bus connector interfaces is a known failure mode in vibration-intensive applications (compressor rooms, press lines, mobile equipment) — the S7-1500 connector design addresses this with a dual-latch retention geometry that maintains contact force within specification across the full vibration envelope defined by IEC 60068-2-6.

System Integration Benefits

• Deterministic Cycle Time Preservation: The serial time-division bus architecture ensures that adding modules via the backplane extension does not introduce variable latency into the CPU scan cycle — cycle time impact is fixed and calculable at engineering time, not discovered at commissioning.
• Zero Software Configuration Overhead: The 6ES7590-0BH00-0AA0 requires no parameterization in TIA Portal. Hardware catalog recognition is automatic upon rack configuration — engineering time is not consumed by module-level software setup.
• Scalable Rack Architecture: Supports incremental expansion of the S7-1500 rack without CPU replacement, protecting capital investment in the control system as I/O point counts grow over the plant lifecycle.
• Diagnostic Transparency: The S7-1500 CPU continuously monitors backplane bus integrity. Slot-level fault detection is reported in the CPU diagnostic buffer with timestamp resolution to 1 ms, enabling maintenance teams to isolate faults to a specific module position without physical inspection of the rack.
• Thermal Management Compatibility: The module’s thermal mass and surface geometry are matched to the S7-1500 rack’s convective cooling design. Airflow channels between modules are maintained at specified dimensions, preventing localized hot spots that degrade semiconductor junction temperatures in adjacent I/O modules.
• Reduced Mean Time to Repair (MTTR): Tool-free module replacement — the latch mechanism allows extraction and reinsertion without screwdrivers or specialized tooling. In a production environment where every minute of downtime has a measurable cost, this mechanical design choice has direct operational value.
• Long-Term Spare Parts Availability: The S7-1500 platform carries a Siemens-committed product lifecycle extending well beyond 2030. Stocking the 6ES7590-0BH00-0AA0 as a critical spare is a low-risk, high-value maintenance strategy for plants with multi-year production commitments.
• Compatibility with Safety-Rated Configurations: The backplane bus architecture supports F-CPU and F-I/O module integration within the same rack, enabling mixed standard and safety-rated I/O configurations without separate rack infrastructure — reducing panel footprint and wiring complexity in SIL-rated applications.

Quality Assurance & Global Logistics

Every 6ES7590-0BH00-0AA0 unit dispatched from our Xiamen facility is a genuine Siemens-manufactured component sourced through traceable supply channels. Prior to shipment, each unit undergoes visual authentication — label verification against Siemens holographic security features, connector pin inspection under magnification, and housing integrity check. Units showing any evidence of remanufacturing, remarking, or non-OEM assembly are rejected and not offered for sale.

Packaging follows ESD-safe protocols: anti-static poly bag, foam-lined carton, and outer corrugated box rated for international air freight handling. For shipments to destinations with strict import documentation requirements, we provide a full commercial invoice, packing list, certificate of conformity, and — upon request — a Siemens-traceable delivery note. Export from Xiamen, China is handled via DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–7 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. Customs clearance documentation is prepared to HS code standards applicable to the destination country, minimizing clearance delays.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed with a target response time of 1 business day. Defective units are replaced or credited — no protracted RMA bureaucracy. Our technical team is available to support installation verification and fault diagnosis remotely via email and WhatsApp throughout the warranty period.
