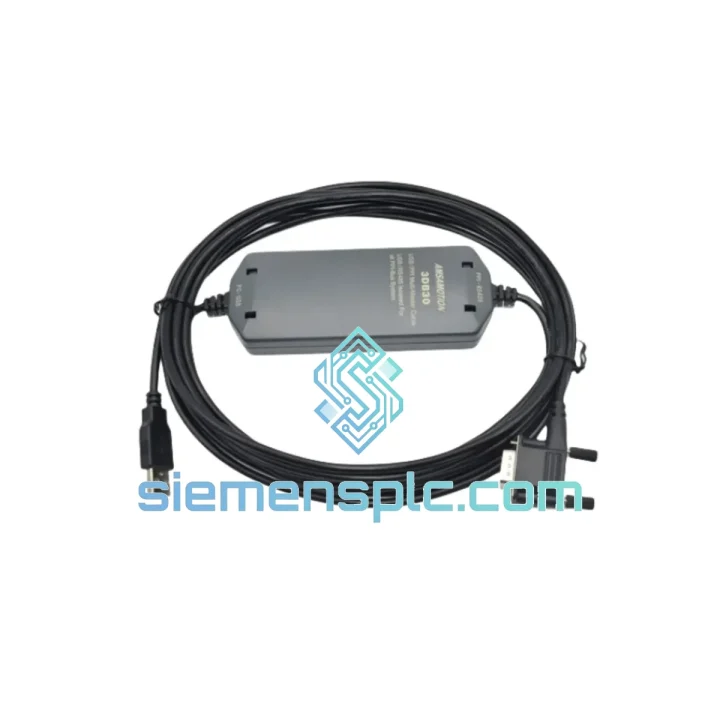

Siemens 6ES7901-3DB30-0XA0 PLC Programming Cable – SIMATIC S7-200

Siemens 6ES7901-3DB30-0XA0 — RS-485 PC/PPI Multi-Master Cable for SIMATIC S7-200 Control Systems

The 6ES7901-3DB30-0XA0 is a dedicated RS-232-to-RS-485 protocol conversion cable manufactured by Siemens for use with the SIMATIC S7-200 compact PLC family. Its primary function is to establish a PPI (Point-to-Point Interface) communication link between a standard PC serial port (DB9 female, RS-232) and the S7-200 CPU’s RS-485 programming port (DB9 male). This cable is the hardware prerequisite for all programming, firmware download, online monitoring, and diagnostic operations performed through STEP 7-Micro/WIN software.

Unlike passive RS-232/RS-485 converter cables, the 6ES7901-3DB30-0XA0 integrates an active signal conditioning circuit that handles the RS-232 voltage level conversion (±12 V logic) to RS-485 differential signaling (±5 V, 120 Ω termination). The embedded multi-master arbitration logic allows the cable to coexist on a shared PPI bus alongside HMI panels such as the TD 200 or TP 070, without bus contention — a capability absent in single-master variants.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: The 6ES7901-3DB30-0XA0 incorporates a galvanic isolation barrier between the RS-232 input stage and the RS-485 output driver. This optocoupler-based isolation (typically rated at 500 V DC isolation voltage) prevents ground loop currents from propagating between the PC chassis ground and the PLC panel ground — a common source of communication errors and hardware damage in industrial environments where multiple grounding points exist across a machine frame.

Multi-Master Arbitration Logic: The cable’s embedded microcontroller monitors the RS-485 bus state before asserting the transmit driver (DE/RE control). When the bus is occupied by another master (e.g., an HMI panel polling the S7-200 CPU), the cable holds its transmit buffer and waits for the bus idle condition. This collision-avoidance mechanism is implemented in hardware, not reliant on software timing, which ensures deterministic behavior even under high CPU load on the connected PC.

DIP Switch Baud Rate Selection: Three baud rates (9.6 kbps, 19.2 kbps, 187.5 kbps) are selected via a physical DIP switch array on the cable body. This hardware-level selection eliminates the risk of software misconfiguration and ensures the cable’s internal UART matches the PLC port baud rate before any data frame is transmitted. The 187.5 kbps setting is required for STEP 7-Micro/WIN’s high-speed download mode.

EMC Design: The RS-485 cable segment uses a foil-and-braid shielded, twisted-pair conductor construction. The shield is terminated at the PLC-side connector to chassis ground, providing a low-impedance return path for common-mode noise induced by variable-frequency drives (VFDs), contactors, and other switching loads common in S7-200 application environments. The RS-232 segment uses standard shielded cable with ferrite bead suppression at the PC connector.

Self-Powered Operation: The internal signal conditioning circuit draws operating current from the RS-232 RTS and DTR control lines, which STEP 7-Micro/WIN asserts during communication sessions. This eliminates the need for an external power supply and simplifies field deployment — the cable is fully operational as soon as it is connected to an active COM port.

System Integration Benefits

• Zero-Configuration Bus Sharing: The multi-master hardware logic allows the 6ES7901-3DB30-0XA0 to share the PPI bus with HMI devices without requiring any network address reconfiguration on the S7-200 CPU, reducing commissioning time in multi-device panels.
• Deterministic Communication Latency: Hardware-controlled bus arbitration ensures that programming commands from STEP 7-Micro/WIN are delivered within a bounded time window, supporting reliable online monitoring of fast-changing process variables.
• Diagnostic Transparency: STEP 7-Micro/WIN’s online diagnostics (CPU status, I/O error codes, program cycle time) are fully accessible through this cable, enabling engineers to read system fault buffers and identify hardware faults without removing the CPU from the panel.
• Firmware and Program Download Integrity: The 187.5 kbps high-speed mode reduces program download time for large S7-200 projects, while the optical isolation prevents data corruption caused by ground potential differences during the download sequence.
• Broad CPU Compatibility: A single cable supports all five S7-200 CPU variants (221, 222, 224, 224XP, 226), eliminating the need for model-specific programming interfaces in mixed-CPU installations or spare parts inventories.
• Industrial Environmental Tolerance: Rated for 0–60 °C operation, the cable functions reliably in control cabinet environments where ambient temperatures can exceed standard office equipment ratings, particularly in summer conditions without forced cooling.
• No Driver Installation Required: The cable presents as a standard RS-232 COM port to the operating system, requiring no USB driver installation or kernel-mode software — a significant advantage in locked-down industrial PC environments where driver installation is restricted by IT policy.
• Backward Compatibility with Legacy Projects: S7-200 installations remain operational in many industries (food processing, water treatment, OEM machinery) well beyond their original design life. This cable ensures continued programming access to legacy CPUs without requiring platform migration.

Quality Assurance & Global Logistics

Every Siemens 6ES7901-3DB30-0XA0 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full traceability to Siemens AG manufacturing records. Each unit is inspected upon receipt for packaging integrity, label authenticity (Siemens holographic seal and part number barcode), and physical connector condition. Functional communication tests — including baud rate verification at all three DIP switch positions — are available on request prior to dispatch.

Our logistics operations are based in Xiamen, China, a major international port city with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for all international shipments. For B2B customers requiring customs clearance support, HS code classification (8544.42 — insulated electric conductors for a voltage not exceeding 1,000 V) and country-of-origin documentation are provided as standard.

Typical transit times: 3–5 business days to Europe and North America via express courier; 5–8 business days to Southeast Asia and the Middle East. Sea freight consolidation is available for bulk orders exceeding 50 units. A proforma invoice is issued within one business day of order confirmation for all B2B transactions.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and communication failures under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize downtime for production-critical applications.
