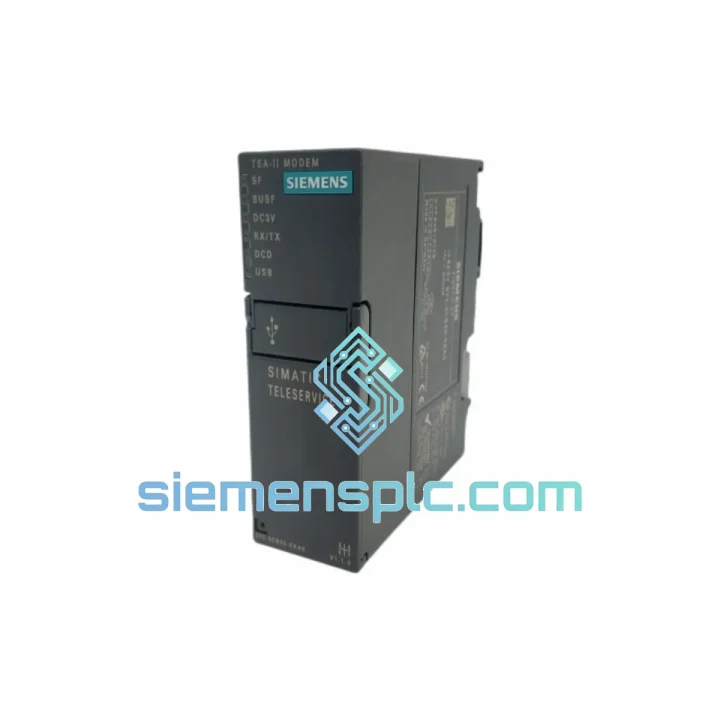

Siemens 6ES7972-0CB35-0XA0 PLC Communication Module – SIMATIC TS Adapter II

Siemens 6ES7972-0CB35-0XA0 MPI Teleservice Adapter II — Remote Diagnostics Gateway for SIMATIC S7-300 / S7-400 Control Systems

The Siemens 6ES7972-0CB35-0XA0 is the second-generation Teleservice Adapter (TS Adapter II) within the SIMATIC S7 product family. Its primary function is to bridge the MPI (Multi-Point Interface) backplane bus of an S7-300 or S7-400 CPU to a standard ISDN BRI or PSTN analog telephone line, enabling a remote engineering workstation running STEP 7 V5.x to establish a transparent, point-to-point diagnostic and programming session without any intermediate PC hardware at the remote site. In distributed automation architectures — water treatment networks, remote substations, geographically dispersed OEM machine fleets — this capability eliminates the need for a dedicated on-site engineer during fault diagnosis, parameter adjustment, or program upload/download cycles.

Unlike IP-based remote access solutions that require a routable network infrastructure, the 6ES7972-0CB35-0XA0 operates over circuit-switched telephony. The adapter auto-answers incoming calls, authenticates the session, and presents the remote MPI node to SIMATIC Manager as a locally connected device. The engineering PC perceives no protocol difference between a local MPI cable connection and a dial-up session through this adapter — all STEP 7 online functions, including force tables, diagnostic buffers, variable monitoring, and program block transfer, remain fully available.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7972-0CB35-0XA0 implements a two-domain signal architecture. On the MPI side, the adapter’s internal microcontroller participates as a passive MPI node, listening to the token-passing bus arbitration without disrupting the deterministic timing of the active CPU-to-I/O communication cycle. MPI is a subset of PROFIBUS at the physical layer (RS-485 differential signaling), and the adapter’s transceiver is galvanically isolated from the telephone-side circuitry — a design decision that prevents ground-loop currents from the PSTN or ISDN line from propagating into the 24 V DC backplane rail.

On the WAN side, the adapter integrates a dual-mode modem core: an ISDN S0 interface (ITU-T I.430 physical layer, Q.931 call control) and a V.34 analog modem. The ISDN path delivers a synchronous 64 kbps B-channel, which the adapter’s protocol engine uses to encapsulate MPI telegrams with a lightweight framing layer. Call setup via ISDN typically completes in under 8 seconds. The analog path uses V.42bis data compression and MNP5 error correction to maintain link integrity over noisy PSTN lines, though effective throughput is constrained to approximately 28–33 kbps under real-world line conditions.

EMC compliance is achieved through a combination of ferrite bead filtering on the MPI cable interface, shielded enclosure construction, and transient voltage suppression (TVS) diodes on both the telephone line terminals and the 24 V DC input. The adapter meets EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/Burst), and EN 61000-4-5 (surge) immunity levels appropriate for industrial Zone B environments. The auto-answer modem logic is implemented in firmware with a configurable ring-count threshold, allowing the adapter to remain in low-power standby between sessions without requiring a dedicated power management controller.

System Integration Benefits

• No Remote-Site PC Required: The adapter connects directly to the CPU’s MPI port and handles all modem negotiation autonomously — the remote installation requires zero additional computing hardware, reducing BOM cost and failure points at unmanned sites.
• Full STEP 7 Online Parity: All SIMATIC Manager online functions — program block upload/download, variable force, diagnostic buffer readout, module status, and hardware configuration comparison — operate identically over the dial-up link as over a local MPI cable.
• Deterministic MPI Bus Participation: The adapter joins the MPI token ring as a passive node, consuming no additional bus cycle time during idle periods. Active data transfer occurs only during an established call session, preserving the CPU’s scan cycle determinism.
• Air-Gap Security Posture: Circuit-switched ISDN/PSTN connectivity is inherently isolated from IP networks. There is no Ethernet interface, no TCP/IP stack, and no exposure to internet-borne threats — a significant compliance advantage in critical infrastructure and process safety environments.
• Backward Compatibility Across S7 Generations: The adapter operates with any MPI-equipped S7-300 or S7-400 CPU regardless of firmware revision, eliminating the need for CPU firmware upgrades to enable remote access capability.
• Reduced Mean Time to Repair (MTTR): Remote fault diagnosis via the adapter allows engineers to identify the root cause — incorrect parameter, corrupted data block, or I/O module fault — before dispatching a technician, compressing the diagnostic phase from hours to minutes.
• Centralized Multi-Site Management: A single engineering workstation can sequentially dial into multiple remote S7 installations, enabling one engineer to maintain a geographically distributed fleet of controllers from a central location.
• Plug-and-Play Driver Integration: SIMATIC Manager recognizes the adapter natively via the standard PC adapter configuration dialog. No third-party drivers, OPC servers, or middleware are required — the engineering environment treats the dial-up connection as a standard MPI access point.

Quality Assurance & Global Logistics

Every unit of the Siemens 6ES7972-0CB35-0XA0 supplied by siemensplc.com is sourced as genuine Siemens OEM hardware, manufactured in Germany to Siemens’ IEC 61131-2 compliance standards. Prior to dispatch from our Xiamen, China warehouse, each unit undergoes a structured pre-shipment inspection protocol: visual examination of the enclosure and connector pins, label verification against Siemens part number and date code databases, and a functional power-on test confirming MPI bus participation and modem initialization sequences. Units exhibiting any sign of counterfeit labeling, PCB rework, or non-original firmware are quarantined and excluded from inventory.

Xiamen’s geographic position — a major southeastern China port city with direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables competitive transit times to key industrial markets. Standard DHL Express shipments to Europe typically arrive within 3–5 business days; to North America, 4–6 business days; to Southeast Asia and the Middle East, 2–4 business days. For urgent MRO requirements, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include a commercial invoice, packing list, and certificate of conformity. Export classification and HS code documentation are prepared in compliance with Chinese customs regulations and destination-country import requirements.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 24 hours and replacement dispatch within 3 business days of confirmed fault verification.
