Siemens 6FC5210-0DA20-2AA1 HMI Display Control Unit – SINUMERIK

Siemens 6FC5210-0DA20-2AA1 MMC103 — Man-Machine Communication Controller for SINUMERIK 840C/840D CNC Platforms

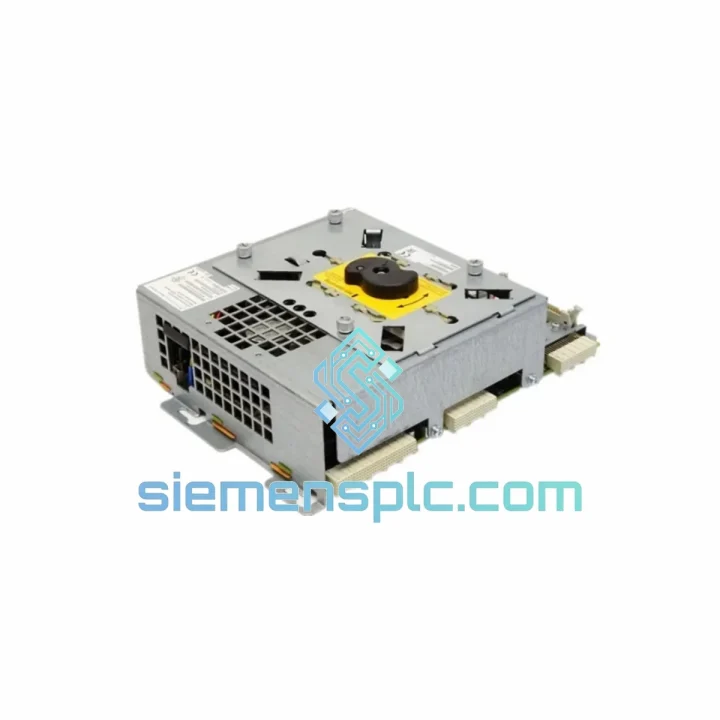

The Siemens 6FC5210-0DA20-2AA1, commercially designated MMC103, is the Man-Machine Communication (MMC) display control unit engineered for integration within SINUMERIK 840C and 840D numerical control architectures. Unlike peripheral HMI panels that merely relay operator inputs, the MMC103 functions as an autonomous computing node on the MPI/PROFIBUS backplane, executing the full HMI software stack — including NC program management, tool offset editing, machine data administration, and real-time axis status visualization — independently of the NCU’s interpolation cycle. This architectural separation ensures that operator interface latency never propagates into the servo control loop, preserving the deterministic timing characteristics that precision machining demands.

Deployed across automotive body-in-white transfer lines, aerospace five-axis machining cells, die-and-mold high-speed milling centers, and heavy-equipment boring mills, the MMC103 has accumulated a substantial installed base in environments where continuous 24/7 operation under vibration, coolant mist, and wide ambient temperature swings is the norm rather than the exception. Its Windows-based MMC software environment provides a familiar operator interface while the underlying hardware is hardened to IEC 61131-2 industrial equipment standards.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MMC103’s internal architecture reflects a deliberate design philosophy: isolate the human interface compute domain from the real-time NC interpolation domain. The unit houses a dedicated x86-class processor running the MMC software stack, connected to the SINUMERIK NCU exclusively via the MPI serial bus. This bus operates at up to 12 Mbit/s and uses a token-passing protocol that guarantees bounded latency for status data exchange — the NCU never waits on the MMC103 for interpolation data, and the MMC103 never starves for axis position feedback.

EMC Design: The PCB layout employs a multi-layer ground plane strategy with dedicated analog and digital ground domains separated at a single star point. All external I/O connectors are filtered with common-mode chokes and transient voltage suppression (TVS) diodes rated to IEC 61000-4-5 Level 3 surge immunity (2 kV line-to-earth). The metal enclosure provides a continuous Faraday shield, with conductive gaskets at all panel seams to maintain shielding effectiveness above 40 dB across the 30 MHz–1 GHz band — critical in environments with variable-frequency drives and arc welding equipment operating in proximity.

Storage Subsystem: The Compact Flash interface uses a direct IDE-to-CF adapter with no mechanical moving parts, eliminating the primary failure mode of earlier MMC100/101 units that relied on spinning hard disks. Mean time between failures (MTBF) for the CF-based storage subsystem exceeds 1,000,000 hours under rated operating conditions. NC part programs, tool tables, and machine data are stored in a structured directory hierarchy on the CF card, accessible via the MMC software’s file manager or directly via the RS-232/Ethernet interface for automated backup workflows.

Display Signal Path: The MMC103 generates an analog VGA signal at up to 1024×768 resolution, transmitted via a shielded cable to the operator panel front (OP010, OP012, or OP015). The video output stage uses a dedicated DAC with 8-bit color depth per channel, providing 16.7 million displayable colors for high-contrast tool-path visualization and alarm graphics. The touchscreen or softkey input from the operator panel front is returned to the MMC103 via a separate USB or PS/2 interface, maintaining electrical isolation between the display drive and input capture circuits.

System Integration Benefits

• 1. Deterministic HMI/NC Decoupling: The MPI token-bus architecture ensures that HMI polling cycles (typically 100 ms) never introduce jitter into the NCU’s interpolation cycle (typically 2–12 ms), preserving servo loop timing integrity across all operator interaction scenarios.
• 2. Direct Drop-in Replacement: The 6FC5210-0DA20-2AA1 is mechanically and electrically backward-compatible with MMC100 and MMC101 installations. Connector pinouts, mounting dimensions, and MPI bus addressing are preserved, enabling field replacement without cabinet modification or NCU firmware updates in the majority of configurations.
• 3. Expanded NC Program Storage: CF-based storage provides 512 MB to 4 GB of program memory — a 10× to 80× increase over the 40 MB HDD units in earlier MMC generations — accommodating complex five-axis part programs and large tool tables without external program servers.
• 4. Integrated Diagnostic Transparency: The MMC103 exposes the full SINUMERIK alarm and diagnostic buffer via the HMI interface, including PLC alarm texts, NC alarm history with timestamps, and drive fault codes from connected SIMODRIVE 611 or SINAMICS S120 axes. Maintenance personnel can isolate faults to the subsystem level without external diagnostic tools.
• 5. Remote Access Capability: When the optional Ethernet interface is populated, the MMC103 supports VNC-based remote desktop access, enabling off-site engineers to observe the operator interface in real time, transfer NC programs via FTP, and review machine data without physical presence at the machine.
• 6. Multi-Channel Display Support: In multi-channel SINUMERIK 840D configurations (up to 10 NC channels), the MMC103 can display channel-specific axis positions, program states, and alarm conditions simultaneously, with operator-selectable channel focus — eliminating the need for separate HMI nodes per channel.
• 7. Structured Machine Data Management: The MMC software provides a hierarchical machine data editor with parameter range validation, preventing out-of-range entries that could cause axis runaway or servo fault conditions. All machine data changes are logged with timestamp and operator ID for audit trail compliance.
• 8. Scalable Software Architecture: The Windows-based MMC runtime supports optional software modules including ShopMill, ShopTurn, and ManualTurn graphical programming interfaces, which can be licensed and activated on the existing MMC103 hardware without hardware replacement — protecting capital investment as production requirements evolve.
• 9. Standardized Backup and Restore: The MMC103 supports full system backup (NC data, PLC program, machine data, tool tables) to CF card or network share via the MMC software’s series machine startup function, reducing recovery time after hardware replacement from days to under two hours.
• 10. Long-Term Spare Parts Availability: As a widely deployed SINUMERIK component, the 6FC5210-0DA20-2AA1 benefits from an established global spare parts ecosystem. siemensplc.com maintains verified stock sourced directly from Siemens-authorized channels, with traceability documentation available on request.

Quality Assurance & Global Logistics

Every Siemens 6FC5210-0DA20-2AA1 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection covers enclosure integrity, connector pin condition, CF card seating, and label authenticity cross-referenced against Siemens product records. Each unit is powered on and the MMC software boot sequence is verified to completion, confirming that the display output, MPI interface, and storage subsystem are fully operational prior to packaging.

Units are packed in anti-static polyethylene bags, seated in custom-cut polyethylene foam inserts, and double-boxed in corrugated cartons rated to ASTM D4169 Assurance Level II for international air freight. Shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Sea freight consolidation is available for multi-unit orders where lead time permits. All shipments include a commercial invoice, packing list, and functional test report for customs clearance. A certificate of conformity is available on request.

A 12-month warranty covers manufacturing defects from the date of receipt. Dead-on-arrival (DOA) units are replaced within 7 business days of confirmed fault report. Our technical team — with direct experience in SINUMERIK 840C/840D commissioning and troubleshooting — provides pre-sales application support and post-sales integration assistance at no additional charge.
