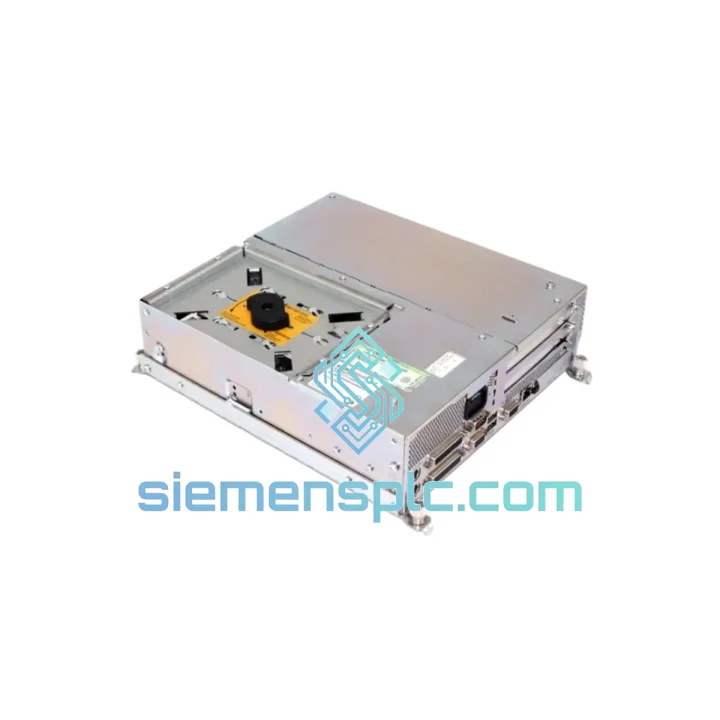

SIEMENS 6FC5210-0DF25-2AA0 CNC PC Unit

6FC5210-0DF25-2AA0 — Stop the Clock on Your Downtime. Ship Today.

Every minute a SINUMERIK 840D sl line sits idle, you’re bleeding money. A failed PCU 50 is one of the most disruptive single-point failures in a CNC control cabinet — it takes down the HMI, the operator interface, and every axis it commands. We stock the SIEMENS 6FC5210-0DF25-2AA0 precisely for this scenario: verified original, bench-tested, packed and ready to leave Xiamen on the next available DHL or FedEx flight. No lead-time games, no “check back in two weeks.” If you’re reading this during a breakdown, the next step is one message away.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for 6FC5210-0DF25-2AA0:

• Black screen on OP panel at power-up — PCU fails to POST. Check 24 VDC supply rail first (measure at X101 connector). If voltage is nominal and the PCU fan does not spin, the board is dead. Swap the unit.
• “NCK not ready” or “Communication error to NCK” — Can indicate a corrupted HMI software partition on the CF card, not necessarily a hardware fault. Boot into BIOS (F2 at POST) and verify the CF card is detected. If missing, the card has failed — replace CF card with a pre-imaged spare before condemning the PCU board itself.
• Intermittent HMI freeze / random reboots — Classic symptom of failing electrolytic capacitors on the PCU motherboard, especially in high-ambient-temperature environments. Also check the CMOS battery (CR2032); a dead CMOS battery causes BIOS settings to reset and can prevent proper boot sequencing.
• Alarm 380500 / 380501 (HMI communication fault) — Verify the MPI/PROFIBUS address on the PCU matches the NCU configuration. Default PCU MPI address is 12; if a previous technician changed it, the NCU will not handshake.

Step-by-step replacement procedure:

1. Document before you touch anything. Photograph the cable routing, connector labels, and any DIP switch positions on the existing PCU. The PCU 50 has a small DIP switch block (SW1) on the motherboard — record its state before removal.
2. Power down the control cabinet via the main isolator. Wait 60 seconds for capacitors to discharge. The PCU 50 does not have a hot-swap mechanism.
3. Remove the PCU from the OP panel. It mounts to the rear of the operator panel via four M4 screws. Disconnect the 24 VDC power connector (X101), the MPI/PROFIBUS cable, Ethernet, USB peripherals, and the CF card ribbon (if external).
4. Transfer the CF card to the replacement unit if the card is healthy and contains a valid HMI image. This preserves machine-specific parameters, tool data, and part programs. If the CF card is suspect, use a pre-imaged replacement card with the correct SINUMERIK software version (match to your NCK version — e.g., SW 7.x requires a matching HMI Advanced or SINUMERIK Operate build).
5. Set DIP switches on the new PCU to match the documented positions from step 1. Incorrect switch settings can disable the MPI interface or alter boot device priority.
6. Reconnect all cables in reverse order. Torque the M4 mounting screws to 1.5 Nm — over-tightening cracks the panel frame.
7. Power up and observe POST. The PCU should display the SIEMENS boot logo within 30 seconds. If it hangs at POST, re-check CF card seating and BIOS boot order.
8. Verify NCK communication. Once HMI loads, navigate to Diagnostics → System → NCK version. Confirm the NCK and HMI software versions are compatible. A mismatch here will generate alarm 380000-series faults.
9. Run a reference point approach on all axes before releasing the machine to production. A PCU swap does not affect axis parameters (stored in NCK SRAM), but confirming machine zero is non-negotiable after any control work.

Firmware matching note: The 6FC5210-0DF25-2AA0 runs HMI Advanced or early SINUMERIK Operate builds. If your NCU has been updated to SW 4.5 or later, verify that the HMI image on your CF card is at a compatible revision. Mismatched firmware is the single most common cause of post-replacement communication alarms.

Reliability in Harsh Conditions

The PCU 50 platform was engineered for the machine tool floor, not an office rack. The 6FC5210-0DF25-2AA0 carries an operating temperature range of 0 °C to +55 °C and is rated for storage down to -20 °C — relevant if your facility has unheated storage areas. Vibration resistance meets IEC 60068-2-6 (sinusoidal, 10–58 Hz, 0.075 mm amplitude; 58–500 Hz, 1g), which covers the resonance bands typical of spindle-bearing vibration transmitted through the machine frame.

Humidity tolerance is rated to 95% RH non-condensing. In coastal or high-humidity plants, conformal coating on the PCB provides an additional barrier against corrosion on solder joints and connector pins. Units we ship have been inspected for corrosion on the edge connectors — a common failure point on boards that have been stored improperly.

The fanless thermal design of the PCU 50 chassis (passive heatsink on the CPU) eliminates the fan-bearing failure mode that plagues older industrial PCs. The primary thermal risk is dust accumulation on the heatsink fins — a compressed-air blow-out every six months is the only preventive maintenance the unit requires in most environments.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most connected export ports in Asia, with direct DHL and FedEx flight connections to major industrial hubs worldwide. Here is how a typical emergency order moves:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority label generated within 2 hours of payment confirmation.
• Transit to Europe (Germany, Italy, Czech Republic): 2–4 business days door-to-door under normal customs conditions.
• Transit to North America (USA, Canada, Mexico): 3–5 business days.
• Transit to Southeast Asia (Thailand, Vietnam, Indonesia): 1–3 business days.
• Transit to Middle East (UAE, Saudi Arabia, Turkey): 3–5 business days.

All shipments include a commercial invoice with accurate HS code classification (HS 8537.10 for programmable control units) and a packing list. For customers in regulated industries requiring a Certificate of Conformance or test report, these documents are prepared at the time of packing and included in the shipment. Export compliance is verified against current dual-use regulations prior to dispatch — no surprises at customs.

Tracking numbers are sent via email and WhatsApp immediately upon carrier pickup. For critical downtime situations, we can arrange Saturday dispatch and provide the carrier AWB number in real time so your logistics team can pre-clear customs before the shipment lands.
