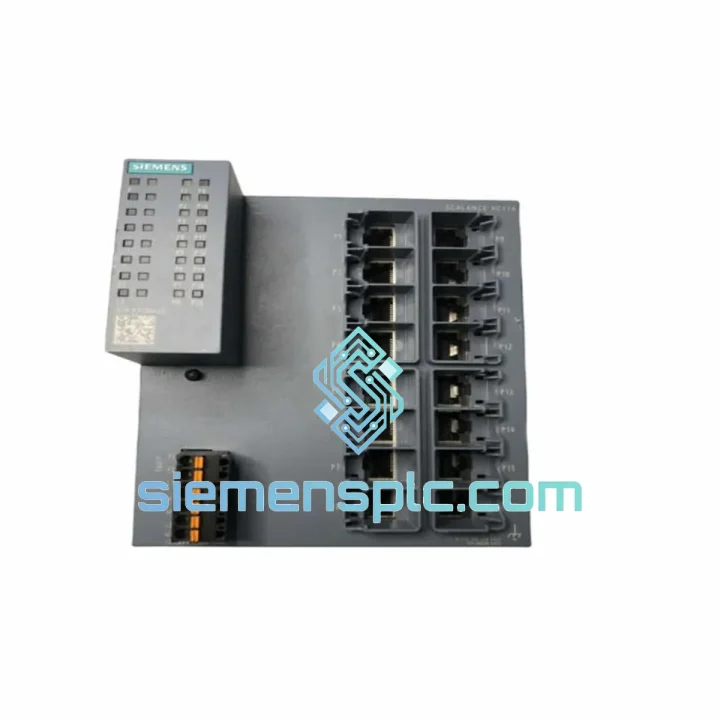

Siemens 6GK5116-0BA00-2AC2 Industrial Ethernet Switch

6GK5116-0BA00-2AC2 Down? Every Minute Costs Money — Ship Today from Xiamen

Your line is stopped. The SCALANCE X116 is dead. You’ve already pulled the module and confirmed the fault — now you need a verified replacement on-site before the next shift, not next week. The Siemens 6GK5116-0BA00-2AC2 is in stock at our Xiamen warehouse. We process same-day for orders confirmed before 15:00 CST. DHL Express to most destinations in 2–4 business days. No MOQ. No waiting on distributor lead times.

This is not a listing for browsing. This is a listing for engineers who are already in the middle of a breakdown and need a part number confirmed, a price, and a tracking number — in that order.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure modes on the 6GK5116-0BA00-2AC2:

1. Total loss of link on all 16 ports simultaneously. Nine times out of ten this is a power supply issue, not the switch itself. Before condemning the 6GK5116-0BA00-2AC2, measure voltage at both L+ terminals under load. The switch draws up to 3.5 W; a marginal 24 V PSU that reads 23.1 V at no-load can sag below the undervoltage lockout threshold when the switch initializes. Swap the PSU first if you have one available — it’s a 5-minute test that can save you a replacement order.

2. Intermittent port dropouts on specific ports (not all). This is almost always a connector or cable issue in industrial environments — vibration works RJ45 plugs loose over months. Re-seat each cable on the affected port. If the fault follows the cable to a different port, the cable is the culprit. If the fault stays on the same port regardless of cable, the port’s magnetics are damaged — the switch needs replacement.

3. Switch powers on (PWR LED green) but no traffic passes. On an unmanaged switch this is unusual. Check for a broadcast storm: if one connected device is flooding the network, the switch’s MAC table can thrash and effectively block unicast forwarding. Disconnect devices one at a time until traffic resumes to isolate the offending node.

Replacement procedure — zero-config swap:

The 6GK5116-0BA00-2AC2 is fully unmanaged. There is no IP address, no firmware to match, no DIP switch to set, no PROFINET device name to assign. The replacement procedure is mechanical only:

1. De-energize the 24 V DC feed at the upstream breaker or fuse. Do not rely on hot-swap — the switch is not rated for live insertion under load.
2. Label each RJ45 cable with port number before removal. With 16 ports in a compact housing, re-insertion errors are common under time pressure.
3. Release the DIN-rail clip (bottom latch) and slide the unit off the rail. The clip is spring-loaded — press down firmly before pulling forward.
4. Mount the replacement unit. Verify the DIN-rail clip snaps fully — a partially seated unit will vibrate loose.
5. Re-insert cables in documented port order. Reconnect power. All 16 port LEDs should cycle through a brief initialization sequence (approximately 2 seconds) then settle to steady green for active links.
6. Verify PROFINET IO cycle times in TIA Portal diagnostics if the switch feeds a PROFINET segment. Unmanaged switches introduce no additional latency configuration, but confirm no ghost faults were latched in the IO controller during the outage.

Firmware note: This is an unmanaged switch — there is no firmware to update, no bootloader to match, and no compatibility matrix to check against your PLC firmware version. Any 6GK5116-0BA00-2AC2 unit is a direct drop-in for any other unit of the same part number.

Reliability in Harsh Conditions

The SCALANCE X116 was not designed for a server room. It was designed for the inside of a control cabinet bolted to a press, a conveyor frame, or an outdoor substation enclosure. The -40 °C lower limit is not a marketing figure — it reflects the conformal coating on the PCB and the component selection (industrial-grade capacitors rated for low-temperature ESR, not consumer-grade electrolytics that go high-impedance in the cold).

At the upper end, +70 °C continuous operation means the switch survives inside a sealed steel enclosure on a summer day in a non-air-conditioned facility — a condition that kills consumer-grade hardware within months. The housing is designed for convective airflow along the DIN-rail axis; mount it vertically on the rail as intended and the thermal path works as engineered.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-27 (shock). In practice, this means the unit survives being mounted on a machine frame that runs a 3-shift stamping operation — the kind of environment where standard RJ45 connectors work-harden and crack within a year. The 6GK5116-0BA00-2AC2’s connector retention force and PCB mounting are specified to handle this.

EMC immunity is certified to EN 61000-6-2 (industrial immunity), covering conducted and radiated immunity levels that reflect real factory-floor interference from VFDs, contactors, and welding equipment. If you’re seeing intermittent network faults that correlate with drive starts or contactor switching, the switch is not the weak point — check your cable shielding and grounding before replacing hardware.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Transit times from order confirmation to delivery:

• Southeast Asia (SG, MY, TH, VN, ID): DHL Express 1–2 business days
• Middle East (AE, SA, QA, KW): DHL / FedEx 2–3 business days
• Europe (DE, NL, PL, ES, IT, FR): DHL Express 3–4 business days
• North America (US, CA, MX): FedEx International Priority 3–5 business days
• Australia / New Zealand: DHL Express 3–4 business days
• South America (BR, CL, CO): FedEx 4–6 business days (customs clearance variable)

Orders confirmed before 15:00 CST Monday–Friday are processed same day. You receive a tracking number within 2 hours of dispatch. All shipments include a commercial invoice, packing list, and certificate of origin — the documentation your customs broker needs to clear the shipment without delays. HS code for this product: 8517.62 (network switches). We do not ship via postal services for industrial components — only express courier with full tracking and insurance.

For projects requiring multiple units or phased delivery schedules, contact us directly. We can hold allocated stock against a purchase order and ship in tranches aligned with your installation schedule.
