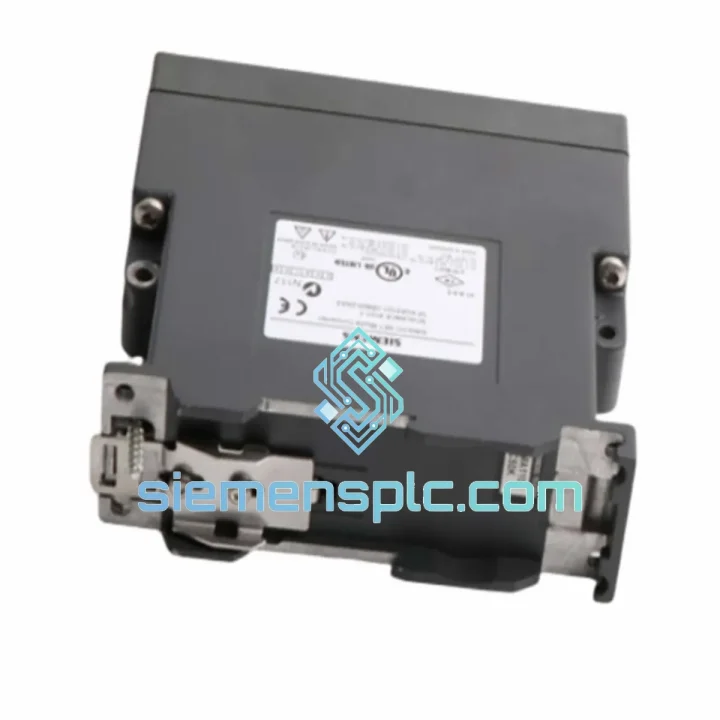

Siemens 6GK5208-0BA10-2AA3 Industrial Ethernet Switch – SCALANCE X200

Siemens 6GK5208-0BA10-2AA3 — 8-Port Unmanaged Industrial Ethernet Switch for Deterministic PROFINET Architectures

The 6GK5208-0BA10-2AA3 is an 8-port, 10/100 Mbps unmanaged Industrial Ethernet switch belonging to Siemens’ SCALANCE X200 product family. Its primary function within a control loop is to provide a transparent, low-latency Layer 2 switching fabric that interconnects PROFINET IO controllers, IO devices, HMIs, and drives without introducing configuration overhead or management complexity. In star and line topologies — the two most common physical layouts in IEC 61158-based PROFINET networks — this switch acts as the central aggregation node, forwarding Ethernet frames at wire speed using a store-and-forward mechanism that preserves frame integrity across all eight ports simultaneously.

Unlike general-purpose office switches, the 6GK5208-0BA10-2AA3 is engineered to sustain continuous 24/7 operation under the electrical and mechanical stress conditions typical of industrial control cabinets: wide-range 24 V DC supply input, conformal-coated PCB for condensation resistance, and vibration/shock ratings per IEC 60068-2-6 and IEC 60068-2-27. The switch’s passive convection cooling eliminates fan failure as a reliability variable — a critical design choice for sealed enclosures where thermal management is constrained.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Store-and-Forward Switching and Frame Integrity
The 6GK5208-0BA10-2AA3 employs a store-and-forward switching engine, meaning each incoming Ethernet frame is fully buffered and its CRC verified before forwarding. This architecture eliminates runt frames and corrupted packets from propagating across the network segment — a non-trivial advantage in environments where variable-frequency drives, contactors, and welding equipment generate conducted and radiated interference that can corrupt in-transit frames on cut-through switches.

EMC Design and Conducted Noise Rejection
The switch’s PCB layout follows Siemens’ industrial EMC design rules: ground planes are segmented to isolate the 24 V DC power input section from the Ethernet PHY section, reducing common-mode noise coupling. The RJ45 ports incorporate integrated magnetics (pulse transformers) that provide 1,500 V AC galvanic isolation between the cable shield and the internal logic ground, attenuating common-mode transients induced by ground potential differences between cabinet sections — a frequent failure mode in large factory installations where ground loops span tens of meters.

Dual Power Input with Fault Relay
The redundant 24 V DC input architecture uses a passive diode-OR circuit: both supply terminals are active simultaneously, and the higher-voltage source supplies the load. If either supply drops below the undervoltage threshold (~18 V DC), the fault signaling relay contact (floating, max. 100 mA / 24 V DC) changes state, enabling the PLC or SCADA system to generate a diagnostic alarm without polling the switch. This hardware-level fault propagation path operates independently of any software layer, ensuring alarm latency is bounded by relay response time rather than polling cycles.

Auto-MDI/MDIX and Auto-Negotiation
All eight RJ45 ports implement IEEE 802.3u auto-negotiation and automatic MDI/MDIX crossover detection. This eliminates the need for crossover cables when connecting two switches in a cascade or when connecting a device with a non-standard MDI configuration — a practical benefit during rapid commissioning where cable inventory is limited.

Fanless Thermal Design
The aluminum housing acts as a passive heat spreader. At maximum load (3.5 W dissipation), the internal junction temperature of the switching ASIC remains within its rated operating envelope up to +60 °C ambient. The absence of rotating components removes the single most common mechanical failure mode in electronic assemblies, contributing directly to the >500,000-hour MTBF figure.

System Integration Benefits

• Zero-Configuration Deployment: No IP address assignment, VLAN configuration, or management software is required. The switch is operational within seconds of power application, reducing commissioning time on the factory floor to the duration of cable termination.
• PROFINET IO Transparency: As a Layer 2 device, the switch is fully transparent to PROFINET IO cyclic data exchange. The PROFINET controller’s IO cycle — typically 1 ms to 4 ms — passes through the switch without modification, preserving the deterministic timing contract between controller and IO devices.
• SIMATIC Ecosystem Compatibility: The S7-300 rail mounting option allows the switch to be installed directly on the same mounting rail as SIMATIC S7-300 CPUs and signal modules, reducing cabinet depth requirements and simplifying cable routing between the PLC backplane and the network segment.
• Diagnostic Transparency via Fault Relay: The hardware fault relay output can be wired directly to a SIMATIC digital input module, enabling the PLC program to monitor power supply health of the network switch without requiring SNMP, web interface, or any managed-switch protocol overhead.
• Wide Supply Voltage Tolerance: The 18–32 V DC input range accommodates voltage sag conditions on 24 V DC bus systems during motor start-up transients, preventing nuisance resets that would disrupt active PROFINET IO communication cycles.
• Conformal Coating for Harsh Environments: The PCB conformal coating provides protection against condensation, dust ingress, and corrosive atmospheres (IEC 60721-3-3 Class 3C2), extending service life in food processing, chemical, and outdoor-adjacent enclosure applications.
• Long-Term Product Availability: The SCALANCE X200 series carries Siemens’ long-term availability commitment, reducing obsolescence risk for OEM machine builders and system integrators who require consistent spare parts availability over 10+ year machine lifecycles.
• Compact 60 mm Width: The 60 mm cabinet footprint allows eight Ethernet ports to be accommodated in the same horizontal space as a single SIMATIC S7-300 power supply module, maximizing port density per unit of DIN rail length in space-constrained control cabinets.
