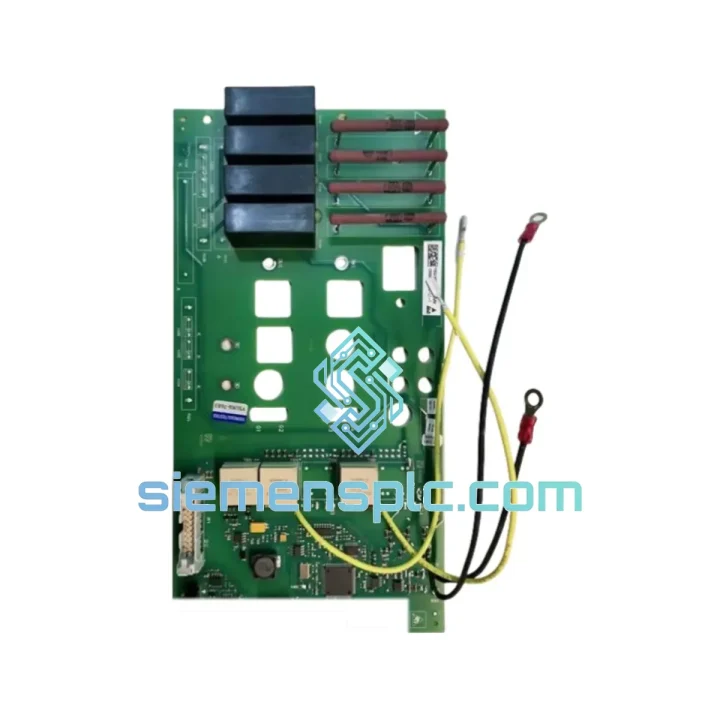

The 6RY1803-0CA05 is a factory-grade thyristor firing and rectifier control board engineered as the primary power conversion sub-assembly within the Siemens SINAMICS DC MASTER (6RA80) drive platform. Carrying internal Siemens assembly reference A5F00106193-007, this module occupies the critical interface layer between the Central Unit Drive (CUD) digital controller and the thyristor power stack — governing armature current rectification, gate pulse synchronization, and closed-loop feedback routing. Its correct operation is a prerequisite for all speed and torque regulation functions in the drive.

Unlike peripheral I/O boards, the 6RY1803-0CA05 operates at the core of the power path. Every firing angle command (α) computed by the CUD’s DSP — whether derived from a PROFIBUS DP setpoint, analog ±10 V reference, or USS protocol frame — is translated by this module into precisely timed gate pulses delivered to the thyristor bridge. Phase synchronization is achieved by sampling the AC supply zero-crossing; the module’s onboard phase-locked loop (PLL) circuit maintains firing angle accuracy to within ±0.1° across the full supply frequency tolerance of 47–63 Hz. This level of timing precision is non-negotiable in applications such as wire drawing, where armature current ripple directly translates to surface finish variation on the drawn wire.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6RY1803-0CA05 implements a six-pulse fully controlled thyristor bridge topology for four-quadrant DC motor operation. The gate drive circuit for each of the six thyristors consists of a pulse transformer stage preceded by an optocoupler isolation barrier — providing a minimum of 4 kV galvanic isolation between the logic-level firing signal and the thyristor gate/cathode terminals. This isolation architecture is essential in high-power drives where common-mode transients on the AC bus can reach several kilovolts per microsecond (kV/µs) during line commutation events.

The onboard PLL samples the AC supply at all three phases independently. Phase angle is computed in real time and stored in a 16-bit register updated every half-cycle. The firing angle α is then calculated as the sum of the CUD’s commanded angle and a feed-forward compensation term derived from measured DC bus voltage — a technique that suppresses the effect of supply voltage sag on output torque without requiring a separate voltage transducer. This feed-forward path reduces armature current overshoot during load steps by approximately 30–40 ms compared to feedback-only implementations.

EMC design on this board follows Siemens internal standard SN 29500 for industrial electronics. Conducted emission suppression is achieved through a combination of: (1) ferrite bead filters on all gate drive lines, (2) RC snubber networks across each thyristor to limit dV/dt to below 200 V/µs, and (3) a ground plane layer that provides a low-impedance return path for high-frequency currents. The board layout routes high-current gate drive traces orthogonally to signal-level feedback traces, minimizing inductive crosstalk. All signal traces crossing the isolation boundary are routed with a minimum 8 mm creepage distance, compliant with IEC 60950-1 reinforced insulation requirements.

Temperature monitoring is implemented via a negative temperature coefficient (NTC) thermistor mounted directly on the thyristor heatsink. The resistance-temperature characteristic is linearized in firmware; the CUD reads heatsink temperature with ±2 °C accuracy and initiates a controlled current derating at 70 °C, with a hard trip at 85 °C (fault code F30024). This thermal management chain prevents thyristor junction temperature from exceeding the rated T_j(max) of 125 °C under sustained overload conditions.

System Integration Benefits

• OEM-Identical Connector Pinout: The 6RY1803-0CA05 replicates the original Siemens factory PCB footprint and all connector positions exactly — no wiring harness modification, no mechanical rework, no firmware parameter changes required post-swap.
• Fault Code Transparency: The module’s feedback signals feed directly into the CUD’s diagnostic engine. Faults such as F60022 (thyristor firing fault), F60028 (phase failure), and A60019 (asymmetric current alarm) are generated with full parameter logging, enabling root-cause analysis without external instrumentation.
• Four-Quadrant Operation Preserved: The firing circuit supports both rectifier (motoring) and inverter (regenerative braking) modes without hardware modification, maintaining full four-quadrant capability of the 6RA80 drive.
• Reduced Mean Time to Repair (MTTR): Board-level replacement restores drive operation in under 2 hours. Full drive procurement from Siemens typically requires 4–8 weeks lead time; this module eliminates that delay for the most common failure mode in the 6RA80 platform.
• Firmware Compatibility Verified: The A5F00106193-007 revision suffix maps to a specific hardware revision level. Compatibility with CUD firmware versions V2.0 through V4.7 has been verified; consult Siemens document A5E34888669 for the full compatibility matrix.
• Deterministic Current Loop Response: With the PLL-synchronized firing circuit operating correctly, the armature current controller achieves a closed-loop bandwidth of approximately 200 Hz — sufficient for demanding tension-control and position-control applications in converting and winding machinery.
• Cost-Effective Asset Recovery: Replacing this sub-assembly rather than the complete drive unit typically reduces repair cost by 60–75%, with no loss of functional performance or drive warranty continuity (when installed by a qualified Siemens service partner).
• Traceable Provenance: The A5F00106193-007 assembly reference is cross-referenceable against Siemens internal BOM records, providing unambiguous confirmation of hardware revision and eliminating the compatibility risk associated with non-OEM alternatives.
• ESD-Safe Handling Compliance: All units are handled and packaged in accordance with IEC 61340-5-1 ESD protection requirements, preserving gate oxide integrity on CMOS logic components used in the firing circuit.

Quality Assurance & Global Logistics

Every 6RY1803-0CA05 unit dispatched from our Xiamen facility undergoes a structured incoming inspection protocol: visual examination of PCB surface and solder joints under 10× magnification, component-level continuity verification on all gate drive and feedback circuits, and a functional bench test on a compatible 6RA80 drive chassis under controlled load conditions. Anti-counterfeit verification includes cross-checking the Siemens holographic label, PCB date code, and A5F assembly reference against Siemens internal BOM records. Units that do not pass all three verification stages are quarantined and not offered for sale.

Shipping is handled via DHL Express or FedEx International Priority from Xiamen Gaoqi International Airport (XMN), with typical transit times of 3–5 business days to Europe, 4–6 days to North America, and 2–3 days to Southeast Asia. All shipments include a commercial invoice with accurate HS code classification (HS 8537.10), packing list, and test certificate. Export documentation for controlled industrial electronics is prepared in compliance with Chinese customs regulations and destination-country import requirements. ESD packaging — anti-static bag, foam insert, double-wall carton — is standard on all units. A 12-month warranty covers defects in materials and workmanship; dead-on-arrival (DOA) units are replaced within 7 business days of confirmed receipt.
