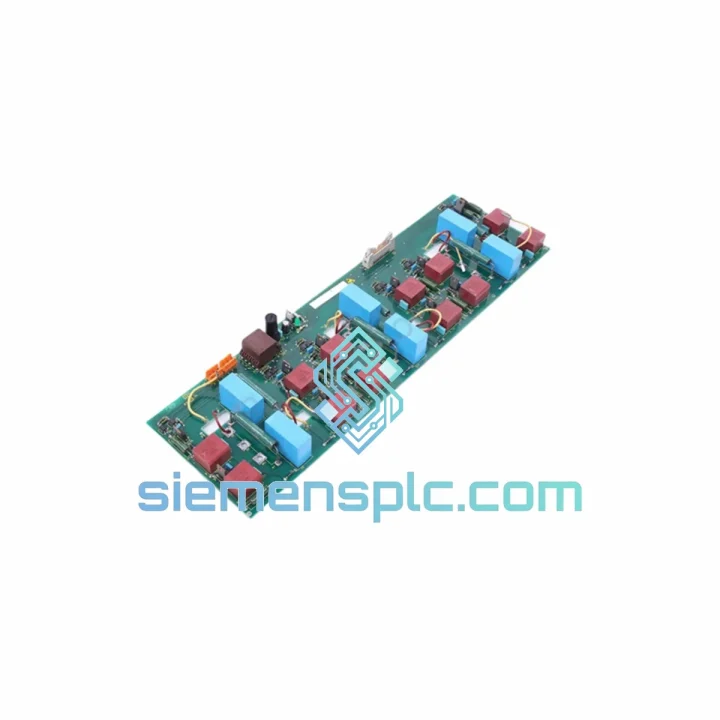

Siemens 6SC9833-0BG20 Rectifier Trigger Module – SIMOVERT P

Siemens 6SC9833-0BG20 Thyristor Firing Control Board – Phase-Angle Regulation at the Core of SIMOVERT P Rectifier Stages

The 6SC9833-0BG20 occupies the firing-control position within the SIMOVERT P variable-speed drive architecture. Its singular function is to translate a continuous firing-angle demand signal (α*) — issued by the upstream closed-loop current or speed regulator — into six precisely timed gate pulses that command the thyristor bridge of the rectifier stage. The accuracy and repeatability of those pulses determine the quality of the DC bus voltage, the smoothness of torque delivery, and the thermal loading of the power semiconductors. A degraded or failed trigger board manifests immediately as DC bus instability, torque ripple at six times line frequency, or a hard drive fault — making this module a first-priority spare in any SIMOVERT P maintenance inventory.

Unlike a generic firing card, the 6SC9833-0BG20 is factory-calibrated to the SIMOVERT P signal chain. Its synchronization input accepts the secondary voltage of the drive’s internal line transformer, from which an on-board zero-crossing detector constructs a 6-pulse reference grid locked to the actual supply frequency. This hardware-level synchronization eliminates the phase jitter that would otherwise appear if firing were derived from a free-running oscillator, and it automatically tracks supply-frequency deviations within the ±2 Hz tolerance common in industrial grids.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SC9833-0BG20 implements a classic but highly refined analog firing-angle control topology. The synchronization stage uses a precision zero-crossing comparator referenced to the transformer secondary. Each of the three line phases generates two zero-crossing events per cycle (positive and negative), yielding six reference points per period — the natural commutation points of the full-wave bridge. These six timestamps are stored in a ring counter that drives six independent phase-shift circuits.

The phase-shift circuit for each channel is a voltage-controlled delay line: the firing-angle demand voltage (α*) sets the delay from the natural commutation point to the gate pulse emission. Because the delay is proportional to α* and the period is locked to line frequency, the resulting firing angle is inherently immune to supply-frequency variation. At α = 0°, the thyristors fire at the natural commutation point, delivering maximum average DC voltage. At α = 90°, average DC voltage is zero. Beyond 90°, the bridge operates in inverter mode, returning energy to the AC supply — a capability exploited in regenerative SIMOVERT P configurations.

EMC Design: Gate pulse lines are routed as twisted pairs on the PCB and terminated at individual pulse transformers mounted close to the board edge connector. This minimizes the loop area of the high-dV/dt gate drive circuit, reducing radiated emissions. The 24 V supply rail is decoupled with a multi-stage LC filter on the board, attenuating conducted interference from the drive’s switching environment. The conformal coating provides a secondary barrier against surface leakage currents in humid or contaminated atmospheres, consistent with the IEC 60721-3-3 Class 3C2 chemical environment classification applicable to many process-industry installations.

Fault Detection Logic: A pulse-monitoring circuit samples each gate output and compares it against the expected firing schedule. If a pulse is absent or arrives outside a ±5° window, the board asserts a fault signal on the drive’s diagnostic bus. This allows the SIMOVERT P controller to distinguish a trigger-board fault from a thyristor failure or a synchronization loss, reducing mean time to repair by directing maintenance personnel to the correct sub-assembly without oscilloscope probing.

System Integration Benefits

• Zero-Wiring Replacement: The 6SC9833-0BG20 uses the identical connector pinout and PCB outline as the factory-installed board. Swap-out requires no wiring changes, no re-calibration of external components, and no firmware update — the drive’s auto-commissioning routine re-establishes firing-angle offset at the next power-on sequence.
• Deterministic Firing Latency: Hardware-locked synchronization ensures gate pulses are issued within ±0.5° of the demanded firing angle on every cycle, giving the current controller a predictable plant model and enabling tighter current-loop bandwidth without instability risk.
• 4-Quadrant Compatibility: The full 0°–150° firing range supports both rectifier (motoring) and inverter (regenerative braking) operation. In dual-bridge regenerative drives, two boards operate in anti-parallel, with the drive controller managing the crossover dead-band — no hardware modification to the trigger board is required.
• Diagnostic Transparency: The on-board pulse-monitoring output integrates directly with the SIMOVERT P fault-logging system, providing a timestamped fault code that distinguishes trigger-board anomalies from power-section or control-section faults. This reduces unplanned downtime by shortening fault-isolation time from hours to minutes.
• Thermal Stability: Precision resistors and capacitors in the phase-shift network are specified with ≤50 ppm/°C temperature coefficients, ensuring firing-angle accuracy remains within ±1° across the full 0–55 °C operating range. This prevents torque drift in processes sensitive to speed regulation, such as paper-machine section drives.
• Galvanic Isolation Integrity: Six individual pulse transformers provide ≥2.5 kV isolation between the low-voltage control circuit and the thyristor gate-cathode circuit. This protects the 24 V control supply and the upstream regulator from thyristor-side transients generated during commutation notches or line disturbances.
• Conformal Coating Durability: The acrylic conformal coat applied to the PCB surface resists moisture ingress, flux residues, and airborne particulates common in steel mills, cement plants, and chemical facilities. It extends mean time between failures in environments where uncoated boards would develop surface leakage within months.
• Inventory Consolidation: A single 6SC9833-0BG20 board serves multiple SIMOVERT P drive ratings within the 6SC98xx series, reducing the number of unique spare-part numbers a maintenance department must stock. One board covers a range of drive power classes, lowering total spare-parts inventory value.

Quality Assurance & Global Logistics

Every 6SC9833-0BG20 unit dispatched from our Xiamen facility has passed a structured functional verification protocol. The board is installed in a SIMOVERT P test rig operating at rated DC bus voltage. Firing-angle linearity is swept from 0° to 150° in 15° increments; output pulse timing is measured against the synchronization reference using a digital storage oscilloscope. Isolation resistance between gate outputs and the 24 V supply rail is verified at 500 V DC (minimum 100 MΩ). Pulse transformer turns ratio and magnetizing inductance are checked against factory reference values. Only boards that pass all checkpoints receive a test-pass label with the technician ID and test date.

Units sourced as OEM-new carry original Siemens factory packaging with intact date-code labels. Tested surplus units are re-packaged in anti-static bags with desiccant and humidity indicator cards, then placed in double-wall corrugated cartons with 50 mm foam cushioning on all six faces. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to the destination country’s import requirements, minimizing customs clearance delays.

Logistics from Xiamen Gaoqi International Airport or Xiamen Port to major industrial hubs: DHL Express to Europe in 3–5 business days; FedEx International Priority to North America in 4–6 business days; sea freight consolidation available for multi-unit orders. All shipments include a tracking number issued within 24 hours of payment confirmation. For urgent plant-down situations, same-day dispatch is available for in-stock units when payment is confirmed before 14:00 CST.
