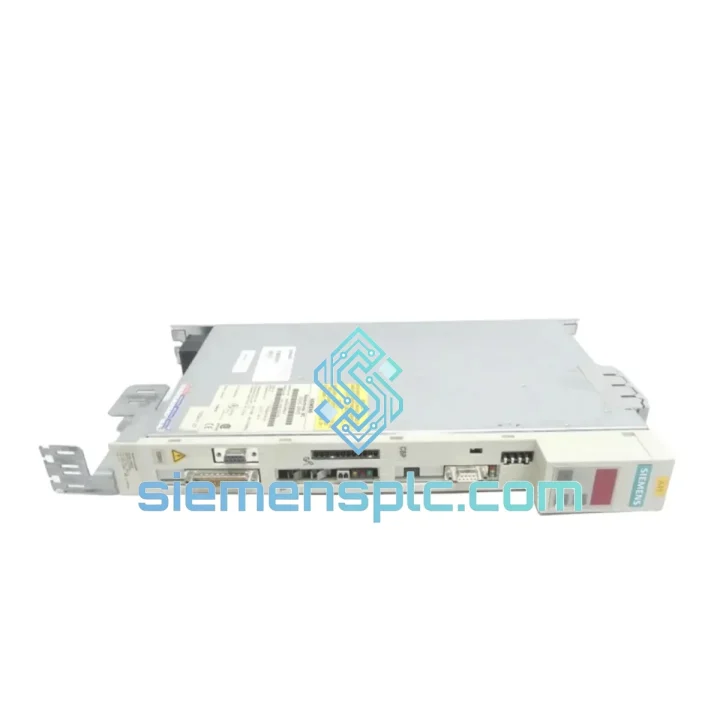

Siemens 6SE7012-0TP50-Z AC Drive MASTERDRIVES MC

Siemens 6SE7012-0TP50-Z Z=C23+G91+K80 — PROFIBUS-Integrated Motion Control Inverter for Precision Industrial Drives

The Siemens 6SE7012-0TP50-Z with option string Z=C23+G91+K80 is a member of the SIMOVERT MASTERDRIVES MC (Motion Control) Control Compact Plus family — a chassis-mount AC variable frequency drive rated at 1.2 kW output power on a 3-phase 380–480 V AC supply. Unlike general-purpose inverters, the MASTERDRIVES MC platform is architected around closed-loop vector control with sub-millisecond torque response, making it the correct selection for servo-class positioning tasks where a standard V/f drive cannot meet dynamic stiffness requirements.

The three factory-fitted options embedded in this order code materially change the hardware configuration: C23 installs a CBP2 PROFIBUS DP communication board, enabling cyclic process data exchange at up to 12 Mbit/s with any SIMATIC S7 or third-party PROFIBUS master; G91 adds an encoder evaluation board accepting HTL (5–30 V) or TTL (5 V) incremental signals up to 300 kHz input frequency, providing shaft-position feedback for field-oriented control; and K80 integrates a braking chopper transistor directly on the power board, allowing connection of an external braking resistor without a separate chopper module — a significant panel-space saving in retrofit and compact-cabinet projects.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Power Stage Architecture. The 6SE7012-0TP50-Z uses a three-phase IGBT inverter bridge with a DC-link capacitor bank sized for the 1.2 kW rating. The DC bus voltage under nominal 400 V input sits at approximately 565 V DC. The integrated K80 braking chopper transistor is connected directly across this DC bus; its switching threshold is factory-set at 780 V DC, activating regenerative energy dissipation through the external resistor before the bus voltage reaches the overvoltage trip point (~820 V DC). This architecture eliminates the propagation delay inherent in an external chopper module, reducing the risk of nuisance overvoltage faults during rapid deceleration of high-inertia loads.

Field-Oriented Control Engine. The MC variant’s DSP executes the full FOC algorithm — including flux model computation, current decoupling, and space-vector PWM generation — within a 250 µs control cycle at 4 kHz carrier frequency. When the G91 encoder board is fitted, the shaft position feedback loop closes at this same 250 µs rate, giving the speed controller a bandwidth of approximately 50 Hz — sufficient for most machine-tool feed-axis and conveyor positioning tasks. Without the encoder (SLVC mode), the flux model relies on a motor parameter identification run (auto-tuning) to maintain torque accuracy down to approximately 3 Hz output frequency.

EMC Design. The Control Compact Plus chassis integrates a Class A conducted-emission filter on the DC-link supply rails. The CBP2 PROFIBUS board (C23) uses optical isolation between the fieldbus transceiver and the drive’s internal logic ground, preventing common-mode noise from the inverter switching from coupling into the PROFIBUS segment. The encoder board (G91) similarly uses differential line receivers (RS-422 compatible) with 120 Ω termination, maintaining signal integrity on encoder cables up to 50 m at 300 kHz input frequency.

Thermal Management. The internal heatsink is cooled by a temperature-controlled fan that ramps speed based on a thermistor reading from the IGBT module case. At ambient temperatures below 30 °C and light loads, the fan may operate at reduced speed, extending bearing life. A thermal model running in the DSP tracks junction temperature independently of the physical sensor, triggering a pre-alarm at 85% of the thermal limit and a controlled shutdown at 100%, protecting the IGBT module from thermal runaway without requiring external thermal relays.

Diagnostic Register Architecture. The drive maintains a fault history buffer of 8 entries with timestamps referenced to the internal operating-hours counter. Each fault record stores the DC bus voltage, output current, output frequency, and thermal load at the moment of fault — data accessible via PROFIBUS DPV1 acyclic reads or the serial USS protocol on the BOP interface. This structured fault logging significantly reduces mean time to diagnose (MTTD) in field service scenarios.

System Integration Benefits

• Deterministic PROFIBUS DP Cycle. The CBP2 board supports GSD-file-based configuration in SIMATIC STEP 7 and TIA Portal. Cyclic process data (setpoint speed/torque, actual values, status word) exchanges within the PROFIBUS cycle time — typically 1–5 ms at 1.5 Mbit/s — giving the PLC deterministic feedback without polling overhead.
• Plug-and-Play Encoder Interface. The G91 board accepts standard 5 V TTL or 10–30 V HTL encoders without external signal converters. The drive auto-detects encoder pulse count via the parameter set, eliminating manual scaling calculations during commissioning.
• Integrated Braking Without External Module. The K80 chopper removes one hardware component from the panel BOM, reducing wiring complexity, potential failure points, and panel footprint by approximately 15–20% compared to an equivalent drive with an external chopper unit.
• Seamless SIMATIC S7 Integration. Pre-built function blocks (FB) for MASTERDRIVES MC are available in the Siemens Drive Library for S7-300/400/1500, reducing PLC programming time for speed reference, fault acknowledgment, and parameter access via DPV1.
• Scalable Fieldbus Topology. Up to 31 drives can share a single PROFIBUS segment without a repeater at 1.5 Mbit/s, with segment extension via RS-485 repeaters. The CBP2 supports both DP-V0 (cyclic) and DP-V1 (acyclic parameter access), enabling online parameter changes without stopping the drive.
• Precision Torque Control for Winding Applications. In torque-control mode with encoder feedback, the drive maintains torque accuracy within ±2% of rated torque across the full speed range, suitable for web-tension control in printing and converting machinery.
• Configurable Digital and Analog I/O. The base unit provides 6 digital inputs (24 V DC), 3 digital outputs (relay), 2 analog inputs (±10 V / 0–20 mA), and 1 analog output (0–20 mA), all parameterizable via BICO (Binector-Connector) technology — allowing signal routing between internal drive signals and physical terminals without hardware rewiring.
• Safe Isolation for Maintenance. The drive supports a Safe Pulse Cancellation (SPC) function via a dedicated hardware input, disabling the IGBT gate signals while keeping the control electronics powered. This allows parameter inspection and fieldbus communication to remain active during mechanical maintenance without full power-down — reducing restart time after maintenance windows.

Quality Assurance & Global Logistics

Every Siemens 6SE7012-0TP50-Z unit supplied by siemensplc.com is sourced through verified Siemens distribution channels. Each unit carries a traceable Siemens factory serial number, which can be cross-referenced against Siemens production records. Before dispatch from our Xiamen, China warehouse, each unit undergoes a physical inspection covering label integrity, housing condition, firmware version stamp, and connector pin condition. Units showing any sign of repackaging, relabeling, or counterfeit indicators are quarantined and not shipped.

Our Xiamen location provides direct access to major international freight hubs, enabling DHL Express, FedEx International Priority, and UPS Worldwide Expedited shipments with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. For project orders requiring multiple units, sea freight consolidation from Xiamen Port is available with full export documentation: commercial invoice, packing list, certificate of origin, and HS code 8537.10 classification. All shipments comply with applicable export control regulations.

A 12-month warranty against manufacturing defects is provided on all genuine new units. Warranty claims are processed with a target response time of 48 hours. Replacement units are dispatched from Xiamen stock where available, minimizing production downtime for our customers.
