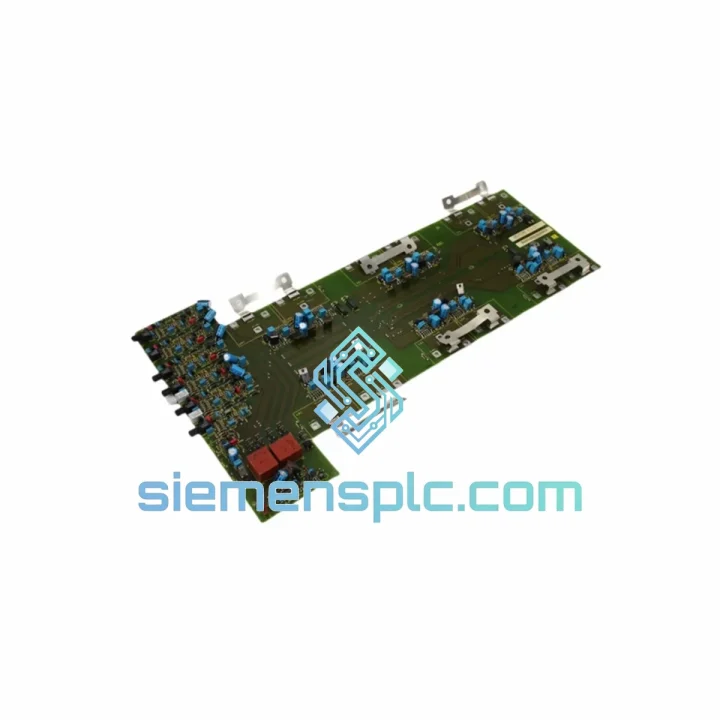

Siemens 6SE7031-7HG84-1JC1 Inverter Triggering Module

6SE7031-7HG84-1JC1 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every hour a MASTERDRIVES Frame F drive sits dead on your floor, you’re bleeding production revenue. The Siemens 6SE7031-7HG84-1JC1 Inverter Triggering Module is the exact gate-drive board that bridges your CU control board to the IGBT power stack — and when it fails, nothing else will bring that drive back. We stock it. We ship it. DHL Express from Xiamen, door-to-door, often within 48 hours of order confirmation.

No substitutes. No refurbished gambles unless you ask for them. This is the OEM board, sourced through verified MRO channels, inspected before it leaves our warehouse.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 6SE7031-7HG84-1JC1 fails in predictable ways. Here’s what ten years of field calls have taught us about this board:

Fault F023 / F024 — IGBT Overcurrent or Short Circuit: Nine times out of ten, the power stack is still intact. The triggering board’s gate-drive output transistors have failed open or shorted, sending a corrupted gate pulse that the drive interprets as a phase-to-phase fault. Swap the triggering board first before condemning the IGBT module — it’s a $200 fix versus a $2,000 one.

Fault F011 — DC Link Overvoltage on Deceleration: If this fault appears only during ramp-down and the braking resistor checks out, inspect the fiber-optic receiver on the triggering board. Contaminated or cracked HFBR connectors cause intermittent gate-signal dropout, which prevents the lower IGBTs from clamping the DC bus correctly.

Replacement Procedure (Frame F):

1. Isolate and lock out the drive. Verify DC bus voltage below 50 V with a calibrated meter — capacitors hold charge for up to 5 minutes after power-off.
2. Photograph the fiber-optic cable routing before disconnecting. The HFBR connectors are keyed but the cable lengths are not — incorrect re-routing causes signal delay faults.
3. Remove the four M4 standoff screws securing the triggering board to the power stack heatsink bracket.
4. Disconnect the 24 V DC ribbon connector and both fiber-optic cables (TX/RX — note color coding).
5. Install the new 6SE7031-7HG84-1JC1. Do not overtorque the standoffs — 1.2 Nm maximum to avoid PCB stress fractures near the gate-drive output pads.
6. Reconnect fiber-optic cables. Clean HFBR ferrules with isopropyl alcohol if there is any contamination.
7. Power up in a no-load condition. Monitor P-values P006 (DC bus voltage) and P010 (output current) during the first run. Any asymmetry between phases within the first 10 seconds indicates a gate-drive timing issue — power down immediately and recheck connections.
8. No dip-switch or address configuration is required on this board. It is not a self-addressing module. Parameters are held on the CU board and are unaffected by a triggering board swap.

Firmware note: If the CU board is running firmware below V3.1, a triggering board swap may trigger a parameter checksum warning on first boot. This is cosmetic — acknowledge and continue. No re-parameterization is needed.

Reliability in Harsh Conditions

MASTERDRIVES Frame F drives live in environments that would destroy consumer electronics in a week. Steel mills, paper machines, offshore platforms, cement plants — the 6SE7031-7HG84-1JC1 was engineered for exactly these conditions, and the units we supply have been verified to meet those same standards.

The board’s conformal coating protects the gate-drive circuitry against humidity up to 95% RH non-condensing — critical in coastal and tropical installations where moisture ingress is a constant threat. The PCB substrate and component selection are rated for continuous operation from -10 °C to +55 °C ambient, with short-term excursions to +70 °C without parameter drift in the gate-drive timing.

Vibration resistance meets IEC 60068-2-6 Class 3M4 — the same standard applied to the drive chassis itself. The standoff mounting design isolates the board from the mechanical resonance of the heatsink assembly, which is the primary vibration transmission path in a running drive. Field experience confirms that properly torqued boards show no connector fatigue or solder-joint cracking even after five years of continuous operation in pump and compressor applications.

Every unit we ship is packed in anti-static shielding bags with a humidity indicator card. If the card reads above 30% RH on arrival, contact us immediately — we will replace the unit, no questions asked.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct DHL Express and FedEx International Priority access. Here’s exactly what happens after you confirm your order:

1. Day 0 — Order Confirmation: Payment confirmed before 14:00 CST triggers same-day picking and inspection. The board is tested for gate-signal output continuity and 24 V DC bus draw before packaging.
2. Day 0 — Export Documentation: Commercial invoice, packing list, and HS 853710 export declaration are prepared simultaneously. For customers requiring a Certificate of Conformance or test report, these are generated and attached to the shipment documentation.
3. Day 1 — Carrier Handoff: DHL Express or FedEx International Priority pickup from our facility. Tracking number issued to your email within 2 hours of handoff.
4. Day 2–4 — Delivery: Most destinations in Southeast Asia, the Middle East, and Europe receive shipments within 2–3 business days from Xiamen. North America typically 3–4 business days. Remote locations may require an additional day.

We do not use consolidation freight for urgent orders. Every express shipment goes direct, door-to-door, with full customs clearance handled by the carrier. Import duties and taxes are the buyer’s responsibility — we provide accurate HS codes and declared values to ensure smooth customs clearance and avoid delays.

For orders requiring same-day dispatch after 14:00 CST, contact us directly via WhatsApp. We will confirm feasibility within 30 minutes.
