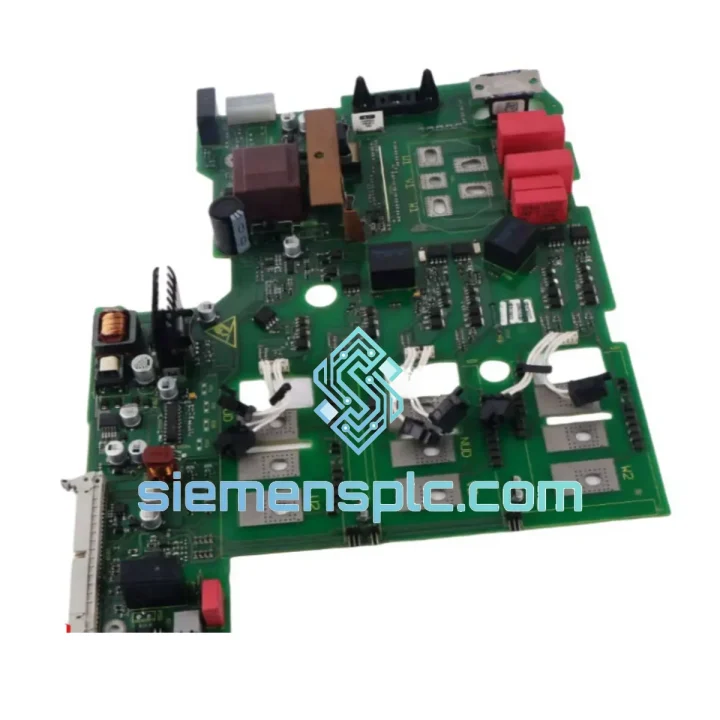

Siemens 6SE7027-2ED84-1HF5 Vector Control Unit

6SE7027-2ED84-1HF5 Down? Every Minute of Downtime Is Money Bleeding Out — We Ship Today

Your MASTERDRIVES MC line just tripped. The CU board is dead. Production is at zero. You’ve already called your local distributor — 4 to 6 weeks lead time. That’s not an option. We stock the Siemens 6SE7027-2ED84-1HF5 Vector Control Unit in Xiamen, China, and we move fast. DHL Express to most destinations in 3–5 business days. No waiting, no excuses — just the part you need, on your bench, fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 6SE7027-2ED84-1HF5 is not plug-and-play if you skip these steps. Here’s what 10 years of field work teaches you:

1. Parameter Backup First — Always
Before you pull the old CU, connect DriveMonitor or STARTER via RS-232 and export the full parameter set (.par file). If the old board is completely dead and won’t power up, check if a backup exists on the OP1S operator panel — it stores a local copy. No backup means you’re re-commissioning from scratch, which on a winding line or crane can take half a day.

2. Firmware Version Matching
The replacement CU must run the same firmware version as the original, or you risk parameter incompatibility on upload. Check the firmware label on the CU PCB (visible through the front panel cutout). Common versions in the field: V1.4x, V1.5x. If the replacement unit ships with a different version, contact Siemens technical support for a firmware downgrade file before restoring parameters.

3. Option Board Transfer
The CBP2 (PROFIBUS) and T400 (technology) boards are not included with the CU — they transfer from the old unit. Power down, discharge the DC bus (wait minimum 5 minutes after power-off, verify with a meter), then carefully extract the option boards from slots A and B. Re-seat them in the same slot positions on the new CU. Slot assignment matters: PROFIBUS node address is stored in the CBP2 board, not the CU.

4. Encoder Cable Integrity Check
If the original failure was caused by an encoder fault (F035 / F036 in the fault history), don’t just swap the CU and call it done. Inspect the encoder cable shield continuity and connector pins. A shorted encoder output can damage the new CU’s input circuit within hours. Replace the encoder cable if there’s any doubt.

5. Common Fault Codes on This Platform

• F001 / F002 — Overcurrent / DC bus overvoltage. Usually a load-side issue, not the CU. Check motor insulation and braking resistor before condemning the board.
• F011 — Motor overtemperature. Verify PTC/KTY sensor wiring at terminal X103 before replacing the CU.
• F035 / F036 — Encoder signal fault. Check HTL/TTL encoder supply voltage (15 V or 24 V) and cable shield grounding at the drive end.
• F070 / F071 — PROFIBUS communication loss. Verify CBP2 board seating and PROFIBUS cable termination resistors at both ends of the segment.
• A501 — Alarm: motor stall. Often appears after a CU swap if P-gain (P1120) is not matched to the motor inertia. Re-run the motor identification routine (P115 = 1).

6. Post-Replacement Commissioning Checklist

• Restore parameter file via DriveMonitor — verify P060 (factory reset flag) is NOT set before upload
• Run motor data identification: set P115 = 1, enable drive, let it complete the auto-tune cycle
• Verify PROFIBUS node address in CBP2 matches the original (check PLC hardware config in STEP 7 / TIA Portal)
• Test all DI/DO functions at low speed before returning to full production load
• Log the new CU serial number and firmware version in your maintenance records

Reliability in Harsh Conditions

The MASTERDRIVES MC platform was engineered for environments that would kill consumer-grade electronics. The 6SE7027-2ED84-1HF5 CU is designed to operate continuously in conditions that define heavy industry:

Vibration Resistance: The CU PCB uses conformal coating on critical signal traces and through-hole mounting for high-mass components. Connector locking tabs prevent intermittent contact under continuous mechanical vibration — a real concern in press rooms, compressor halls, and marine applications. Field installations on ship deck cranes and mining conveyors have logged multi-year continuous operation without CU-related failures.

Thermal Cycling: Industrial drives see brutal thermal cycles — cold morning startups in unheated substations, then full-load heat buildup within minutes. The 6SE7027-2ED84-1HF5 is rated for 0–40 °C continuous operation with derating curves published for up to 55 °C ambient. The onboard thermal management relies on the drive chassis fan — verify fan operation and filter cleanliness as part of any replacement procedure. A clogged filter is the #1 cause of premature CU failure in dusty environments like cement plants and woodworking facilities.

Humidity and Condensation: Rated to 95% RH non-condensing, the CU’s conformal coating provides a first line of defense against moisture ingress. However, in coastal or tropical installations, inspect the PCB surface for corrosion on the copper traces around the encoder input terminals — this is the most moisture-sensitive area on the board. If corrosion is visible, the board is compromised and replacement is the correct call, not cleaning.

EMC Robustness: The CU’s signal ground is isolated from the power ground at the chassis level, reducing susceptibility to common-mode noise from IGBT switching. In high-EMC environments (large transformer rooms, arc furnace facilities), ensure the drive cabinet PE bonding is solid and the PROFIBUS cable uses a dedicated shielded pair with shield grounded at one end only.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here’s exactly how your order moves:

Day 0 — Order Confirmation: Payment received and confirmed. The 6SE7027-2ED84-1HF5 unit is pulled from shelf stock, re-inspected (visual + power-on functional test), and packed in anti-static bag with foam-lined double-wall carton. Humidity indicator card included. Gross weight approximately 6 kg with packaging.

Day 1 — Export Clearance: Commercial invoice, packing list, and certificate of origin prepared. HS Code 8537.10 declared. Export customs clearance completed same day through our licensed freight forwarder at Xiamen Gaoqi International Airport.

Day 1–2 — Airfreight Departure: Shipment handed to DHL Express or FedEx International Priority. Tracking number issued to buyer within 2 hours of pickup scan. For urgent shipments, we can book the earliest available flight — typically departing Xiamen same evening for next-day connection through Hong Kong or Shanghai hub.

Day 3–5 — Delivery to Your Door: DHL Express transit times from Xiamen: Europe 3–4 business days, North America 4–5 business days, Southeast Asia 2–3 business days, Middle East 4–5 business days. All shipments are door-to-door with import duty and tax responsibility on the buyer (DAP Incoterms). We provide all documentation required for customs clearance in your country.

Emergency Same-Day Dispatch: For orders confirmed before 14:00 CST, we target same-day dispatch. Contact us via WhatsApp for real-time stock confirmation and dispatch commitment before placing your order.

Contact Information

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
