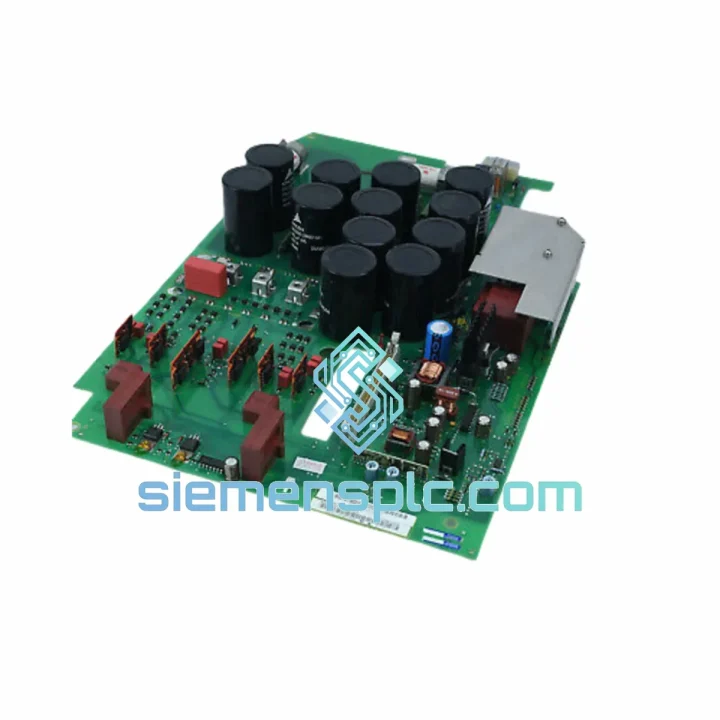

Siemens 6SE7023-4TC84-1HF3 Inverter Drive Board

6SE7023-4TC84-1HF3 — Every Hour of Downtime Costs You. We Ship Today.

Your MASTERDRIVES MC cabinet is down. The spindle won’t respond. The line is cold. You’ve already pulled the drive board and confirmed the fault — it’s the 6SE7023-4TC84-1HF3. You don’t need a sales pitch. You need the part on a plane tonight.

We stock the Siemens 6SE7023-4TC84-1HF3 in Xiamen, China. DHL Express pickup runs daily. If your order clears before 4 PM CST, it moves the same day. That’s the only promise that matters when your production floor is silent.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls on MASTERDRIVES MC systems teach you the same lessons. Here’s what actually matters when you’re swapping a 6SE7023-4TC84-1HF3 under pressure:

Common Fault Codes That Lead to This Board:

• F002 — DC Bus Overvoltage: Often a failed braking chopper IGBT on the drive board. If the brake resistor checks out and the fault persists after reset, the power stage is the culprit.
• F005 — Inverter Overcurrent: Sudden trip with no motor change usually points to a degraded IGBT gate driver on the board, not the motor itself. Measure gate-emitter voltage on all six IGBTs before condemning the motor.
• F011 — Motor Overtemperature (with no actual heat): Corrupted parameter set in the CU board can misread the PTC input. Before replacing the drive board, back up your P-file via DriveMonitor and reload defaults. If F011 clears, the board was fine — the parameter set was corrupt.
• F023 — Ground Fault: Isolate motor cables first. If fault persists with motor disconnected, the IGBT module on the 6SE7023-4TC84-1HF3 has failed to ground. Board replacement is the only fix.
• A070 — Fan Fault: The internal cooling fan on this board has a finite life. Check fan rotation before assuming the power stage has failed — a seized fan causes thermal shutdown that mimics drive board failure.

Step-by-Step Replacement Procedure:

1. De-energise and lock out. Wait a minimum of 5 minutes after mains disconnect before touching the DC bus terminals. Measure DC bus voltage — must be below 50 V before proceeding. The 6SE7023-4TC84-1HF3 holds charge longer than you expect.
2. Back up the parameter set. Connect DriveMonitor or Starter software via the RS232 port on the CU board. Export the full P-file before removing anything. A replacement board ships with factory defaults — your motor data, ramp times, and PROFIBUS node address are gone without this backup.
3. Document the option board configuration. Note which slots carry CBP2 (PROFIBUS) and SBP (encoder) boards. Photograph the wiring before disconnecting. The option board slot assignment is not stored in the P-file.
4. Remove the CU (Control Unit) board first. The CU sits on top of the power section. Disconnect the flat ribbon cable and the 24 V supply connector. Set the CU aside — you will reuse it with the new drive board.
5. Swap the power board. The 6SE7023-4TC84-1HF3 slides out on guide rails after releasing the two captive screws at the front face. Slide the new board in, seat it fully, and torque the screws to 1.5 Nm. Do not overtighten — the front panel is aluminium.
6. Reinstall the CU and option boards. Reconnect the ribbon cable — it is keyed and cannot be reversed, but confirm it is fully seated. A partially connected ribbon causes intermittent F-class faults that are extremely difficult to diagnose.
7. Restore the parameter set. Download your saved P-file via DriveMonitor. Verify motor nameplate data (P0300–P0311), encoder pulse count (P0408), and PROFIBUS node address (P0918) before energising.
8. First energise — no motor connected. Apply mains power and confirm DC bus voltage is nominal (540–680 V DC). Check for F-class faults. If clean, connect the motor and run a short jog command at 5 Hz before returning to full speed.

Configuration Checklist — Do Not Skip:

• PROFIBUS node address (P0918) — must match your S7 hardware configuration exactly
• Motor data set (P0300–P0311) — re-enter from motor nameplate, do not assume defaults are correct
• Encoder pulse count (P0408) — wrong value causes speed oscillation and F005 trips at load
• Ramp-up / ramp-down times (P1120 / P1121) — factory default is 10 s; your application may require different values
• Current limit (P0640) — verify it matches your motor’s rated current, not the drive’s maximum

Reliability in Harsh Conditions

The MASTERDRIVES MC platform was not designed for climate-controlled server rooms. Siemens built the 6SE7023-4TC84-1HF3 for the floor — steel mills, paper machines, automotive transfer lines, and offshore pump skids. The design reflects that reality.

The IGBT module at the heart of this board is rated for junction temperatures up to 150 °C, with a thermal resistance that keeps the die well below that limit at rated current and 40 °C ambient. The gate driver circuit uses isolated DC/DC converters for each IGBT, so a single device failure cannot cascade into a full bridge shoot-through — a failure mode that destroys cheaper drives instantly.

The PCB substrate is conformal-coated to IEC 60721-3-3 Class 3C2, which covers industrial atmospheres with moderate chemical contamination — cutting fluid mist, hydraulic oil vapour, and mild acidic environments. The coating does not make the board waterproof, but it prevents the surface leakage currents that cause nuisance trips and premature failure in humid foundry environments.

Vibration resistance is qualified to IEC 60068-2-6: 0.075 mm displacement at 10–57 Hz, 1 g acceleration at 57–150 Hz. In practice, this means the board survives direct mounting in press-room cabinets and on mobile equipment without the PCB trace cracking that plagues lower-grade drives after 18 months of service.

The forced-air cooling system uses a dual-ball-bearing fan rated for 50,000 hours MTBF at 40 °C. In practice, fan life is the most common maintenance item on this board — not the power electronics. If your unit is approaching 8–10 years of service, replace the fan proactively during the next planned shutdown. The fan is a standard 24 V DC unit available from Siemens spare parts or industrial electronics suppliers.

Global Express Logistics

Our warehouse is in Xiamen, Fujian Province — one of China’s primary export hubs, with direct DHL and FedEx Express gateway access. This is not a drop-ship arrangement. The 6SE7023-4TC84-1HF3 is physically on our shelf, tested, and packed in anti-static foam-lined cartons with humidity indicator cards.

Typical Transit Times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–5 business days via FedEx International Priority
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express
• Africa (South Africa, Nigeria, Egypt): 5–8 business days via DHL Express

Every shipment includes a commercial invoice with accurate HS code classification (HS 8504.40 — static converters) and a packing list. For customers in the EU, we can provide a EUR.1 movement certificate on request to support preferential duty treatment under applicable trade agreements. For US imports, we provide a complete set of documents for CBP entry, including country of origin declaration.

Urgent orders placed before 16:00 CST (UTC+8) ship the same calendar day. Orders placed after cutoff ship the following morning. We send a DHL/FedEx tracking number by email within 2 hours of dispatch. If your shipment is time-critical, contact us on WhatsApp before ordering — we will confirm stock availability and the exact dispatch window in real time.

Export packaging: the 6SE7023-4TC84-1HF3 is wrapped in a 10 mm anti-static foam sleeve, placed in a rigid double-wall corrugated carton, and sealed with tamper-evident tape. Drop-test qualified to ISTA 2A. The unit arrives in the same condition it left our warehouse.
