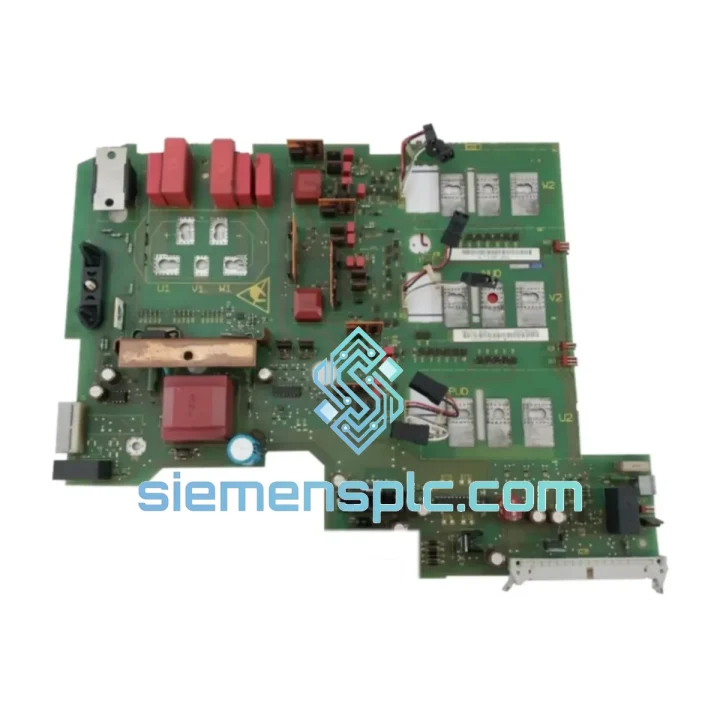

Siemens 6SE7024-7ED84-1HF3 AC Drive Module – SIMOVERT MASTERDRIVES

Siemens 6SE7024-7ED84-1HF3 — Vector-Controlled AC Drive Module for Demanding Industrial Motion Applications

The Siemens 6SE7024-7ED84-1HF3 is a field-proven AC drive module within the SIMOVERT MASTERDRIVES Vector Control platform (6SE70xx series). Designed for continuous-duty industrial environments, this unit delivers closed-loop field-oriented control (FOC) of three-phase induction and synchronous motors, maintaining torque accuracy within ±2% across the full speed range — including near-zero speed operation. The -1HF3 option suffix designates factory-integrated PROFIBUS-DP communication via the CBP2 board, eliminating the need for external fieldbus gateways and reducing panel wiring complexity in distributed automation architectures.

Within the SIMOVERT MASTERDRIVES Compact PLUS chassis family, the 6SE7024-7ED84-1HF3 occupies the mid-power segment, rated at approximately 18.5 kW output at 400 V AC (3-phase). Its power stage employs IGBT switching technology with a nominal DC bus voltage of 540–620 V DC, derived from a 380–480 V AC supply. The internal pulse-width modulation (PWM) frequency is configurable between 2.5 kHz and 8 kHz, allowing engineers to balance switching losses against acoustic noise requirements — a critical trade-off in pump, fan, and compressor applications where audible noise is a site compliance factor.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Photocoupler-Based Gate Drive Isolation: The 6SE7024-7ED84-1HF3 employs optocoupler-isolated IGBT gate drivers on each of the six switching nodes of the three-phase inverter bridge. This galvanic isolation barrier — typically rated at 2.5 kV RMS — prevents high-frequency switching transients on the power stage from propagating into the control board’s signal ground plane. In environments with high common-mode noise (e.g., adjacent variable-frequency drives, large motor contactors), this isolation architecture is the primary defense against spurious control faults and IGBT shoot-through events.

DC Bus Capacitor Bank and Ride-Through Logic: The intermediate DC link uses a bank of electrolytic capacitors sized to sustain the inverter through brief mains dips (typically 10–20 ms at rated load). The firmware monitors DC bus voltage via a dedicated ADC channel at a sampling rate synchronized to the PWM cycle. When bus voltage drops below a configurable threshold (P1240 parameter group), the drive activates kinetic buffering — extracting regenerative energy from the motor’s rotating inertia to maintain bus voltage and avoid a fault trip. This is particularly valuable in continuous-process industries where a nuisance trip causes more damage than a brief speed reduction.

EMC Design and Conducted Emission Suppression: The internal power supply and control board layout follow Siemens’ standard EMC partitioning rules: the high-voltage power section and the low-voltage control section are separated by a physical ground plane barrier on the PCB. Common-mode chokes are placed on the DC bus rails to attenuate high-frequency conducted emissions. For installations requiring EN 61800-3 Category C2 compliance, an external line filter (e.g., 6SE7024-7ED84-1HF3 paired with a 6SE7000-0LD87-2DA0 filter) is recommended — the drive’s internal EMC filter provides Category C3 compliance as standard.

PROFIBUS-DP Communication Architecture (CBP2): The integrated CBP2 board implements the PROFIBUS-DP slave protocol at baud rates up to 12 Mbit/s. Process data exchange (PKW + PZD telegram structure) is handled via the drive’s internal dual-port RAM, decoupled from the main control cycle. This means fieldbus communication latency does not directly impact the 4 ms current control loop cycle time. The CBP2 supports both cyclic process data (speed setpoint, torque limit, status word) and acyclic parameter access (DPV1 services), enabling remote parameterization from a SIMATIC S7 PLC without interrupting drive operation.

Thermal Management and Derating Logic: An NTC thermistor mounted on the IGBT heatsink feeds a dedicated thermal model in the firmware. The drive calculates junction temperature in real time using a simplified Cauer thermal network model, factoring in output current, switching frequency, and ambient temperature. When the calculated junction temperature approaches the IGBT’s rated limit (typically 125 °C), the drive automatically reduces PWM frequency or output current before issuing a fault — a graduated response that prevents abrupt shutdowns in thermally marginal installations.

System Integration Benefits

• Deterministic PROFIBUS-DP Cycle: With CBP2 operating at 12 Mbit/s, the process data update cycle is ≤ 1 ms for a single-slave network, enabling the host PLC to close a speed or position loop over the fieldbus with predictable latency — a prerequisite for coordinated multi-axis motion.
• Seamless SIMATIC S7 Integration: The drive’s GSD file (device description) is natively recognized by STEP 7 and TIA Portal hardware configuration tools. Standard function blocks (FC/FB) from the Siemens Drive Library handle telegram assembly and status decoding, reducing PLC programming effort to parameter assignment rather than raw byte manipulation.
• Closed-Loop Encoder Feedback Compatibility: The SBP or SBR2 encoder evaluation boards (optional, slot-mounted) accept HTL/TTL incremental encoders up to 300 kHz input frequency, enabling true closed-loop speed control with speed accuracy better than 0.01% of rated speed — suitable for winder tension control and precision positioning.
• Kinetic Buffering for Process Continuity: As described in the hardware analysis, the drive’s ride-through logic sustains operation through mains dips up to 20 ms, preventing nuisance trips in facilities with unstable grid supply — common in heavy industrial sites with large motor starting events on the same bus.
• Diagnostic Transparency via Fault Buffer: The drive maintains a 64-entry fault and alarm history with timestamps (referenced to the drive’s internal millisecond counter). Each entry records the fault code, the active parameter set, output current, DC bus voltage, and heatsink temperature at the moment of the event — providing the data needed for root-cause analysis without requiring an oscilloscope on the power terminals.
• Free Function Blocks (FFB) for Application Logic: The SIMOVERT MASTERDRIVES firmware includes a library of configurable free function blocks (comparators, ramp generators, PID controllers, logic gates) that execute within the drive’s own control cycle. Simple closed-loop control tasks — such as pressure regulation using a 4–20 mA transducer — can be implemented entirely within the drive, offloading the PLC and reducing system response time.
• Motor Data Identification Routine: On first commissioning, the drive executes an automated motor identification sequence (P1910 = 1) that measures stator resistance, leakage inductance, and magnetizing inductance at standstill. These measured values replace nameplate estimates in the vector control model, improving torque accuracy without requiring a no-load test run — valuable when the motor cannot be decoupled from the load during commissioning.
• Modular Chassis Compatibility and Hot-Swap Serviceability: The 6SE7024-7ED84-1HF3 is designed for installation in the SIMOVERT MASTERDRIVES Compact PLUS chassis. The module slides into the chassis on guide rails and connects via a backplane connector, allowing replacement without disturbing the DC bus wiring or the control cable harness — reducing mean time to repair (MTTR) to under 30 minutes for a trained technician.

Quality Assurance & Global Logistics

Every Siemens 6SE7024-7ED84-1HF3 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Units are sourced exclusively from authorized Siemens distribution channels and verified OEM surplus inventories with documented chain of custody. Physical inspection covers label authenticity (holographic Siemens security features, date codes, and country-of-origin markings), connector pin condition, and housing integrity. Where test equipment is available, power stage continuity and gate drive response are verified before packaging.

Packaging follows anti-static and shock-protection standards: each unit is placed in an ESD-shielding bag, surrounded by 50 mm minimum foam cushioning, and sealed in a double-wall corrugated carton rated for international air freight handling. Gross weight and dimensions are pre-declared for DHL Express, FedEx International Priority, and UPS Worldwide Express — the three carriers used for standard B2B shipments. Export documentation (commercial invoice, packing list, certificate of origin) is prepared in compliance with Chinese customs regulations and the import requirements of the destination country. HS code 8504.40 applies to this product category for most jurisdictions.

Standard dispatch lead time for in-stock units is 2–3 business days from order confirmation. Transit time to Europe is typically 3–5 business days via air express; to North America, 4–6 business days; to Southeast Asia, 2–3 business days. All shipments include full tracking and are covered by carrier insurance. A 12-month warranty against manufacturing defects is provided on all units sold, with DOA (dead-on-arrival) replacement processed within 5 business days of confirmed fault report.
