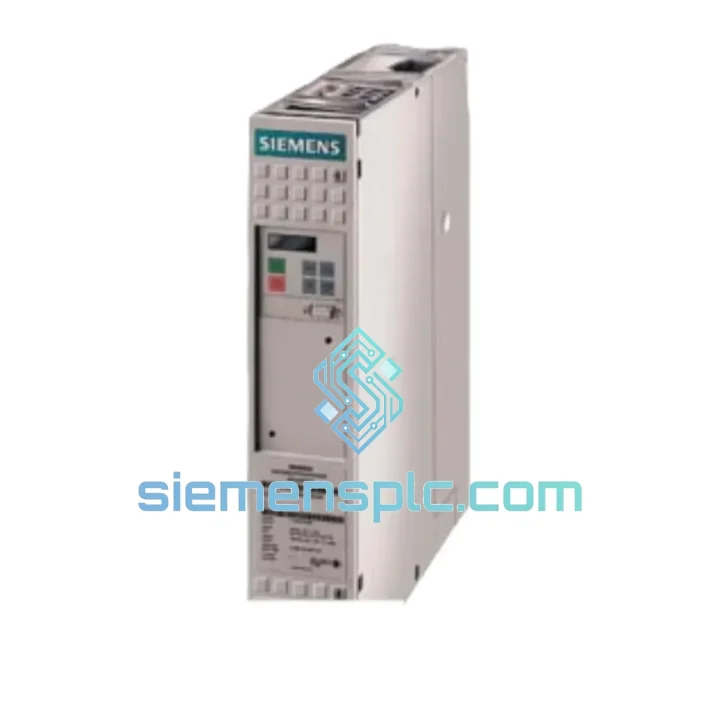

Siemens 6SE7027-2TD61-Z G93+K11+L33 Variable Frequency Drive

Siemens 6SE7027-2TD61-Z G93+K11+L33 — Cut Downtime Now, Not Tomorrow

Every hour your line sits idle with a failed drive costs real money. The Siemens 6SE7027-2TD61-Z G93+K11+L33 is a 75 kW MASTERDRIVES MC vector drive — a unit that shows up in steel mills, heavy conveyors, crane hoists, and process extruders worldwide. When it fails, there is no lightweight workaround. You need the exact part, verified original, on your bench fast. We stock it in Xiamen and ship globally via DHL/FedEx express. Same-day dispatch on confirmed orders before 15:00 CST.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls on MASTERDRIVES MC units teach you the same lessons. Here is what actually matters when you are standing in front of a dead drive at 2 AM:

Most Common Failure Modes on 6SE7027-2TD61-Z

• F023 / F024 — DC bus overvoltage or undervoltage: Nine times out of ten this is a failing DC bus capacitor bank, not a supply issue. Measure DC bus voltage directly. If it sags below 510 V under light load, the capacitors are done. Do not waste time re-tuning parameters — swap the drive.
• F041 — Motor current limit exceeded: Check encoder cable shielding first. A floating shield on a long encoder run will inject noise into the speed feedback loop and cause the drive to fight itself. Re-terminate the shield at the drive end only.
• F060 — PROFIBUS communication fault: Confirm the DP address on the CBP2 option board matches the GSD file entry in your S7 hardware config. A mismatch after a board swap is the most common cause. Also check termination resistors at both ends of the DP segment.
• Thermal shutdown with no apparent overload: The internal NTC thermistor on the IGBT heatsink degrades over time. If the drive trips on overtemperature at 60% load, measure thermistor resistance at ambient — it should read approximately 10 kΩ at 25°C. Drift beyond 15% indicates replacement is overdue.
• Erratic speed at low frequency: This unit uses flux current control (FCC) in sensorless mode. If P1300 (control mode) was changed from 21 (SLVC) to 20 (V/f) by a previous technician, torque response at low speed will be poor. Restore P1300 = 21 and re-run the motor identification routine (P1910 = 1).

Replacement Checklist — Do Not Skip These Steps

• Before powering down: export the full parameter set via DriveMonitor or STARTER. Save to a USB key. The replacement unit ships with factory defaults — you will need every parameter.
• Verify option codes on the replacement unit physically match G93+K11+L33. The option boards are factory-installed; a base 6SE7027-2TD61 without Z options is not a drop-in replacement.
• Check firmware version on the CU (Control Unit) board. MASTERDRIVES MC firmware is not backward-compatible across major versions. If your system was commissioned on firmware 3.x, a unit shipped with 2.x will require a firmware flash before parameter upload.
• Torque the DC bus busbars to spec (refer to the installation manual, typically 10–12 Nm for M8 bolts). Undertorqued connections on a 272 A drive will arc and fail within weeks.
• After parameter restore, run a no-load motor identification (P1910 = 1) before connecting the mechanical load. This recalibrates stator resistance and leakage inductance to the actual motor on site — not the motor the previous drive was tuned to.
• If G93 braking resistor is connected, verify resistor resistance and power rating against the application duty cycle. An undersized resistor will trigger F028 (braking resistor overtemperature) within minutes of the first deceleration ramp.

Reliability in Harsh Conditions

The 6SE70 platform was engineered for environments that destroy lesser drives. The IGBT power modules are rated for junction temperatures up to 150°C, with a thermal management system designed to sustain full rated output at 40°C ambient continuously. The internal bus capacitors are industrial-grade, rated for 105°C operation — not the 85°C consumer-grade parts found in budget drives.

Vibration resistance meets IEC 60068-2-6 Class 3M4, which covers the shock and vibration profiles of steel mill floors, ship engine rooms, and heavy press installations. The conformal-coated PCBs on the control boards resist condensation and airborne contaminants — critical in paper mills, chemical plants, and coastal installations where humidity cycles daily between 20% and 95% RH.

EMC filtering is built in to EN 61800-3 Category C2, which means the drive operates cleanly on industrial power networks without external line reactors in most installations. For particularly dirty supplies (high harmonic distortion, frequent voltage spikes), the built-in DC bus choke provides additional protection that most competing drives require as an external add-on.

Units in our stock are stored in climate-controlled conditions at 15–25°C with humidity maintained below 60% RH. Each unit is inspected for physical damage, label integrity, and seal condition before dispatch. We do not ship drives that have been stored in uncontrolled environments.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. Transit times from Xiamen to major industrial regions are predictable and fast:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, Poland, Turkey): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• South Asia (India, Pakistan, Bangladesh): 3–5 business days via DHL Express
• Australia & New Zealand: 4–6 business days via DHL Express

All shipments include full commercial invoice, packing list, and certificate of origin. For customers requiring DDP (Delivered Duty Paid) terms, we handle customs clearance and import duties on your behalf — your team receives the drive at the door, cleared and ready to install. Export documentation for dual-use goods (EAR99 classification) is prepared in-house; no delays at customs for standard industrial destinations.

Tracking numbers are issued within 2 hours of dispatch. For critical shutdowns, call or WhatsApp us directly — we will coordinate with the courier to prioritize your shipment and provide real-time updates until delivery is confirmed.
