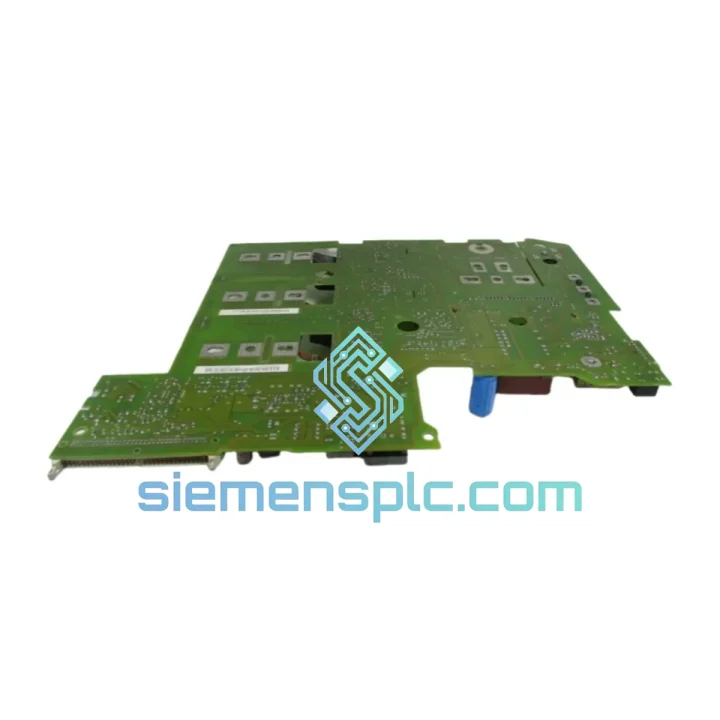

Siemens 6SE7027-2TD84-6HF3 Inverter Module – MASTERDRIVES MC/VC

Siemens 6SE7027-2TD84-6HF3: 75 kW MASTERDRIVES Compact Plus Inverter Module for Shared DC Bus Systems

The 6SE7027-2TD84-6HF3 is a 75 kW inverter module within the Siemens SIMOVERT MASTERDRIVES MC/VC Compact Plus platform, designed for continuous-duty industrial drive applications where modular DC bus architecture, high-dynamic vector control, and deterministic fieldbus communication are non-negotiable system requirements. This module functions exclusively as the inverter stage — it accepts a regulated DC bus input (510–650 V DC) from a companion MASTERDRIVES infeed/rectifier module and delivers a variable-frequency, variable-voltage three-phase AC output to the connected motor load.

The suffix 6HF3 identifies the factory-integrated PROFIBUS DP communication option board, which enables cyclic process data exchange with Siemens S7 PLCs, SIMATIC TDC, and third-party PROFIBUS masters at baud rates up to 12 Mbit/s. This eliminates the need for external protocol converters in Siemens-centric automation architectures and reduces wiring complexity in multi-drive cabinet installations.

The Compact Plus mechanical form factor positions this module for high-density drive cabinet builds. Compared to standard chassis MASTERDRIVES units, the Compact Plus series achieves a measurably smaller footprint per kilowatt of installed power, which is a direct engineering advantage in retrofit projects where cabinet space is constrained by existing infrastructure. The module mounts on a standard DIN rail or panel, with the DC bus bar connection providing both mechanical support and electrical continuity to adjacent modules in a multi-drive lineup.

In shared DC bus configurations — common in steel rolling mills, paper machine drive lines, and crane hoist systems — the 6SE7027-2TD84-6HF3 participates in bidirectional energy exchange across the common DC bus. When a connected motor operates in regenerative braking mode, the recovered kinetic energy is fed back onto the DC bus and consumed by motoring drives elsewhere in the system, reducing net energy drawn from the AC supply. This architecture is a fundamental efficiency mechanism in multi-axis coordinated drive systems and is one of the primary reasons the MASTERDRIVES platform remains specified in heavy industrial applications decades after its introduction.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

IGBT Power Stage & PWM Architecture
The inverter bridge of the 6SE7027-2TD84-6HF3 is constructed from a three-phase IGBT module rated for the 75 kW / 145 A operating point. The gate drive circuits employ desaturation detection — a protection mechanism that monitors the collector-emitter voltage of each IGBT during the on-state. If a short-circuit or overload condition causes the IGBT to exit saturation, the gate drive responds within microseconds to initiate a controlled soft-turn-off, preventing destructive di/dt transients that would otherwise propagate to the DC bus capacitor bank and adjacent modules. This is a hardware-level protection layer independent of the firmware watchdog cycle.

DC Bus Capacitor Bank & Voltage Ripple Management
The module incorporates a local DC bus capacitor bank that serves two functions: it buffers the voltage ripple inherent in the rectified DC supply and provides a local energy reservoir during transient load steps. The capacitance value is sized to maintain DC bus voltage deviation within ±5% during rated load steps, which is a prerequisite for stable vector control operation. The capacitor bank also participates in the pre-charge sequence managed by the infeed module, preventing inrush current spikes during system power-up.

EMC Design & Conducted Emission Suppression
Compliance with EN 61800-3 Category C2 (second environment) is achieved through a combination of internal Y-capacitors connecting the DC bus rails to the module chassis, common-mode chokes on the output phase conductors, and controlled PWM switching edges. The switching frequency selection (2.5 / 5 / 10 kHz) directly affects the spectral distribution of conducted emissions: lower switching frequencies reduce switching losses and shift harmonic energy to lower frequencies where motor cable impedance is lower, while higher switching frequencies reduce audible motor noise at the cost of increased IGBT thermal dissipation. The thermal management system — forced-air cooling with an integrated fan and aluminum heat sink — is rated to maintain junction temperatures within IGBT manufacturer limits at the maximum ambient of +40 °C and rated output current.

PROFIBUS DP Interface (6HF3 Option Board)
The 6HF3 board implements the PROFIBUS DP slave protocol stack in dedicated ASIC hardware, offloading fieldbus communication processing from the main control unit DSP. This architecture ensures that PROFIBUS telegram processing does not introduce jitter into the vector control execution cycle. The DP slave supports both cyclic (PKW + PZD) and acyclic (DPV1) services, enabling parameter read/write access from the PLC without interrupting the process data exchange. The GSD file for the 6HF3 is available from Siemens and defines the supported I/O data configurations for STEP 7 / TIA Portal hardware configuration.

Thermal Protection & Derating Logic
An NTC thermistor mounted on the IGBT heat sink provides continuous temperature feedback to the control unit. The firmware implements a two-stage thermal response: at a first threshold (typically 80–85 °C heat sink temperature), the control unit reduces the PWM switching frequency to lower switching losses; at a second threshold, output current is derated linearly. A third hardware threshold triggers an immediate fault trip (F0004 or equivalent) to protect the IGBT module from thermal runaway. This graduated response maximizes drive availability under elevated ambient conditions while maintaining hardware integrity.

System Integration Benefits

• Shared DC Bus Energy Recovery: In multi-drive lineups, regenerative energy from braking axes is absorbed by motoring axes on the same DC bus, reducing net energy consumption from the AC supply by up to 30% in coordinated drive systems with frequent acceleration/deceleration cycles.
• Deterministic PROFIBUS DP Communication: The 6HF3 board supports isochronous PROFIBUS DP mode (DP-V2), enabling cycle-synchronous setpoint transfer with jitter below 1 µs — a prerequisite for multi-axis electronic gearing and cam synchronization applications.
• Seamless S7 PLC Integration: Native PROFIBUS DP eliminates protocol conversion layers between the drive and Siemens S7-300/400/1500 PLCs. Drive parameter access via DPV1 acyclic services allows online commissioning and diagnostics from STEP 7 or TIA Portal without additional engineering tools.
• High-Dynamic Vector Control: Closed-loop speed control bandwidth exceeds 50 Hz with encoder feedback, enabling torque response times below 5 ms — sufficient for tension control in paper and film winding applications where web break prevention depends on rapid torque correction.
• Modular Scalability: The Compact Plus DC bus bar system allows additional inverter modules to be added to an existing lineup without rewiring the AC supply or modifying the infeed module, provided the infeed rating accommodates the additional load.
• Diagnostic Transparency: The MASTERDRIVES firmware maintains a fault history buffer with timestamped fault codes, operating hours at fault, and DC bus voltage / output current values at the moment of fault. This data is accessible via PROFIBUS DPV1 or the operator panel, enabling root-cause analysis without oscilloscope instrumentation.
• Motor Compatibility: The vector control algorithm supports both asynchronous induction motors and permanent magnet synchronous motors (with appropriate CU firmware), providing flexibility for system upgrades without replacing the inverter hardware.
• Standardized Spare Parts Inventory: The MASTERDRIVES Compact Plus platform has an extensive global installed base. Standardizing on this platform across multiple machine types within a facility reduces spare parts inventory cost and simplifies maintenance technician training.

Quality Assurance & Global Logistics

Every 6SE7027-2TD84-6HF3 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Serial number and date-code traceability is confirmed against Siemens OEM manufacturing records. Visual inspection covers label integrity, connector condition, IGBT module seating, and fan assembly. Where test equipment is available, a power-on functional check verifies DC bus pre-charge behavior and PROFIBUS DP slave initialization. Units are packed in ESD-safe anti-static bags with foam cushioning inside double-wall corrugated cartons; a humidity indicator card is included to confirm packaging integrity upon receipt.

Logistics from Xiamen port to major global destinations: DHL Express (3–5 business days to EU/US), FedEx International Priority (3–5 business days), sea freight LCL/FCL for bulk orders (15–25 days to European ports, 18–30 days to US East Coast). Export documentation includes commercial invoice, packing list, and certificate of origin. HS Code 8504.40 applies to this product category for customs classification. All shipments are fully insured. For time-critical requirements, air freight with same-day dispatch is available for orders confirmed before 14:00 CST.

A 12-month warranty from the date of shipment covers manufacturing defects and verified OEM component failures. Warranty claims are processed via email with photographic evidence; replacement or credit is issued within 5 business days of claim approval. Technical support for commissioning, parameter configuration, and fault diagnosis is available via email and WhatsApp at no additional charge.
