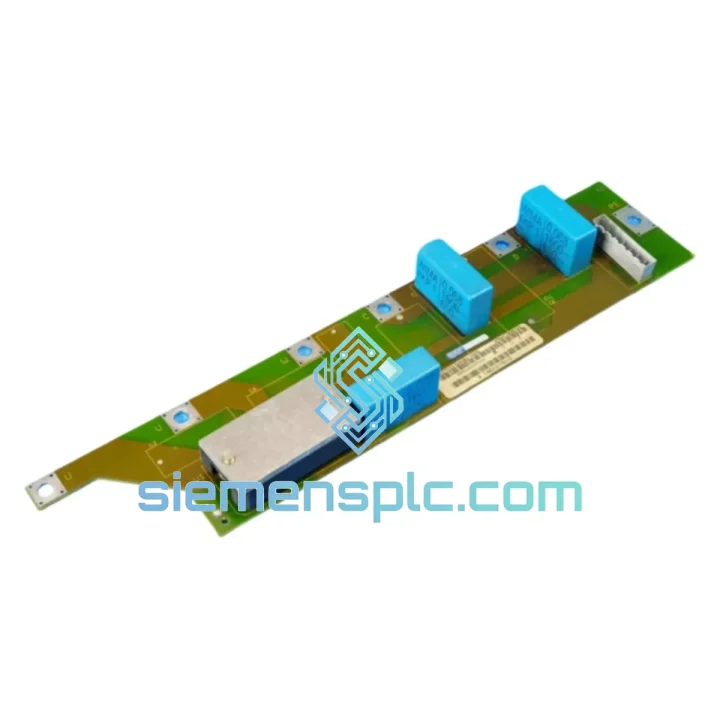

Siemens 6SE7033-5HH84-1HH0 Power Supply Module

6SE7033-5HH84-1HH0 — Every Hour of Downtime Costs You Money. We Ship Today.

Your MASTERDRIVES rectifier just tripped. The line is cold. Maintenance is on the phone. You’ve already pulled the 6SE7033-5HH84-1HH0 and confirmed it’s the culprit — blown input bridge, DC bus voltage collapsed, F-fault locked out the entire drive train. You don’t need a sales pitch. You need the part on a plane tonight.

We stock the Siemens 6SE7033-5HH84-1HH0 Power Supply / Rectifier Module in Xiamen, China. DHL Express cut-off is 16:00 CST. Order before that and your unit is in transit before your shift ends.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures on the 6SE7033-5HH84-1HH0:

• F-fault F002 / F003 (DC bus undervoltage): Rectifier bridge has failed or pre-charge circuit is open. Measure DC bus — if below 500 V with mains present, the rectifier module is the prime suspect. Swap before condemning the inverter section.
• Overtemperature fault (F011): Fan failure or blocked airflow. Before ordering a replacement, verify the internal fan spins freely and the heatsink fins are clear. If the fan is seized, the IGBT junction temperature will spike within 90 seconds at full load.
• Ground fault / earth leakage trip: Check the DC bus capacitors for bulging or electrolyte leakage. A shorted capacitor bank will pull the rectifier into continuous overcurrent — the module will not survive repeated resets.
• No DC bus voltage at all, no fault code: Check the 24 V auxiliary supply to the control board. A dead CU board will prevent the rectifier from enabling its gate signals even if the power section is intact.

Step-by-step replacement procedure:

1. Isolate and lock out. Open the main circuit breaker and apply LOTO. Verify DC bus voltage is below 50 V with a calibrated meter — capacitors hold charge for up to 5 minutes after mains removal.
2. Document the CU board parameter set. Upload P-parameters via STARTER or DriveMonitor before disconnecting anything. A parameter backup takes 3 minutes and saves hours of recommissioning.
3. Label all bus bar connections. The DC+ and DC- bus bars on the 6SE70 chassis are not always color-coded. Photograph before removal.
4. Check DIP switch / address settings. The 6SE7033-5HH84-1HH0 does not use a rotary address switch, but verify the CU board’s PROFIBUS node address (P918) matches your network configuration before powering up the replacement.
5. Firmware version check. If your replacement unit carries a different firmware revision on the CU board, re-download your parameter backup immediately after first power-on. Mismatched firmware can silently alter default parameter values.
6. Pre-charge verification. On first power-up, monitor DC bus voltage rise on the drive’s display. It should ramp from 0 to ~540 V (for 400 V mains) within 3–5 seconds via the pre-charge resistor. An immediate jump to full voltage indicates the pre-charge bypass contactor is welded — stop and investigate before enabling the inverter.
7. Run a no-load test. Enable the drive with the motor disconnected. Confirm DC bus stability and no fault codes before reconnecting the load.

Reliability in Harsh Conditions

The SIMOVERT MASTERDRIVES platform was engineered for environments that would destroy consumer-grade electronics. The 6SE7033-5HH84-1HH0 is qualified to withstand:

• Mechanical vibration: IEC 60068-2-6 sinusoidal vibration testing — 10–58 Hz at 0.075 mm displacement, 58–500 Hz at 1 g. This covers the resonance frequencies typical of steel mill floors, compressor skids, and marine deck installations.
• Thermal cycling: Repeated excursions from cold start (0 °C) to full-load operating temperature stress the solder joints and bus bar connections. Siemens specifies the power section for a minimum of 100,000 thermal cycles at rated current.
• Humidity and condensation: The PCB conformal coating on the control board provides protection against humidity up to 95% RH. However, direct condensation from rapid temperature changes in unheated enclosures will eventually breach this protection — always specify anti-condensation heaters in outdoor or unheated cabinet installations.
• Conducted EMI: The integrated EMC filter suppresses conducted emissions to EN 61800-3 Category C2, protecting adjacent instrumentation on shared power rails in process plants.
• Altitude derating: Rated performance is guaranteed to 1,000 m ASL. Above that, reduce output current by 1% per 100 m to maintain thermal margins.

Every unit we ship from Xiamen is stored in a climate-controlled warehouse at 18–25 °C with humidity control. Long-term storage in uncontrolled environments degrades electrolytic capacitors — we rotate stock to ensure you receive a unit with full remaining service life.

Global Express Logistics

Downtime doesn’t respect time zones. Our Xiamen dispatch team operates on a 6-day week specifically to serve emergency procurement requests from Europe, the Middle East, Southeast Asia, and the Americas.

• DHL Express Worldwide: Xiamen (XMN) to Frankfurt (FRA) — typically 2 business days. Xiamen to Dubai (DXB) — 2–3 business days. Xiamen to Los Angeles (LAX) — 3–4 business days.
• FedEx International Priority: Available as an alternative carrier for destinations where DHL service is restricted or delayed. We select the fastest available option at time of booking.
• Cut-off time: Orders confirmed with payment before 16:00 CST (UTC+8) are dispatched same day. Orders after cut-off ship next business morning.
• Packaging: The 6SE7033-5HH84-1HH0 ships in a double-walled export carton with 50 mm polyethylene foam on all six faces and an anti-static inner bag. The module will survive the handling that express couriers routinely inflict on industrial freight.
• Documentation: Commercial invoice, packing list, Certificate of Origin (China), and HS code declaration (8537.10) are included with every shipment. EU customers receive an EUR.1 movement certificate on request for preferential duty treatment where applicable.
• Tracking: AWB number is emailed within 2 hours of dispatch. We monitor the shipment and proactively contact you if customs clearance delays are detected.
