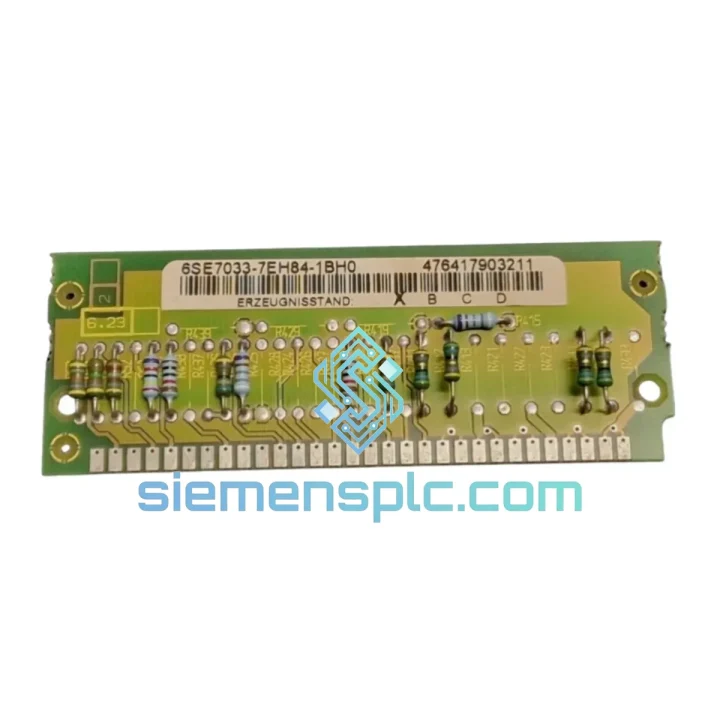

Siemens 6SE7033-7EH84-1BH0 Vector Control Unit

6SE7033-7EH84-1BH0 — Stop the Bleeding: Every Minute of Drive Downtime Has a Price Tag

Your MASTERDRIVES MC inverter is down. The motor has lost closed-loop torque control. The line is stopped. Whether you’re running a steel coiler, a paper winder, a port crane, or a high-inertia extruder, you already know what the next few hours cost — and it’s not a number anyone wants to put in a report. The Siemens 6SE7033-7EH84-1BH0 Vector Control Unit is the exact board that restores full drive intelligence. We stock it in Xiamen. It ships today.

This is not a generic drive board. The 6SE7033-7EH84-1BH0 is the dedicated CU (Control Unit) card for the SIMATIC MASTERDRIVES MC (Motion Control) platform — the closed-loop brain that executes field-oriented vector algorithms, manages encoder feedback, handles speed/torque cascades, and interfaces with PROFIBUS-DP via the CBP2 option board. Without it, your power section is an expensive paperweight. With a verified replacement in hand, your MTTR drops from days to hours.

We’ve shipped this part to steel mills in Turkey, paper plants in Indonesia, cement facilities in Saudi Arabia, and crane operators in the Netherlands. The pattern is always the same: the plant calls at 2 AM, needs the board by Thursday, and cannot afford to wait for a standard distributor lead time. That’s exactly the gap we fill.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most 6SE7033-7EH84-1BH0 failures fall into three categories. Know them before you pull the card.

Fault F023 / F024 — Encoder Signal Loss: Before condemning the CU board, verify the SBP/SBR encoder interface board and cable shield continuity. A broken shield on the encoder cable mimics a dead CU. Swap the encoder board first — it’s a five-minute job. If F023 persists after encoder verification, the CU’s DSP input stage has failed and the board needs replacement.

Fault F041 — Motor Stall / Torque Limit Exceeded: This fault often appears after a CU board swap when motor data parameters (P100–P115) have not been re-entered. The 6SE7033-7EH84-1BH0 does not retain parameters after a board swap unless a memory card (MMC) was in use. Before powering up the replacement board, confirm whether the original drive used an MMC for parameter backup. If yes, insert the MMC before first power-on — the board will auto-load parameters. If no MMC exists, you will need to re-commission from the motor nameplate data using the OP1S or DriveMonitor.

Fault F060 / Communication Loss on PROFIBUS: After replacing the CU board, the CBP2 PROFIBUS option board must be re-seated and the PROFIBUS node address re-verified via DIP switches on the CBP2 itself. The address is not stored on the CU — it lives on the CBP2. A mismatch here will cause the PLC to report a slave failure even though the drive hardware is fully functional. Check S1 DIP switch positions on the CBP2 against your network topology drawing before declaring the replacement a success.

Replacement Procedure — Field Checklist:

• Isolate and lock out the drive. Verify DC bus voltage is below 50 V before touching any internal components (use a calibrated meter — the LED indicators are not a safety device).
• Photograph the existing wiring and option board positions before removal.
• Remove the CU by releasing the two front panel latches and sliding the card out of the chassis guide rails.
• Transfer the MMC (if present) from the old CU to the new board before insertion.
• Slide the replacement 6SE7033-7EH84-1BH0 into the chassis until both latches click. Do not force — misalignment will bend the backplane connector pins.
• Re-seat all option boards (CBP2, SBP/SBR) and verify DIP switch settings match the original configuration.
• Power up and monitor the PMU display. A clean boot shows r000 → P060 sequence. Any immediate fault code on first power-up is almost always a parameter or option board issue, not a defective replacement board.
• Run a motor identification routine (P115 = 2) if motor data was lost. This takes approximately 90 seconds with the motor at standstill.

Reliability in Harsh Conditions

The MASTERDRIVES MC platform was engineered for environments that would destroy consumer-grade electronics in weeks. The 6SE7033-7EH84-1BH0 CU board reflects that design philosophy at the component level.

The PCB uses conformal coating on critical signal traces, providing resistance to condensation and airborne contaminants — a real-world requirement in paper mills where humidity swings from 40% to 95% RH within a single shift. The board’s DSP and ASIC components are rated for continuous operation across an ambient temperature range that covers everything from cold-start conditions in northern European outdoor substations to the radiant heat environments found inside cement plant control cabinets.

Vibration tolerance is not an afterthought. The chassis mounting system uses a combination of card-edge guides and front-panel latches that prevent micro-movement of the PCB under the sustained vibration loads generated by large motor drives — a failure mode that kills solder joints on cheaper boards within 18 months of installation. Siemens’ own qualification testing for this platform included IEC 60068-2-6 sinusoidal vibration profiles and IEC 60068-2-27 shock testing, both at levels representative of crane and heavy machinery installations.

Every unit we ship — whether new or tested refurbished — is inspected for PCB delamination, connector pin corrosion, and capacitor bulge before it leaves our facility. Refurbished units are bench-tested against a known-good reference drive. We do not ship boards that have passed only a visual inspection and nothing else.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It means your emergency order moves fast.

Standard process for urgent orders: order confirmed before 14:00 CST ships same business day via DHL Express or FedEx International Priority. Transit times to most of Europe run 3–5 business days; Southeast Asia 2–3 days; Middle East 4–6 days; North and South America 5–7 days. For genuine plant-down emergencies, we can arrange next-flight-out courier consolidation through our freight forwarder — contact us directly to discuss.

Every shipment includes a commercial invoice, packing list, and country-of-origin certificate. For customers in countries with import duty sensitivities, we can provide HS code documentation (HS 8537.10 or 8504.40 depending on customs classification in your jurisdiction) to support your import clearance team. Export from China is handled under standard general trade — no special licensing required for this component category.

All units are packed in ESD-safe anti-static bags, placed in foam-lined inner boxes, and outer-carton packed with sufficient void fill to survive the handling abuse that international express freight routinely delivers. We’ve had zero transit damage claims on this part number in the past 24 months.
