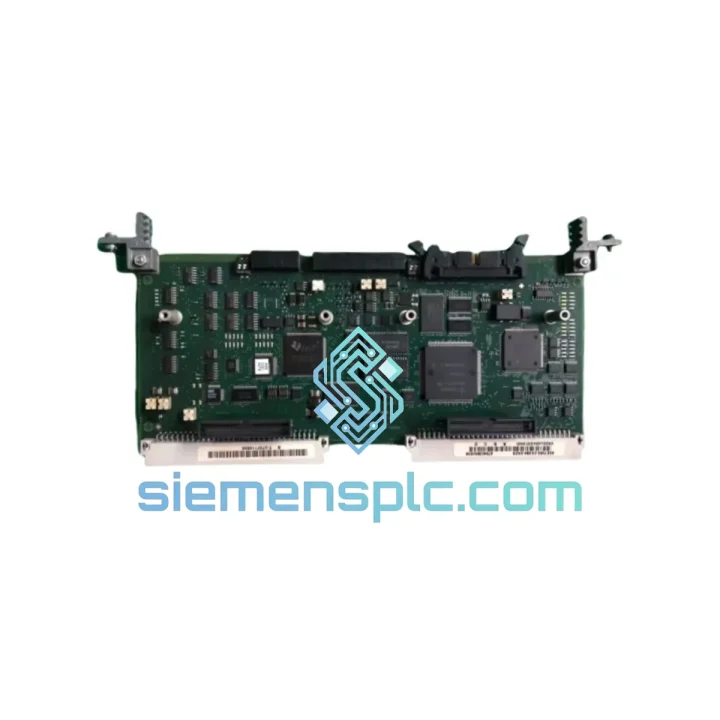

Siemens 6SE7034-5HK84-1JC0 IGBT Gate Drive Board

6SE7034-5HK84-1JC0 IGBT Gate Drive Board — Stop the Bleeding. Ship Today.

Your MASTERDRIVES chassis just tripped and won’t come back online. The IGBT gate drive board is the first suspect — and every hour it stays down is money walking out the door. The Siemens 6SE7034-5HK84-1JC0 is the OEM trigger board that sits between your CU control unit and the IGBT power stack, handling gate-pulse amplification, desaturation detection, and short-circuit protection. When it fails, the drive either trips instantly on enable or throws asymmetric phase faults with no load attached. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the IGD board is the culprit before you order:

Before pulling the board, rule out the IGBT module itself. Use a gate-drive tester or a known-good CU board to inject a PWM signal and measure gate-emitter voltage on each IGBT leg. If the module responds correctly but the drive still faults, the 1JC0 board is your problem. Common fault signatures that point directly at the IGD board:

• F002 / F005 — Overcurrent or I²t overload tripping immediately at enable with no motor load. The IGD board’s desaturation circuit is firing false positives due to a degraded optocoupler or failed gate resistor.
• Asymmetric phase output — One phase reads significantly lower AC voltage under load. One gate channel is not firing at full amplitude. Scope the gate-emitter waveform on each IGBT pair to isolate the dead channel.
• Drive powers up, fans spin, but enable command produces no output — CU is healthy, DC bus is charged, but no PWM is reaching the IGBT stack. The ribbon interface between CU and IGD board is the first check; if continuity is good, the board itself has failed.
• Intermittent F003 / ground fault — Can be caused by a leaking gate drive supply on the IGD board coupling noise into the PE measurement circuit. Swap the board before condemning the motor or cable.

Replacement procedure — field-tested sequence:

1. De-energize the drive and verify DC bus voltage is below 50 V using a calibrated meter. Do not rely on the drive’s own display — the IGD board may be the reason it’s not reading correctly.
2. Photograph all ribbon cable and fiber-optic connections before disconnecting. The 6SE7034-5HK84 chassis has multiple connectors on the IGD board and incorrect re-seating is the most common cause of post-replacement faults.
3. Remove the four M4 mounting screws securing the 1JC0 board to the chassis rail. The board slides out toward the front of the cabinet — do not force it; the IGBT module connector is a friction-fit that releases with gentle rocking.
4. Inspect the IGBT module gate pins for corrosion or mechanical damage before installing the new board. A damaged gate pin will destroy a new IGD board within minutes of first enable.
5. Seat the new 6SE7034-5HK84-1JC0 board, reconnect all ribbons and fiber-optic links in the photographed sequence, and torque the M4 screws to 2.5 Nm.
6. No parameter re-entry required. The MASTERDRIVES CU reads the board’s hardware ID on power-up. If the drive requests a board initialization, navigate to P060 (commissioning menu) and confirm the hardware configuration — this is normal on first boot with a new board and takes under 2 minutes.
7. Perform a no-load test run at 5 Hz before ramping to full speed. Monitor DC bus current and check for any asymmetry in the output current display (r006). All three phases should be within 5% of each other at steady state.

Configuration notes specific to this board: The 1JC0 suffix indicates this board does not carry a separate address DIP switch — addressing is handled by the CU board’s slot assignment. If you are replacing a board in a multi-drive cabinet with a shared CU, verify the slot number in P918 matches the physical position of this drive chassis before enabling. Firmware mismatch between the CU and a replacement IGD board is rare but possible if the CU has been updated — check the CU firmware version in r069 and cross-reference with Siemens compatibility matrix for the 6SE70 series.

Reliability in Harsh Conditions

The 6SE7034-5HK84-1JC0 was designed for the kind of environments that destroy lesser components. Siemens engineered the MASTERDRIVES H-frame chassis for continuous duty in steel mills, cement plants, and marine installations — places where ambient temperatures routinely hit 45 °C, cabinet vibration is constant, and humidity swings are severe. The IGD board reflects that design philosophy:

• Vibration resistance: The PCB uses through-hole construction for all high-stress connectors and power components, not surface-mount. In high-vibration environments — conveyor drives, crusher motors, ship thrusters — solder joint fatigue is the primary failure mode on cheaper boards. The 1JC0 board’s construction minimizes this risk.
• Thermal cycling tolerance: Industrial-grade capacitors and gate resistors rated for wide temperature cycling. The board is designed to survive the daily thermal cycle of a drive that starts cold in the morning and runs at full load for 16 hours.
• Humidity and contamination: Conformal coating on the PCB provides protection against condensation and airborne particulates common in cement, mining, and food processing environments. Inspect the coating on your failed board — if it shows cracking or delamination, consider adding a cabinet heater to prevent recurrence.
• EMI immunity: Galvanic isolation between the control and power stages means the board is inherently resistant to the high dV/dt switching transients generated by the IGBT stack it drives. This isolation is what makes the 1JC0 board a long-life component in properly maintained drives.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected export hubs in Asia. When you place an order before 14:00 CST, the board ships the same business day. Here is exactly what happens after you confirm:

1. Same-day packing: The board is packed in an anti-static bag, foam-cushioned, and double-boxed in a reinforced export carton. Fragile and ESD-sensitive labels are applied. Gross weight is approximately 1.2 kg.
2. Carrier selection: DHL Express or FedEx International Priority, selected based on your destination country’s current transit performance. We do not use economy services for industrial spare parts — downtime cost exceeds any freight savings.
3. Tracking within 4 hours: AWB number sent to your email within 4 hours of dispatch. You can track in real time via the carrier’s portal.
4. Transit times from Xiamen: Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 3–4 days | Australia 3–4 days | South America 5–7 days.
5. Customs documentation: Commercial invoice, packing list, and HS code 8537.10 pre-filled for smooth customs clearance. We can provide a certificate of origin on request for duty preference programs.
6. Delivery confirmation: Carrier provides proof of delivery with signature. If your site requires a specific delivery window or consignee instruction, advise us at order confirmation.
