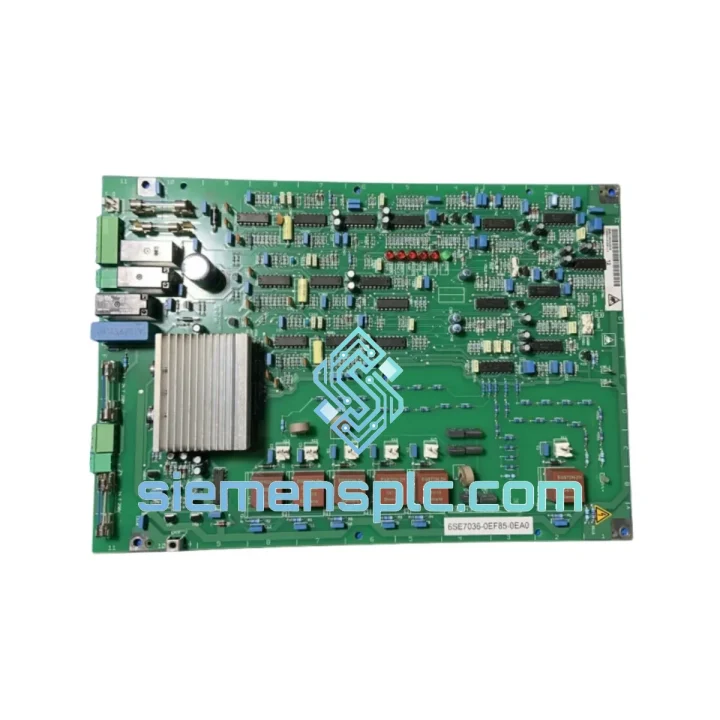

Siemens 6SE7036-0EF85-0EA0 Control Pre-Charging Module

6SE7036-0EF85-0EA0 Down? Every Minute of Downtime Costs You Money — Ship Today

A tripped MASTERDRIVES pre-charging module doesn’t wait for business hours. Neither do we. The Siemens 6SE7036-0EF85-0EA0 Control and Pre-Charging Module is on the shelf in Xiamen right now, packed and ready to move via DHL or FedEx the same day your order clears. Whether you’re running a steel mill, a paper line, or a heavy-duty conveyor system, a failed pre-charging stage means your entire DC bus is dead — and so is production. We’ve seen plants lose $15,000 per hour waiting on parts that were stuck in a distributor’s backorder queue. That’s not happening on our watch.

This module handles two critical jobs simultaneously: it governs the soft pre-charge of the DC link capacitors at startup to prevent inrush current damage, and it provides the core control interface between the drive’s power section and the CUVC/CUMC control unit. When it fails, the drive either refuses to start or trips immediately on F002/F005 fault codes. Swapping it out is a defined procedure — but only if you have the right part in hand. We keep stock precisely for this scenario.

📧 URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the module, confirm the fault. On a MASTERDRIVES VC/MC drive, a failed pre-charging module typically surfaces as one of the following:

• F002 (DC link undervoltage): Pre-charge relay never closes; DC bus never reaches operating voltage. The module’s internal relay driver circuit is the first suspect.
• F005 (DC link overvoltage at startup): Pre-charge resistor bypass is firing too early or the timing circuit has drifted. Replace the module, not just the resistor.
• A078 / F015 (hardware fault on control board): If the CUVC reports a hardware fault immediately after power-on, the control interface section of this module may have a shorted gate driver or a failed optocoupler on the pre-charge signal line.
• Drive powers up but trips on first run command: Check that the pre-charge complete signal (X9 connector) is reaching the CUVC. A corroded or damaged connector on the module is a common field failure point.

Replacement procedure (field-verified):

1. Isolate and lock out the drive cabinet. Verify DC bus voltage is below 50 V with a calibrated meter — capacitors hold charge for several minutes after power-off.
2. Document the existing DIP switch positions on the module before removal. The address switches (S1/S2 on some variants) must be replicated exactly on the replacement unit.
3. Disconnect the X9 (pre-charge signal), X1 (DC bus sense), and the fiber optic links if present. Label each connector.
4. Slide the module out of the drive frame. Note the guide rail orientation — the replacement must seat fully before the locking lever engages.
5. On the new 6SE7036-0EF85-0EA0, verify the firmware label matches the drive’s existing control unit firmware generation. MASTERDRIVES VC firmware V3.x and V4.x have different handshake requirements. If in doubt, check the CUVC parameter P060 (firmware version) before ordering.
6. Reconnect all cables, restore DIP switch settings, and power up. The drive should complete pre-charge within 3–5 seconds and release the main contactor. If F002 persists, check the pre-charge resistor value — a failed resistor can mask a module that is actually functional.

Reliability in Harsh Conditions

The 6SE7036-0EF85-0EA0 was engineered for the kind of environments that destroy consumer-grade electronics in weeks. Siemens designed the MASTERDRIVES platform for continuous duty in heavy industry, and this module reflects that standard. The PCB uses conformal coating rated for humidity up to 95% non-condensing, which matters in coastal plants, paper mills, and food processing facilities where moisture ingress is a constant threat. The power components are rated for operating temperatures from -10°C to +55°C ambient, with derating curves published for higher altitudes and elevated cabinet temperatures.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the shock profiles common in steel plant environments where the drive cabinet sits on the same structural steel as a rolling mill. The pre-charge relay inside the module is a sealed unit with a rated mechanical life exceeding 100,000 operations — in a typical industrial cycle, that’s years of daily startups before wear becomes a factor. Every unit we ship has been stored in climate-controlled conditions in ESD-safe packaging to preserve these characteristics from the factory to your cabinet.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL, FedEx, and UPS gateway access. Here’s how a typical urgent order moves:

• Order confirmed before 14:00 CST: Same-day dispatch is standard for in-stock items. You receive a tracking number within 2 hours of shipment.
• DHL Express Worldwide: Transit time to Europe is typically 3–5 business days; North America 4–6 days; Southeast Asia 2–3 days. We use DHL’s industrial parts routing to avoid customs holds at major hubs.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. We select the carrier based on your delivery address to maximize speed.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. HS code 8537.10 is declared. If your plant requires an advance copy of shipping documents for customs pre-clearance, we send them by email the same day as dispatch.
• Bulk orders: For 5+ units or combined parts orders, we can consolidate into a single DHL freight shipment to reduce per-unit cost while maintaining 5–7 day delivery windows to most destinations.

We’ve shipped to Germany, the USA, Brazil, India, South Korea, Australia, and over 40 other countries. If your country has specific import requirements for industrial control modules, contact us before ordering — we’ll confirm compliance before the shipment leaves Xiamen.

Contact Information

📧 Email: [email protected]
📱 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
