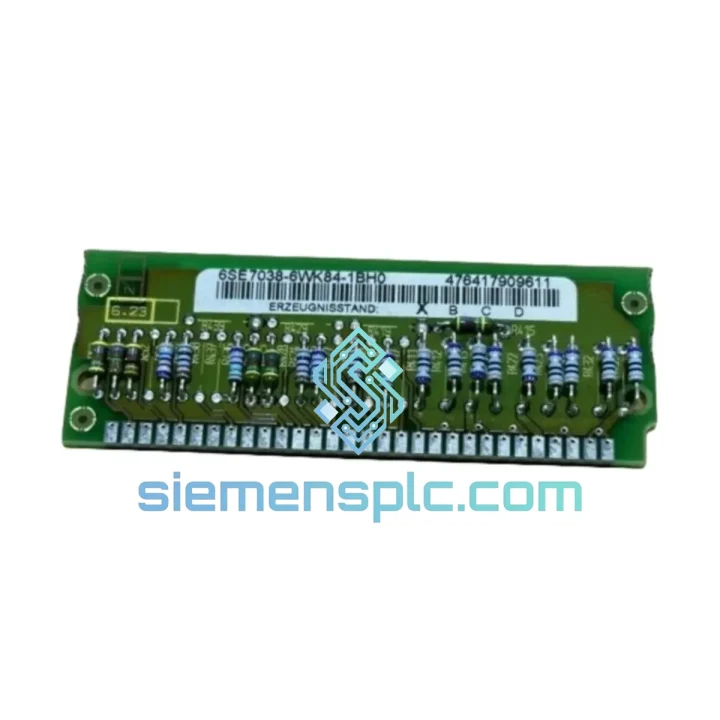

Siemens 6SE7038-6WK84-1BH0 AC Drive

6SE7038-6WK84-1BH0 — Your Line Is Down. We Ship Today.

A 315 kW drive failure doesn’t wait for procurement cycles. Whether it’s a rolling mill tripped at 02:00, a compressor train locked out mid-shift, or a hoist that won’t move product — every minute the 6SE7038-6WK84-1BH0 sits dead is a number on someone’s loss report. We stock this unit in Xiamen. Confirmed before 14:00 CST, it leaves the same day. That’s not a marketing line — it’s the only metric that matters to you right now.

The 6SE7038-6WK84-1BH0 is the high-power inverter section of the Siemens SIMOVERT MASTERDRIVES Vector Control platform, covering the 315–500 kW drive class. It runs true closed-loop field-oriented vector control with encoder feedback via the SMC (Sensor Module Cabinet) interface, or sensorless VC for applications where encoder installation isn’t practical. The modular architecture — separate rectifier, DC bus, and inverter sections — means you can swap this inverter unit without disturbing your upstream rectifier or common DC bus topology. That’s a significant advantage when you’re working in a multi-drive cabinet under time pressure.

PROFIBUS DP communication is handled by the CBP2 option board. USS protocol is available on the base unit without additional hardware. The drive supports all standard MASTERDRIVES VC parameter sets, so if you have a DriveMonitor backup from your failed unit, parameter upload to the replacement takes under 15 minutes — assuming firmware versions align, which we’ll address below.

⚡ URGENT REQUIREMENT?
Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

These are field-derived observations — not a reprint of the operating manual. If you’re standing in front of a faulted cabinet right now, start here.

Fault Code Breakdown — What’s Actually Failing:

• F023 / F024 — DC Bus Over/Undervoltage: Before condemning the inverter, clamp a meter directly on the DC bus bars under load. On a 400 V system, DC link should hold 540–600 V DC. If it’s sagging below 510 V, the rectifier section or pre-charge circuit is the culprit — not this unit. Replacing the inverter won’t fix a rectifier problem.
• F011 — Output Overcurrent / Ground Fault: Megger the motor at 500 V DC before anything else. Insulation below 1 MΩ phase-to-earth means the motor is pulling the drive into fault on every start. Also verify P076 (current limit) hasn’t been corrupted — a power event can reset parameters to factory defaults on older firmware revisions.
• F041 — Speed Controller Monitoring Fault: This is almost always the SMC encoder evaluation board or the encoder cable, not the drive itself. Swap the SMC first — it’s a 10-minute job with no parameter changes required. If F041 clears, you’ve avoided an unnecessary drive replacement.
• F030 — Heatsink Overtemperature: On units over five years old, check fan rotation at startup. The fan should reach full speed within 3 seconds of power-on. A bearing-worn fan running at 60% speed will cause thermal shutdown within 20–30 minutes at full load. Fan replacement is a fraction of the cost of a drive.
• F080 — PROFIBUS Communication Loss: Reseat the CBP2 board — vibration works these loose over time. Then verify the PROFIBUS node address on the CBP2 DIP switches matches your S7 hardware configuration exactly. Factory default is address 3. A one-digit mismatch produces intermittent F080 faults that look like network instability but are purely hardware.

Pre-Commissioning Checklist — Run This Before First Power-Up:

• ✔ Read P060 (firmware version) on the replacement unit via DriveMonitor before connecting. MASTERDRIVES VC firmware is not backward-compatible across major versions. Mismatched firmware between CU and power section causes immediate fault on enable.
• ✔ Re-enter motor nameplate data manually: P095 (rated voltage), P096 (rated current), P097 (rated frequency), P098 (rated speed), P099 (rated power), P100 (power factor). Do not blindly restore a parameter backup if the motor has been rewound or swapped.
• ✔ Execute stationary motor identification: set P115 = 2, enable the drive with motor at standstill. This recalibrates stator resistance and leakage inductance for your specific motor winding — critical for accurate torque control at low speed.
• ✔ Verify DC bus pre-charge relay operation before enabling the inverter output. A failed pre-charge relay causes immediate F024 on the first enable command and can damage the IGBT modules if repeated.
• ✔ Confirm PROFIBUS node address on CBP2 DIP switches matches your GSD/hardware configuration in STEP 7 or TIA Portal. Do this before connecting the PROFIBUS cable.
• ✔ Torque all DC bus bar connections to 25 Nm (M10 bolts). Under-torqued bus connections generate resistive heat under high current and produce intermittent voltage faults that are extremely difficult to diagnose remotely.

Reliability in Harsh Conditions

The SIMOVERT MASTERDRIVES VC platform was engineered for environments where budget drives fail within months. Steel mills with airborne metallic particulate, paper machines running 24/7 in 85% relative humidity, chemical plants with H₂S and SO₂ in the atmosphere, offshore platforms with salt spray and constant mechanical vibration — this is the operating context the 6SE7038-6WK84-1BH0 was designed for, not a climate-controlled equipment room.

At the power semiconductor level, the IGBT modules are mounted on copper-base heatsinks with direct thermal interface — not the aluminum extrusions common in lower-cost drives. Copper’s superior thermal conductivity reduces junction temperature swings during load cycling, which is the primary failure mechanism for IGBTs in variable-load applications like hoists, winders, and compressors. The gate driver boards include active desaturation detection that responds within microseconds to an IGBT failure, preventing cascade damage to adjacent modules in the same phase leg.

Control boards on industrial-grade MASTERDRIVES units carry conformal coating as standard. This coating resists condensation events, corrosive gas exposure, and conductive dust ingress. In practice, this means the board survives the humidity cycling that occurs when a cabinet is opened in a tropical environment, or the sulfur compounds present in mining and wastewater treatment facilities. We’ve inspected units pulled from paper mill service after over a decade of continuous operation where the conformal coating remained intact and the board tested fully functional.

Mechanical vibration resistance is validated to IEC 60068-2-6 (sinusoidal sweep, 10–150 Hz, 1g acceleration). For applications with higher vibration profiles — mobile equipment, marine installations, compressor skids — the cabinet mounting design carries the primary isolation burden, but the drive’s internal construction is engineered to handle the residual mechanical stress transmitted through the structure.

Every unit dispatched from our Xiamen facility undergoes a pre-shipment functional check: reduced-voltage power-on test, insulation resistance verification on all output terminals, visual inspection of bus bar connections, capacitor bank condition assessment, and fan operation confirmation. Units that don’t pass the bench don’t ship. This is not a formality — it’s the difference between a replacement that works on first power-up and one that generates a second emergency call.

Global Express Logistics

Xiamen is one of China’s primary export gateways, with direct DHL Express and FedEx International Priority access from our warehouse. For a unit in this weight and size class, here is the realistic door-to-door timeline from order confirmation:

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. Confirmations received after 14:00 CST ship the following morning. No exceptions, no excuses.
• DHL Express Worldwide transit times: Southeast Asia 2–3 business days. Europe 3–5 business days. North America 4–6 business days. Middle East 3–4 business days. Australia / New Zealand 4–5 business days.
• FedEx International Priority: Available as an alternative carrier for US, Canada, and Mexico destinations where FedEx coverage is stronger than DHL.
• Export documentation: Commercial invoice, packing list, and certificate of origin are issued the same day as dispatch. HS Code 8504.40 (static converters) is applied correctly — we handle customs paperwork to prevent clearance delays at destination.
• Packaging standard: Anti-static foam inner wrap, moisture barrier bag, double-wall export carton rated for the unit weight, with fragile / this-side-up labeling and calibrated shock indicators. The unit arrives in the same condition it left the warehouse.
• Tracking: Airway bill number sent within 2 hours of dispatch via email and WhatsApp. Real-time carrier tracking link included.
• Project and bulk orders: For multi-unit requirements or project procurement, sea freight consolidation from Xiamen port is available with 7–14 day transit to major global ports. Contact us for volume pricing and lead-time commitments.
