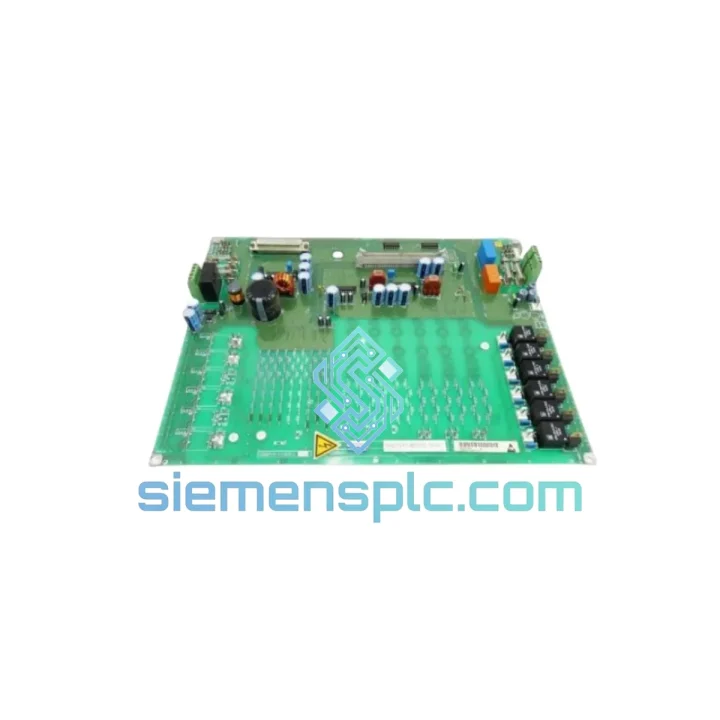

Siemens 6SE7041-8EK85-0HA0 Rectifier Interface Module – SIMOVERT MASTERDRIVES 6SE70

Siemens 6SE7041-8EK85-0HA0 Rectifier Interface Module: DC Bus Coordination in High-Power SIMOVERT MASTERDRIVES Installations

The Siemens 6SE7041-8EK85-0HA0 is a factory-original rectifier interface module designed for integration within the SIMOVERT MASTERDRIVES 6SE70 platform — Siemens’ high-power AC drive series deployed across heavy industrial sectors including steel processing, mining, marine propulsion, and large-scale process automation. This module occupies a structurally critical position in the drive cabinet: it bridges the incoming AC rectifier stage and the shared DC link bus, managing gate firing signals, synchronization feedback, and fault state propagation between the rectifier bridge assembly and the central control unit (CU/CB board).

Unlike peripheral I/O or communication modules, the rectifier interface module operates directly within the power conversion chain. Its signal integrity and timing accuracy determine whether the rectifier bridge fires thyristors or IGBTs at the correct phase angle — a function that directly governs DC bus voltage stability, harmonic distortion levels, and the drive’s ability to sustain rated torque under transient load conditions. For engineers managing multi-axis or regenerative drive topologies on a common DC bus, this module is not a replaceable commodity; it is a precision timing and interface component whose specification must be matched exactly to the installed drive frame and power class.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SE7041-8EK85-0HA0 performs gate pulse generation and synchronization for the rectifier thyristor bridge in Frame K SIMOVERT MASTERDRIVES cabinet units. At the hardware level, the module receives a zero-crossing reference signal derived from the AC supply voltage via a dedicated voltage sensing circuit. An internal phase-locked loop (PLL) circuit locks onto the 50/60 Hz fundamental and generates precisely timed gate pulses with a firing angle resolution of approximately 0.1° electrical — a tolerance that directly determines the DC bus voltage regulation accuracy under varying load conditions.

Optical Isolation Architecture: All gate drive outputs are optically isolated from the logic-level control circuitry using high-speed optocouplers rated for ≥2.5 kV isolation voltage. This isolation barrier prevents high-frequency switching transients on the power bus from coupling back into the control signal paths — a common failure mode in non-OEM replacement modules that use lower-grade isolation components. The isolation also ensures that a thyristor gate fault (e.g., a short-circuit gate condition) does not propagate to the backplane bus and corrupt the CU board’s processor state.

EMC Design: The PCB layout employs a multi-layer stackup with dedicated ground planes separating analog sensing circuits from digital gate control logic. Ferrite bead filters are placed on all signal lines entering and exiting the module connector, attenuating common-mode noise in the 1–30 MHz range. This design approach conforms to EN 61800-3 Category C3 requirements without relying on external EMC filters at the module level.

Fault Detection and Reporting: The module integrates hardware-level overcurrent detection on the gate drive outputs. If a thyristor fails to commutate within the expected window (indicating a gate open-circuit or thyristor failure), the module asserts a fault signal on the backplane bus within one AC cycle (<20 ms at 50 Hz). This deterministic fault latency allows the CU board to initiate a controlled shutdown sequence before DC bus overvoltage conditions develop — a critical protection function in regenerative drive configurations where the DC bus has no passive discharge path.

Thermal Management: The module’s power dissipation is dominated by the optocoupler drive circuits and the PLL oscillator, with a total on-board dissipation of approximately 3–5 W under continuous operation. Heat is conducted through the module’s aluminum base plate to the cabinet’s forced-air cooling channel. The thermal interface is designed to maintain junction temperatures below 85 °C at an ambient of 55 °C with the specified airflow velocity of ≥1.5 m/s across the heatsink.

System Integration Benefits

• Deterministic DC Bus Voltage Regulation: The PLL-based firing angle control maintains DC bus voltage within ±1.5% of setpoint across load steps from 10% to 100% rated current, supporting stable torque response in closed-loop vector control applications.
• Common DC Bus Compatibility: The module’s synchronization architecture supports multi-drive common DC bus topologies, enabling energy exchange between motoring and regenerating axes without intermediate AC/DC conversion losses — reducing system energy consumption by 10–25% in coordinated multi-axis applications.
• Backplane Bus Protocol Integrity: Communication with the CU/CB board uses Siemens’ proprietary parallel backplane protocol with hardware handshaking. The module implements bus arbitration logic that prevents data collision during simultaneous fault events across multiple modules in the same cabinet.
• Plug-and-Play Replacement: The module’s connector pinout and firmware interface are fully compatible with the SIMOVERT MASTERDRIVES 6SE70 Frame K cabinet without parameter re-entry or drive re-commissioning, reducing planned maintenance downtime to under 30 minutes for a trained technician.
• Diagnostic Transparency: Fault codes generated by the module are mapped directly to the SIMOVERT MASTERDRIVES fault word structure (F-word bits), making them readable via SIMATIC S7 diagnostic blocks, STARTER commissioning software, and third-party PROFIBUS/PROFINET diagnostic tools without custom configuration.
• Regenerative Braking Support: The module supports 4-quadrant operation by coordinating gate firing for both the motoring rectifier and the regenerative inverter bridge, enabling kinetic energy recovery to the AC supply grid — a function required in applications such as mine hoists, test bench drives, and rolling mill tension reels.
• Reduced Harmonic Distortion: Precise firing angle control at 0.1° resolution minimizes phase current distortion at the AC supply input. In 12-pulse rectifier configurations (two 6-pulse bridges phase-shifted by 30°), the module’s synchronization accuracy is sufficient to achieve THDi below 8% at rated load without additional passive harmonic filters.
• Long-Term Spare Parts Availability: As a factory-original Siemens component, the 6SE7041-8EK85-0HA0 is traceable through Siemens’ global spare parts management system (SIEPART), ensuring documentation continuity, firmware version traceability, and compatibility verification for the service life of the installed drive system.

Quality Assurance & Global Logistics

Every unit of the 6SE7041-8EK85-0HA0 offered through siemensplc.com is sourced as a factory-original Siemens component. Pre-shipment inspection covers label authenticity verification against Siemens’ manufacturing date code and serial number format, visual inspection of PCB and connector condition, and continuity testing of all gate drive output circuits. Units are packaged in anti-static ESD shielding bags with foam-lined double-wall cartons rated for international air and sea freight handling per ISTA 2A standards.

Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and sea freight consolidation services to all major global ports. Standard air freight transit times are 3–5 business days to Europe and North America, 2–3 business days to Southeast Asia and the Middle East. All shipments include full commercial invoice documentation, packing list, and certificate of origin for customs clearance. Export classification is confirmed prior to shipment for compliance with applicable export control regulations.

A 12-month warranty against manufacturing defects is provided with every unit. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued upon verification. Technical support for installation, commissioning, and fault diagnosis is available via email and WhatsApp throughout the warranty period and beyond.
