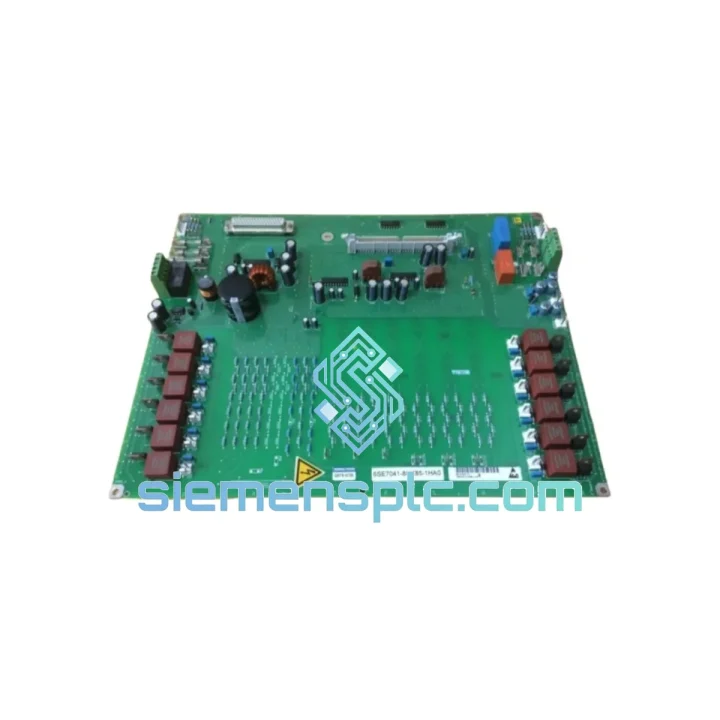

Siemens 6SE7041-8HK85-1HA0 C98043-A1685-L43 Power Supply Module

6SE7041-8HK85-1HA0 C98043-A1685-L43 — Stop the Bleed: Every Hour of MASTERDRIVES Downtime Costs You More Than This Module

Your SIMOVERT MASTERDRIVES drive is down. The internal PSU board — C98043-A1685-L43 — has failed, and the entire Frame HK drive unit is dead. No gate pulses, no control voltage, no motor. The line is stopped. You’ve already called your local distributor and heard the words no plant engineer wants: “6–10 weeks lead time.” That’s not acceptable when a rolling mill, a paper machine, or a compressor train is sitting idle.

We stock the Siemens 6SE7041-8HK85-1HA0 with C98043-A1685-L43 power supply board assembly in Xiamen, China — and we ship globally via DHL Express and FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive shipments within 3–5 business days from order confirmation. This is not a promise made from a catalog. It is a commitment backed by physical inventory and a logistics process built specifically for emergency industrial procurement.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on SIMOVERT MASTERDRIVES, the failure pattern on the C98043-A1685-L43 is consistent. Here is what you need to know before you pull the old board and install the replacement.

Common Fault Signatures Pointing to PSU Board Failure:

• Fault code F002 (DC link undervoltage) appearing at power-up with no load — the drive cannot establish internal supply rails, so it immediately trips on DC bus undervoltage even when the incoming AC supply is healthy.
• Fault code F023 (hardware fault) or F025 (internal supply fault) on MASTERDRIVES VC firmware — these map directly to PSU rail monitoring circuits on the C98043-A1685-L43.
• Drive powers up, fans spin, but the control panel (OP1S or PMU) shows no display or freezes at boot — the +5 V logic rail is absent or unstable.
• IGBT gate driver boards (C98043-A1600 series) reporting no enable signal — gate drivers require the ±15 V rails from this PSU board to operate.
• Burnt smell or visible scorch marks around the primary switching transistor or the input filter capacitors on the C98043-A1685-L43 board.

Pre-Replacement Checks (do not skip):

• Measure DC bus voltage at the drive terminals before condemning the PSU board. A collapsed DC bus (caused by a failed pre-charge circuit or blown DC fuse) will kill the PSU board’s input and mimic a board failure. Confirm DC bus is within spec (typically 510–720 VDC for 400 V class drives) before ordering.
• Inspect the DC bus capacitor bank for bulging or leakage. A shorted capacitor can cause repetitive PSU board failures if not addressed first.
• Check the 24 VDC external supply (X9 terminal block on the control section) — some MASTERDRIVES configurations use an external 24 V to keep the control section alive during DC bus discharge. A failed external supply can be misdiagnosed as a PSU board fault.

Replacement Procedure — Key Steps:

• De-energize the drive and wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 VDC. Verify with a calibrated meter — do not rely on the discharge indicator LED alone on older MASTERDRIVES units.
• The C98043-A1685-L43 board connects to the main control board via a multi-pin ribbon connector and to the gate driver boards via isolated DC/DC converter outputs. Label all connectors before removal — the board orientation is not always obvious after extraction.
• No DIP switch or address configuration is required on the C98043-A1685-L43 itself — it is a passive power supply board with no firmware. However, if you are replacing the complete 6SE7041-8HK85-1HA0 drive module, confirm that the EEPROM parameter set on the control board (C98043-A7001 series) is backed up via DriveMonitor or STARTER before swapping hardware. Parameters are stored on the control board, not the PSU board.
• After installation, perform a power-up with no motor connected first. Verify all internal supply LEDs on the control board illuminate correctly before connecting the motor cable and enabling the drive.
• If the drive was running a specific firmware version, confirm the replacement module’s hardware revision is compatible. Check the rating plate on the C98043-A1685-L43 for the hardware index (e.g., -L43 suffix indicates revision level). Mixing incompatible hardware indices with certain firmware versions can cause intermittent faults.

Reliability in Harsh Conditions

The SIMOVERT MASTERDRIVES platform was engineered for the most punishing industrial environments on the planet — and the C98043-A1685-L43 PSU board reflects that design philosophy. The board’s switching power supply topology is built around a resonant converter design that maintains output regulation across wide input voltage swings, making it tolerant of DC bus fluctuations common in regenerative drive systems and weak grid installations.

The PCB substrate is a multi-layer FR4 construction with conformal coating on production variants, providing resistance to condensation and airborne contaminants found in paper mills, cement plants, and coastal industrial facilities. Electrolytic capacitors on the board are rated for 105°C operation, extending service life in high-ambient-temperature cabinet installations where internal temperatures routinely exceed 50°C during summer operation.

Vibration resistance is achieved through through-hole component mounting on the primary power stage — surface-mount components are limited to the low-power logic section where mass is minimal. This construction approach was a deliberate Siemens engineering decision for the MASTERDRIVES generation, prioritizing mechanical robustness over PCB density. In field experience across mining conveyor drives and offshore thruster applications, this board has demonstrated consistent performance under continuous vibration profiles that would delaminate lesser PCB assemblies.

Units supplied from our Xiamen warehouse undergo incoming inspection including visual examination under magnification, capacitor ESR measurement on the primary filter stage, and a powered bench test verifying all output rails are within ±3% of nominal before dispatch. Refurbished units additionally receive a 72-hour burn-in cycle under load to screen for infant mortality failures before shipment.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes serving Europe, the Americas, Southeast Asia, the Middle East, and Africa. This geographic position is not accidental. It was chosen specifically to minimize transit times for emergency industrial parts shipments.

Standard dispatch process: order confirmed and payment received → warehouse picks and packs within 4 hours during business hours → DHL Express or FedEx International Priority booking confirmed same day → shipment departs Xiamen on the next available flight → tracking number provided to buyer within 2 hours of carrier pickup.

Typical transit times from Xiamen: Southeast Asia (Singapore, Thailand, Malaysia, Vietnam) 2–3 business days; Middle East (UAE, Saudi Arabia, Qatar) 3–4 business days; Europe (Germany, Netherlands, UK, Poland) 4–5 business days; North America (USA, Canada) 4–6 business days; Australia and New Zealand 3–5 business days.

All shipments include commercial invoice, packing list, and certificate of origin. For customers requiring ATA Carnet documentation, CITES exemption letters, or specific customs commodity codes for import clearance, our logistics team prepares these documents as standard — we have processed hundreds of industrial component shipments into regulated markets and understand the documentation requirements that prevent customs holds.

Insurance is included on all shipments above USD 500 declared value. For high-value orders, we offer door-to-door DDP (Delivered Duty Paid) service to selected countries — contact us to confirm availability for your destination.
