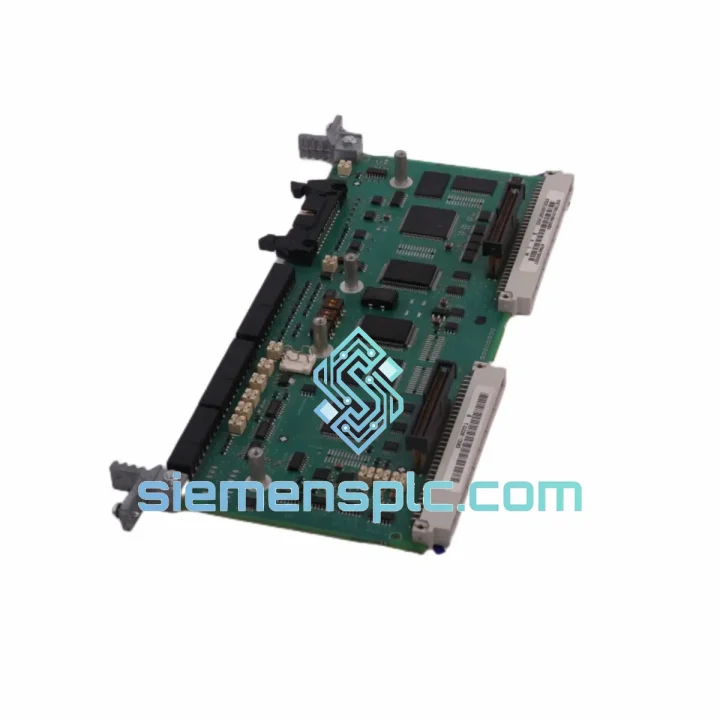

Siemens 6SE7090-0XX84-0AB0 Drive Control Unit – MASTERDRIVES CUVC

Siemens 6SE7090-0XX84-0AB0 CUVC: Closed-Loop Vector Control at the Core of MASTERDRIVES MC/VC

The Siemens 6SE7090-0XX84-0AB0 is the CUVC (Closed-loop Vector Control) plug-in control module engineered for the SIEMENS MASTERDRIVES MC and VC drive series. Within a variable-speed drive system, the control unit is the computational nucleus: it executes the field-oriented control (FOC) algorithm, manages all I/O arbitration, handles encoder feedback processing, and maintains the real-time torque and flux reference loops that define drive performance. The 6SE7090-0XX84-0AB0 performs these functions with deterministic cycle times, making it the correct selection for applications where speed regulation accuracy and torque linearity are non-negotiable engineering requirements.

Unlike frequency-control (V/f) modules, the CUVC implements full rotor flux estimation. The DSP core continuously resolves the d-q axis current decomposition, enabling independent torque and flux control without mechanical encoder dependency in sensorless mode, and with sub-millisecond correction latency when an HTL or TTL incremental encoder is connected via the SBP option board. This architecture is what separates the MASTERDRIVES VC platform from simpler scalar-controlled inverters in demanding process environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture. The CUVC interfaces with the MASTERDRIVES power section via a proprietary parallel backplane bus. This bus carries both the PWM gate-signal references and the DC-link voltage measurement feedback on a single high-speed parallel path, eliminating the latency penalty that would arise from a serial peripheral interface. The result is a gate-command propagation delay measured in microseconds rather than milliseconds — a critical factor in maintaining current-loop stability at switching frequencies of 2.5 kHz to 16 kHz.

Optical Isolation on All I/O Channels. Every digital input channel passes through a dedicated optocoupler stage rated at 2.5 kV isolation voltage. This is not a shared-bus isolation scheme; each channel has its own optocoupler, which means a transient on one input line cannot couple noise into adjacent channels. In environments with frequent contactor switching or proximity to large motor cables, this per-channel isolation architecture measurably reduces nuisance trip events caused by common-mode interference.

Rotor Flux Model and Sensorless Operation. In sensorless mode, the CUVC executes a real-time rotor flux observer based on the motor’s equivalent circuit parameters (stator resistance R1, rotor resistance R2, leakage inductance Lσ, and magnetizing inductance Lh). These parameters are identified automatically during the motor data identification run (P115 = 1). The observer output feeds the d-q current regulators at the full control cycle rate, typically 1.7 ms for the current controller and 3.4 ms for the speed controller. This dual-rate architecture prevents integrator windup in the outer speed loop while maintaining fast inner-loop current response.

EMC Design and Shielding. The PCB layout of the CUVC follows a split-ground plane strategy: the analog signal ground and the digital logic ground are joined at a single star point adjacent to the power supply decoupling capacitors. High-frequency switching noise from the backplane bus is attenuated by ferrite bead filters on all signal lines crossing the analog-digital boundary. The module housing provides additional shielding continuity when seated in the drive chassis, contributing to the system-level IEC 61800-3 Category C2 compliance.

Firmware Architecture and Parameter Management. The CUVC stores all drive parameters in non-volatile flash memory. A parameter set comprises up to four independent parameter records (P0826 selects the active set), enabling on-the-fly switching between pre-configured operating modes — for example, switching between a high-speed and a high-torque profile without stopping the drive. This capability is particularly useful in winder applications where the tension control law changes between acceleration and constant-speed phases.

System Integration Benefits

• Deterministic Current-Loop Execution: The 1.7 ms current controller cycle time is fixed and interrupt-driven, ensuring that torque response to a load step is bounded and predictable — a prerequisite for closed-loop tension and position control applications.
• Dual-Rate Control Hierarchy: Separate execution rates for the current loop (1.7 ms) and speed loop (3.4 ms) allow independent tuning of bandwidth without cross-coupling, reducing commissioning time on multi-axis systems.
• Four-Parameter-Set Switching: Operators can switch between up to four pre-stored parameter records via a digital input or fieldbus command, enabling rapid process changeover without drive restart or re-parameterization.
• Integrated Diagnostic Transparency: The CUVC exposes over 900 display parameters (r-parameters) covering DC-link voltage, output current, flux magnitude, torque setpoint, and fault history — all readable via USS or PROFIBUS without additional hardware, reducing diagnostic instrument dependency.
• PROFIBUS-DP Integration via CBP2: When the CBP2 option board is fitted, the drive appears as a standard PROFIBUS slave with a 2-word PPO (Process Parameter Object) structure, compatible with SIMATIC S7 and third-party PLCs. Cycle time on the fieldbus is decoupled from the drive’s internal control cycle, preventing bus jitter from affecting torque regulation.
• Motor Data Auto-Identification: The P115 identification routine measures stator resistance, rotor resistance, and magnetizing inductance in situ, eliminating the need for manual motor datasheet entry and reducing parameter error risk during commissioning or motor replacement.
• Encoder-Based Speed Accuracy: With an HTL encoder connected via the SBP board, speed measurement resolution reaches ±1 encoder pulse per control cycle. At 1024 PPR and 1500 RPM, this corresponds to a speed measurement granularity of approximately 0.06 RPM — sufficient for precision winder and extruder speed synchronization.
• Fault Memory and Trace Buffer: The CUVC maintains a fault history of the last eight fault events with timestamps and operating-point snapshots (speed, current, voltage at fault moment). This data is accessible via STARTER software or USS read commands, enabling root-cause analysis without on-site instrumentation.

Quality Assurance & Global Logistics

Every 6SE7090-0XX84-0AB0 unit dispatched from siemensplc.com is a genuine Siemens-manufactured module sourced through verified supply channels. Prior to shipment, each unit undergoes a structured inspection protocol: visual examination of the PCB and connector pins for mechanical damage, firmware version verification against the module label, and a functional power-on check confirming correct backplane communication handshake. Units are packed in anti-static ESD bags with desiccant and humidity indicator cards, then placed in double-wall corrugated cartons with foam-in-place cushioning rated for IEC 60068-2-27 shock conditions.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling both air freight and sea freight dispatch. Standard air freight to Europe (Frankfurt, Amsterdam) and North America (Los Angeles, Chicago) achieves transit times of 3–5 business days door-to-door. Express courier options (DHL, FedEx, UPS) are available for urgent requirements. All international shipments include a commercial invoice, packing list, and certificate of origin. Export classification and HS code documentation are prepared in compliance with Chinese customs regulations and destination-country import requirements. A 12-month warranty from the dispatch date covers manufacturing defects; warranty claims are processed with a target replacement dispatch of 5 business days from confirmed fault diagnosis.
