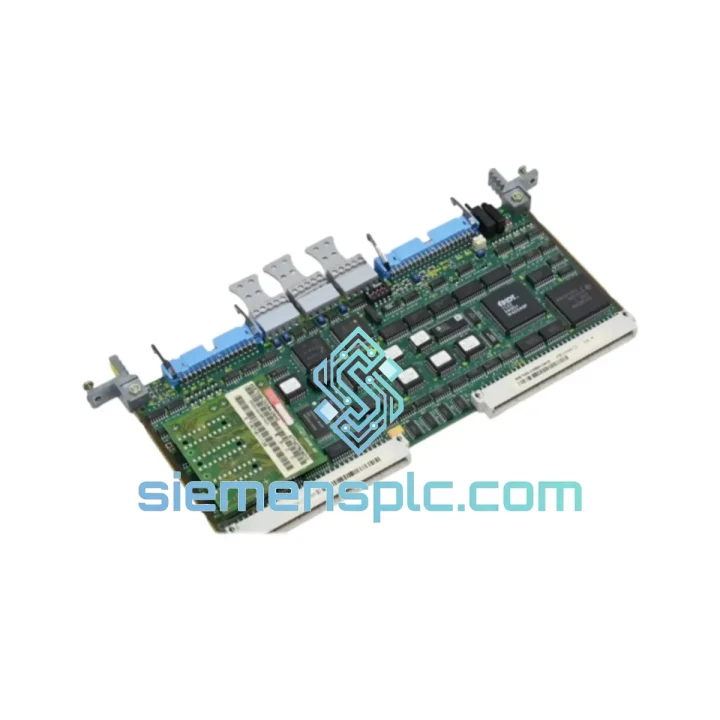

Siemens 6SE7090-0XX84-0AH2 Inverter Drive Module

Siemens 6SE7090-0XX84-0AH2 — Stop the Clock on Your Downtime

Every minute your line sits idle, the losses compound. A failed drive module in a MASTERDRIVES 6SE70 chassis doesn’t just halt one machine — it can cascade across an entire production cell. The 6SE7090-0XX84-0AH2 is the option/interface module for the Siemens MASTERDRIVES MC/VC compact and chassis units, and when it fails, there is no workaround. You need the exact part, tested and ready, on your bench today — not in three weeks.

We stock the 6SE7090-0XX84-0AH2 in Xiamen and ship globally via DHL Express and FedEx Priority. From the moment you confirm your order, our warehouse team pulls, inspects, and packs within hours. For most destinations in Southeast Asia, the Middle East, and Europe, you are looking at 2–4 business days door-to-door. That is the difference between a manageable incident and a catastrophic production loss.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on MASTERDRIVES systems, these are the failure patterns and replacement pitfalls that catch engineers off guard:

Common Fault Codes Linked to a Failing 6SE7090-0XX84-0AH2:

• F023 / F024 — PROFIBUS communication fault: The AH2 module handles the DP interface. If the bus is healthy (check with a PROFIBUS tester) but the fault persists after a power cycle, the module’s DP ASIC is likely damaged — often from a voltage spike on the bus cable. Replace the module; do not attempt to repair the ASIC.
• F041 — Analog input signal loss: Broken AI channel on the AH2. Verify wiring first (shield continuity, correct terminal assignment per the MASTERDRIVES Compendium). If wiring is intact, the ADC on the module has failed.
• A078 — Option board not recognized: Seen after a firmware update or a hard power cycle. The drive’s parameter set may have lost the option board assignment. Re-run P060 (board detection routine) before condemning the hardware.
• Intermittent DO relay chatter: Relay contacts on the AH2 are rated for 2 A resistive. Inductive loads without suppression diodes will degrade contacts within months. If you are switching contactors directly from the AH2 relays, add RC snubbers or replace with an interposing relay.

Step-by-Step Replacement Procedure:

1. De-energize the drive and wait a minimum of 5 minutes for the DC bus to discharge below 50 V (verify with a meter — do not rely on the LED indicator alone).
2. Document all parameter settings using STARTER or DriveMonitor before removing the old module. Export the parameter file to a USB or laptop. You will need it.
3. Release the two captive screws on the option slot cover and slide the old 6SE7090-0XX84-0AH2 straight out. Note the connector orientation — it is keyed, but forced insertion in the wrong slot is possible on some chassis frames.
4. Inspect the slot connector on the drive backplane for bent pins or corrosion. Clean with isopropyl alcohol if necessary.
5. Insert the new module firmly until the connector seats fully. Secure the captive screws — finger-tight is not enough; vibration will work the module loose.
6. Power up the drive. Navigate to P060 and run the option board detection. The drive should auto-detect the AH2 and restore the I/O and PROFIBUS configuration from the stored parameter set.
7. Verify PROFIBUS node address (P918) matches your network configuration. The address is stored in the drive parameters, not on the module itself — no DIP switches on this variant.
8. Perform a full I/O check: toggle each digital input from the PLC, verify the drive’s diagnostic display reflects the correct state. Sweep each analog input across its range and confirm the drive reads correctly.
9. Re-enable the drive and run at low speed under no load before returning to full production.

Firmware Compatibility Note: The 6SE7090-0XX84-0AH2 is compatible with MASTERDRIVES firmware versions from V1.4 onward. If your drive is running firmware older than V1.4, the AH2 module will not be recognized. Contact us — we can advise on firmware upgrade paths.

Reliability in Harsh Conditions

The 6SE7090-0XX84-0AH2 was engineered for the environments where drives actually live — not climate-controlled server rooms, but steel mill floors, chemical plant MCC rooms, and outdoor pump stations in tropical climates.

The module’s PCB is conformally coated to IEC 60068-2-30 standards, providing resistance to condensation cycles that occur when a drive is powered down in a humid environment and then restarted cold. The PROFIBUS connector housing is rated for the mechanical stress of repeated cable insertions in maintenance-heavy applications. Relay contacts are silver-alloy for low-resistance switching even after extended idle periods — a common failure point on cheaper alternatives where contacts oxidize during seasonal shutdowns.

Vibration resistance is validated to IEC 60068-2-6: 10–58 Hz at 0.075 mm displacement, 58–500 Hz at 1 g. This covers the resonance frequencies of most pump and compressor bases. The module is also tested for shock per IEC 60068-2-27 (15 g, 11 ms half-sine), which matters in applications where the drive cabinet is mounted on mobile equipment or subject to hydraulic hammer.

All units we ship are tested under powered conditions before dispatch. We verify PROFIBUS communication, I/O channel functionality, and relay operation. A unit that passes our bench test will perform in your cabinet — we do not ship untested stock.

Global Express Logistics

Our Xiamen warehouse is located 15 minutes from Xiamen Gaoqi International Airport, which operates direct cargo flights to Frankfurt, Dubai, Singapore, and Los Angeles daily. This geography is not accidental — it is why we can offer transit times that most distributors cannot match.

Standard Express Routing:

• Southeast Asia (Singapore, Thailand, Vietnam, Indonesia): DHL Express, 1–2 business days. Customs clearance typically same-day for commercial invoices under USD 1,000.
• Middle East (UAE, Saudi Arabia, Qatar): FedEx International Priority, 2–3 business days. We prepare full HS code documentation (HS 8537.10) to prevent customs holds.
• Europe (Germany, Netherlands, Poland, UK): DHL Express, 3–4 business days. CE documentation included. EORI number required from buyer for EU imports.
• North America (USA, Canada, Mexico): FedEx Priority, 3–5 business days. We handle EEI filing for shipments over USD 2,500.
• Australia / New Zealand: DHL Express, 3–4 business days. DAWR biosecurity declaration included in documentation package.

Every shipment includes: commercial invoice with accurate HS code, packing list, certificate of origin (China), and — on request — a test report for the specific unit shipped. ESD-safe inner packaging, foam-lined outer carton, and moisture barrier bag are standard. We do not cut corners on packaging because we have seen what happens to electronics that arrive damaged after a 48-hour flight.

For orders placed before 14:00 CST, same-day dispatch is available on in-stock units. Contact us to confirm stock before placing your order if your timeline is critical.
