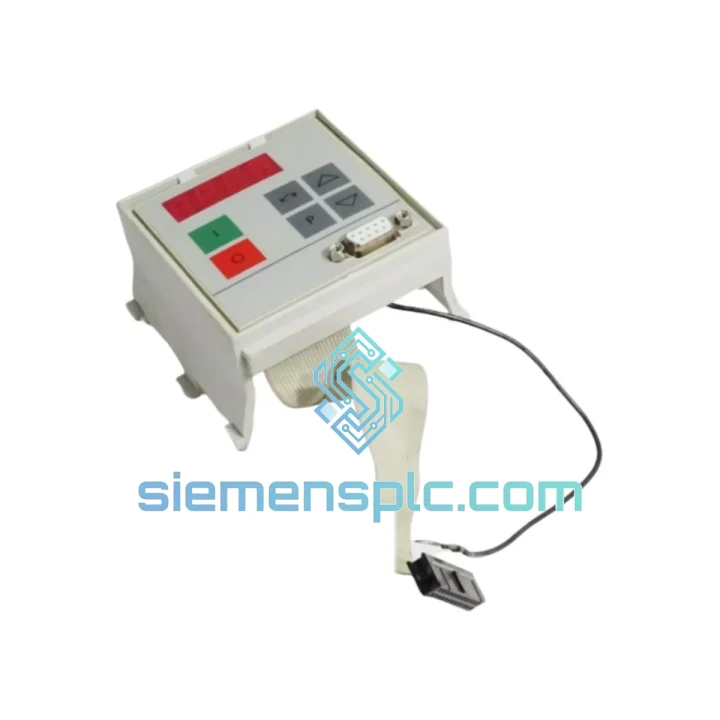

Siemens 6SE7090-0XX84-2FA0 Technology Board – SIMOVERT MASTERDRIVES

Siemens 6SE7090-0XX84-2FA0 T400 Technology Board: Deterministic Motion Orchestration for SIMOVERT MASTERDRIVES

The Siemens 6SE7090-0XX84-2FA0 is the T400 Technology Board — the highest-tier option board in the SIMOVERT MASTERDRIVES option architecture. It occupies the dedicated technology slot on MASTERDRIVES Compact PLUS, Compact, and chassis-format inverters, extending the base Control Unit with a fully independent DSP processing layer. Unlike firmware-resident technology functions, the T400 executes its own real-time task stack at a fixed 1 ms interpolation cycle, decoupled from the main drive control loop. This architectural separation ensures that cam profile computation, electronic gearbox ratio enforcement, and multi-axis synchronization tasks do not compete with the core flux and torque regulation cycles — a critical design requirement in high-dynamic web-tension and register-control applications.

The board interfaces with the drive backplane via a proprietary parallel bus, exchanging process data with the Control Unit at every PWM cycle. No external power supply is required; the T400 draws regulated 5 V and 15 V rails directly from the drive’s internal power distribution board. The onboard DSP — a fixed-point processor operating at 40 MHz — handles all technology function computation, while a dedicated SRAM block (256 KB) stores cam table data, synchronization setpoints, and diagnostic buffers independently of the drive’s main memory map.

Encoder feedback is processed through two independent incremental encoder interfaces (HTL/TTL, 5 V differential), supporting master-slave synchronization topologies where the T400 reads a physical master encoder and enforces a programmable gear ratio or cam relationship on the drive output. The encoder inputs are hardware-debounced and optically isolated to 500 V, preventing ground-loop interference from corrupting position data in electrically noisy machine environments.

The T400 is parameterized and commissioned via SIEMENS DriveMonitor or STARTER software using the standard USS/PROFIBUS parameter channel. All technology function parameters reside in the P-parameter space (P700–P999 range on the T400 sub-address), accessible without interrupting drive operation. This allows live adjustment of cam profiles, gear ratios, and synchronization windows during machine setup — a significant productivity advantage over systems requiring drive shutdown for parameter changes.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The T400’s most significant hardware design decision is the dual-processor architecture: the drive’s main Control Unit retains exclusive ownership of the flux model, current regulators, and PWM generation, while the T400’s DSP owns all technology-layer computation. Communication between the two processors occurs via a shared dual-port RAM (DPRAM) block on the backplane bus, with semaphore-controlled access to prevent data collision. This arrangement eliminates the latency jitter that would result from a single-processor system time-sharing between drive control and technology functions.

EMC Design: The T400 PCB uses a six-layer stackup with dedicated ground planes separating the digital logic layer from the analog signal layer. All I/O connectors are filtered with common-mode chokes and transient voltage suppressors (TVS) rated at 600 V peak. The encoder input stage uses a differential line receiver (RS-422 compatible) with a hardware low-pass filter at 300 kHz, rejecting high-frequency switching noise from the drive’s IGBT stage without attenuating the encoder signal bandwidth. The 500 V optical isolation on encoder channels breaks ground loops that are endemic in multi-drive machine configurations where encoder cables share cable trays with motor power cables.

Cam Controller Implementation: The cam profile is stored as a lookup table in the T400’s SRAM, with linear interpolation between table points executed at every 1 ms DSP cycle. The table supports up to 1024 points per cam profile, with a position resolution of 0.001° (encoder-dependent). The cam output is a velocity setpoint fed into the drive’s speed controller via the DPRAM interface — the T400 does not bypass the drive’s closed-loop speed regulation, preserving torque limitation and motor protection functions.

Synchronization Logic: The electronic gearbox function implements a phase-locked loop (PLL) in software, comparing the master encoder position (read at 1 ms) against the slave drive’s actual position (read from the drive’s encoder feedback via DPRAM). The PLL output is a position error correction term added to the velocity feedforward, achieving synchronization accuracy of ±1 encoder pulse under steady-state conditions. Gear ratio is a 32-bit fixed-point value, supporting ratios from 1:32767 to 32767:1 with sub-ppm resolution.

System Integration Benefits

• Independent task scheduling: The T400’s 1 ms DSP cycle runs asynchronously to the drive’s PWM cycle (typically 3.2 kHz or 6.4 kHz), preventing technology function load from degrading current regulation bandwidth.
• Zero-wiring I/O expansion: The 8 DI / 4 DO / 2 AI / 2 AO channels are available without external I/O modules, reducing panel wiring complexity and eliminating additional power supply requirements for I/O hardware.
• Live parameter access: All T400 parameters are accessible via the standard MASTERDRIVES parameter channel (USS or PROFIBUS) without drive shutdown, enabling cam profile updates and gear ratio changes during machine setup or product changeover.
• Deterministic synchronization latency: The PLL-based synchronization algorithm delivers a worst-case phase correction latency of 2 ms (one DSP cycle + one DPRAM exchange), suitable for register-critical applications such as printing and laminating.
• Diagnostic transparency: The T400 exposes 32 diagnostic parameters (r-parameters) covering encoder pulse counts, synchronization error, cam position, and I/O status — all readable via DriveMonitor without interrupting production.
• Fault isolation: T400 hardware faults (encoder wire break, I/O short-circuit) generate drive fault codes in the F-parameter space, visible on the drive’s operator panel and via PROFIBUS without requiring separate diagnostic hardware.
• Scalable topology: Multiple MASTERDRIVES units, each fitted with a T400, can be synchronized to a single master encoder via PROFIBUS setpoint distribution, enabling line-shaft replacement architectures with up to 32 synchronized axes.
• Firmware-independent operation: The T400 firmware is stored in onboard Flash and is updated independently of the drive Control Unit firmware, allowing technology function upgrades without drive firmware re-commissioning.

Quality Assurance & Global Logistics

Every 6SE7090-0XX84-2FA0 unit supplied by siemensplc.com is sourced through verified channels with full batch traceability. Prior to dispatch, each board undergoes visual inspection for PCB integrity, connector condition, and component seating. Units are shipped in anti-static ESD bags within rigid foam-lined cartons, conforming to IEC 61340-5-1 ESD packaging requirements. Serial number and date code are recorded against each order for warranty tracking.

Logistics operations are based in Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for every international shipment. HS Code 8537.10 applies for customs classification. Typical transit times: Southeast Asia 2–4 days, Europe 3–5 days, North America 4–6 days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

A 12-month warranty covers manufacturing defects from the date of dispatch. Warranty claims are processed with a target response of 48 hours. Replacement units are dispatched before return of the defective unit for customers with established accounts, minimizing machine downtime.
