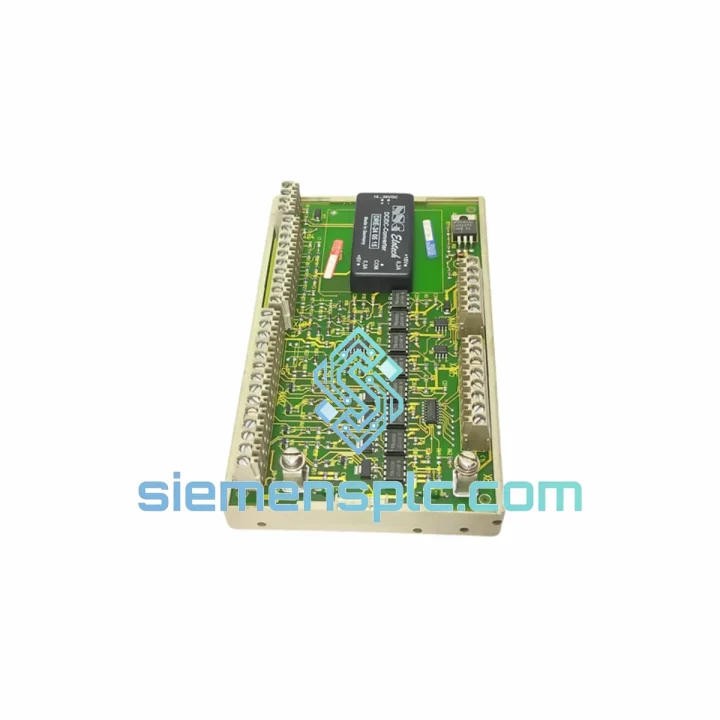

Siemens 6SE7090-0XX84-3DB0 Interface Board

Siemens 6SE7090-0XX84-3DB0 Interface Board — Stop the Clock on Your Downtime

Every minute a MASTERDRIVES unit sits dead on the floor, your line is bleeding money. Whether it’s a steel mill coiler, a paper machine section drive, or a mining conveyor that just tripped offline, the 6SE7090-0XX84-3DB0 interface board is almost always the first board-level suspect when option board communication collapses. We stock it. We ship it today. That’s the only conversation that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Spent 10 years on-site pulling boards out of MASTERDRIVES units under pressure. Here’s what actually happens in the field and what you need to know before you touch anything:

Fault Codes That Point Here First

• F035 — Option board not recognized. Drive powers up, CU initializes, then immediately faults because it can’t handshake with the CBP2 or SBP board. Nine times out of ten, the interface board connector has corroded or the board itself has failed. Reseat first. If F035 persists after a clean reseat with the drive fully de-energized, swap the 6SE7090-0XX84-3DB0.
• F041 — Communication error to option board mid-run. This one is nastier because it can be intermittent. Vibration-induced connector fretting is the usual culprit on older chassis units. If you’re seeing F041 only under load or after thermal cycling, the interface board’s edge connector is the weak point.
• A078 — Option board warning, non-tripping. Don’t ignore this. It’s the drive telling you the interface layer is degrading. A078 today becomes F035 at 2 AM on a Sunday.
• F023 / F024 — Encoder feedback loss on MC variants. If your SBP encoder board is seated correctly and the encoder itself checks out, the signal path through the interface board is the next suspect.

Replacement Procedure — Field-Tested Steps

1. Isolate and lock out the drive. Verify DC bus voltage is below 50 V with a calibrated meter before opening the cabinet. MASTERDRIVES chassis units hold charge longer than you expect.
2. Document your parameter set. Connect DriveMonitor or STARTER and upload the complete parameter file before touching any hardware. If the CU board loses its RAM backup during the swap, you need that file.
3. Remove the option board (CBP2, SBP, T400, etc.) first. The interface board is underneath. Note the orientation — there is a keying feature but it’s possible to force it wrong on worn connectors.
4. Extract the 6SE7090-0XX84-3DB0 by releasing the two retention clips. Do not lever against the PCB. Use the extraction tabs if present.
5. Inspect the replacement board’s edge connector under good lighting before insertion. Any bent pins need to be straightened with a dental pick before seating.
6. Seat the new board firmly until both clips engage. Reinstall the option board. Power up with the option board disconnected first — confirm no F035 before reconnecting the option board.
7. Reconnect the option board. Power up again. Confirm P918 (option board type) reads correctly in the parameter list. If it reads 0 or an unexpected value, the interface board is not making full contact.
8. Restore your parameter file. Run a no-load test before reconnecting the mechanical load.

Configuration Checks After Swap

• No DIP switches or address settings on the 6SE7090-0XX84-3DB0 itself — addressing is handled by the option board (e.g., PROFIBUS node address on CBP2 via P918.x parameters).
• Firmware on the CU board does not need to be reflashed for an interface board swap — this is a passive signal routing board, not a programmable component.
• If using a T400 technology board, re-verify the T400’s own parameter set after the swap. The T400 can lose its application program if power sequencing is incorrect during the changeout.
• On MC variants with SBP encoder boards: re-run the encoder offset calibration (P1734) after any interface board replacement to rule out phase shift artifacts introduced by connector contact resistance differences.

Reliability in Harsh Conditions

The 6SE7090-0XX84-3DB0 was designed for the environments where MASTERDRIVES actually live — not a clean server room. Siemens engineered this board to operate inside drive cabinets that see the full spectrum of industrial abuse:

• Vibration: MASTERDRIVES chassis units are routinely installed on mezzanine floors above rolling mills and on ship decks. The interface board’s PCB is conformal-coated and the connector system uses positive-retention clips specifically to resist vibration-induced fretting. Units we supply are inspected for any evidence of micro-crack propagation in solder joints before dispatch.
• Thermal Cycling: Drives in cement plants and foundries see ambient temperatures that swing 40 °C between startup and shutdown. The board’s component selection — particularly the signal conditioning ICs — is rated for the full 0–55 °C operating range with derating curves that account for internal cabinet temperature rise above ambient.
• Humidity and Condensation: Paper mills and water treatment plants push humidity to the edge of the 95% RH spec. The conformal coating on the PCB provides the primary defense. We reject any board showing evidence of corrosion on the copper traces or white residue on the connector pins — both indicators of past condensation exposure that compromises long-term reliability.
• Electromagnetic Interference: Inside a MASTERDRIVES cabinet, the interface board operates in close proximity to the PWM switching section. Siemens’ internal shielding and PCB ground plane design attenuate conducted and radiated interference to levels that keep the option board communication stable even during high-current switching transients.

Every board we ship has been powered up in a test rig, confirmed fault-free, and packed in ESD-safe anti-static bags with foam cushioning. It arrives ready to install, not ready to be tested by you on your dime.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected export hubs on the coast. When you confirm your order, here’s exactly what happens:

• Same-Day Dispatch: Orders confirmed before 15:00 CST ship the same business day. Orders after 15:00 ship the following morning. No exceptions, no excuses.
• Carrier Selection: DHL Express and FedEx International Priority are our primary carriers. We select based on your destination and current transit time performance — whichever gets it to you faster. TNT and UPS are available on request.
• Transit Times (from Xiamen): Southeast Asia 1–2 days | Europe 2–3 days | Middle East 2–3 days | North America 3–4 days | South America / Africa 4–6 days. These are business day estimates under normal customs clearance conditions.
• Export Documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. HS code 8537.10 declared. For destinations requiring additional documentation (CE declaration, material safety data), contact us before order placement.
• Customs Clearance: We declare accurate values and descriptions. We do not under-declare for customs purposes. This protects you from seizure risk and protects the shipment’s insurance coverage.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided. We monitor shipments proactively — if a customs hold occurs, we contact you immediately with the documentation needed to clear it.
• Emergency Freight: For genuine production-down situations, contact us directly on WhatsApp. We can arrange hand-carry courier services to certain destinations when standard express is not fast enough.
