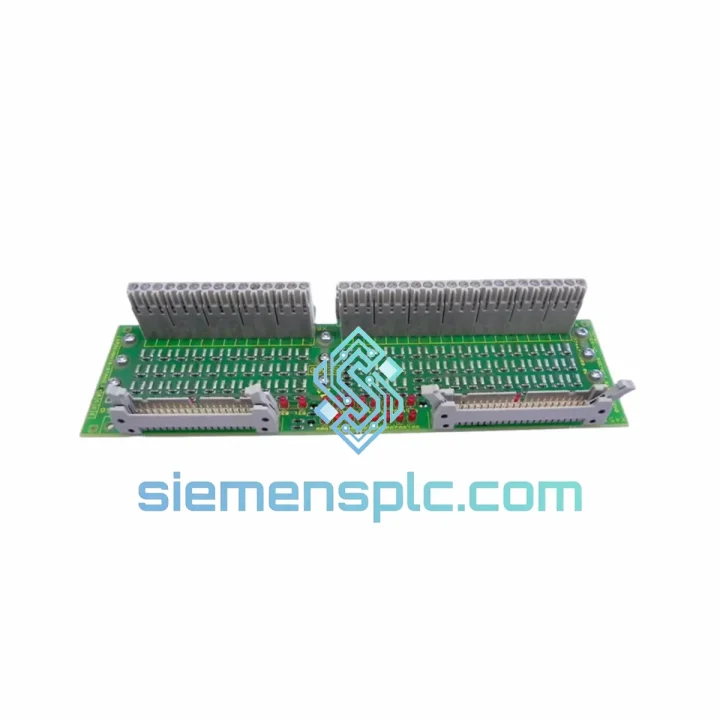

Siemens 6SE7090-0XX84-3EH0 PROFIBUS Communication Board – CBP2 SIMOVERT MASTERDRIVES

Siemens 6SE7090-0XX84-3EH0 CBP2: PROFIBUS-DP Fieldbus Interface for SIMOVERT MASTERDRIVES 6SE70 Vector and Motion Control Drives

The 6SE7090-0XX84-3EH0 is the second-generation Communication Board PROFIBUS (CBP2) designed exclusively for the Siemens SIMOVERT MASTERDRIVES 6SE70 platform. It occupies the drive’s dedicated option slot and establishes a deterministic, high-speed PROFIBUS-DP link between the drive’s internal process data interface and an external DP Class 1 master — typically a SIMATIC S7-300/400/1500 PLC or any IEC 61158 Type 3 compliant controller. The board supports both DP-V0 cyclic process data exchange and DP-V1 acyclic parameter channel access, enabling full drive parameterization and real-time control over a single PROFIBUS segment without any supplementary wiring or protocol gateway.

Within a closed-loop vector control architecture, the CBP2 receives speed references, torque limits, and control words from the DP master at each PROFIBUS cycle and writes them directly into the drive’s PKW/PZD (Parameter Identification Value / Process Data) interface. The return channel carries actual speed feedback, output current, DC-link voltage, status word, and active fault codes back to the master within the same bus cycle. This tight coupling between the fieldbus layer and the drive’s 125 µs current control interrupt makes the 6SE7090-0XX84-3EH0 the correct interface choice for applications where setpoint latency and diagnostic transparency are engineering constraints, not afterthoughts.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CBP2 is built around the Siemens SPC3 (Serial Protocol Controller 3) ASIC, a purpose-designed silicon device that handles the complete PROFIBUS-DP protocol stack — token-ring arbitration, frame assembly and disassembly, CRC-16 generation and verification, and station address management — entirely in hardware. This is not a software stack running on a shared microcontroller; it is a dedicated state machine with its own internal RAM buffers and interrupt outputs, operating independently of the drive’s main DSP. The consequence is that PROFIBUS protocol processing imposes zero computational load on the drive’s 125 µs current control interrupt, preserving the determinism of the vector control loop regardless of bus traffic volume or DP-V1 acyclic request frequency.

The SPC3 connects to the drive’s internal dual-port RAM (DPRAM) via a 16-bit parallel bus. At the end of each PROFIBUS cycle, the SPC3 latches received PZD data into the DPRAM output buffer and simultaneously reads the drive’s response PZD from the input buffer. The drive firmware accesses these buffers at its 1 ms task interrupt boundary. For a 2 ms PROFIBUS cycle, worst-case setpoint propagation latency from DP master output to drive internal setpoint register is 3 ms — one PROFIBUS cycle plus one drive task period. This figure is deterministic and bounded, which is the property that matters in coordinated multi-drive applications.

EMC hardening on the CBP2 follows Siemens’ option board standard. The DB9 connector shell is mechanically and electrically bonded to the board’s ground plane, which connects to the drive chassis through the option slot mounting hardware. This creates a continuous low-impedance RF return path from the PROFIBUS cable shield to the drive’s PE terminal, suppressing common-mode noise without requiring additional shielding measures at the installation level. Both RS-485 signal lines are protected by transient voltage suppression (TVS) diodes rated to clamp ±1 kV (8/20 µs impulse waveform), providing protection against cable-induced surges in environments with high motor switching frequency or external lightning exposure.

The DP-V1 acyclic channel uses the SPC3’s dedicated interrupt-driven message buffer, which is physically separate from the cyclic PZD buffer. A DP-V1 read or write request initiated by the PLC (e.g., via SIMATIC S7 SFB52 READ or SFB53 WRITE) is processed in the SPC3’s acyclic buffer without touching the cyclic PZD path. Both channels operate concurrently with independent buffer management. This is a documented architectural improvement over the first-generation CBP, which serialized acyclic requests through the same buffer as cyclic data and introduced measurable PZD jitter during parameter access operations — a behavior that caused intermittent speed reference errors in high-cycle applications.

System Integration Benefits

• Automatic Baud Rate Detection: The SPC3 ASIC synchronizes to the active PROFIBUS baud rate within 10 bus cycles of power-up across the full range from 9.6 kbps to 12 Mbps. No DIP switch or parameter setting for baud rate is required, reducing commissioning steps and eliminating a common source of configuration error in multi-vendor networks.
• Native GSD File Support: The module is supplied with a validated GSD (Generic Station Description) file that is recognized natively by SIMATIC STEP 7, TIA Portal, and all major third-party DP configuration tools. Hardware catalog integration requires no manual slave configuration or custom GSD editing.
• Concurrent Cyclic and Acyclic Operation: DP-V0 process data exchange and DP-V1 parameter access operate on independent SPC3 buffer paths. PLC-initiated parameter reads — such as reading motor winding temperature via P949 or fault history via P947 — do not introduce latency or jitter into the speed reference path.
• Single-Cycle Fault Visibility: Drive fault status (ZSW bit 3) and the active fault code register are mapped to PZD return words and transmitted to the DP master within one PROFIBUS cycle of fault detection. This enables PLC-level fault reaction logic — such as controlled ramp-down of adjacent drives — without polling delays.
• Drop-In Replacement for CBP (First Generation): The CBP2 occupies the same physical option slot and uses the same P700-series parameter set as the original CBP. In most applications, replacement requires no drive re-parameterization, reducing maintenance downtime to the time required for physical board swap and PROFIBUS address verification.
• Equidistant Mode (Tset) Compatibility: The module supports PROFIBUS equidistant bus cycle mode, in which the DP master synchronizes all slave setpoint updates to a fixed clock period. This is a prerequisite for multi-axis position synchronization in motion control applications where inter-drive phase error must be bounded to a single bus cycle.
• STARTER and DriveMonitor Online Access: When the DP master is a SIMATIC S7 CPU with STARTER or DriveMonitor installed, the CBP2 enables full online drive parameterization, oscilloscope trace recording, and fault history readout directly over the PROFIBUS network. No separate RS-232 or USS service connection is required during commissioning or maintenance.
• Scalable Network Architecture: Up to 125 PROFIBUS slave addresses per segment are supported (with repeaters for extended cable runs). Each CBP2-equipped drive is independently addressable, supporting large coordinated drive systems — such as multi-stand rolling mills or multi-zone conveyor networks — on a single DP segment without topology changes.

Quality Assurance & Global Logistics

All 6SE7090-0XX84-3EH0 units supplied through siemensplc.com are genuine Siemens original equipment, sourced through established industrial distribution channels. Each unit processed at our Xiamen facility undergoes a structured pre-shipment inspection before dispatch:

• Label and Traceability Verification: The Siemens order number, hardware revision code, and manufacturing date code on the module label are cross-referenced against Siemens product documentation to confirm authenticity and production batch traceability.
• PCB Physical Inspection: Board surface, solder joint quality, DB9 connector pin condition, and component placement are examined under magnification for physical damage, oxidation, pin deformation, or counterfeit indicators including non-standard PCB silkscreen or incorrect component markings.
• Functional Enumeration Check: Where test infrastructure is available, the CBP2 is powered via a MASTERDRIVES option slot simulator and PROFIBUS enumeration is confirmed with a DP master, verifying that the SPC3 ASIC responds correctly to the GSD-defined I/O configuration and returns a valid station diagnostic response.
• ESD-Safe Packaging: Each module is individually sealed in an anti-static bag (ANSI/ESD S541 compliant), placed in a foam-lined carton, and labeled with part number and serial reference to support receiving inspection at the customer’s facility.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. HS code 8537.10 is applied for customs classification. DDP, DAP, and EXW Incoterms are all supported based on customer preference.

Shipments originate from Xiamen, China via Xiamen Gaoqi International Airport and Xiamen Port. International express delivery via DHL, FedEx, or UPS reaches destinations in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days. Sea freight consolidation is available for volume orders. All shipments carry end-to-end tracking from dispatch through delivery confirmation. A 12-month warranty against manufacturing defects applies from the date of shipment, with replacement dispatch within 5 business days of confirmed defect.
